SDA116T/SDA126T is RION's CANopen output dynamic and static dual-mode tilt sensor for industrial field control, integrating dynamic and static dual-mode combination algorithm. According to different working conditions, the product automatically switches between dynamic and static measurement modes. High-precision measurement of products is guaranteed in a variety of work environments. When the working environment is in static mode, the inclinometer will adopt a static algorithm inside. When the working environment is in dynamic mode, the dynamic algorithm will be adopted inside the inclinometer to maintain the static high precision and ensure the dynamic high-precision measurement of the object. The industry standard isolated CAN transceiver with built-in high-precision A/D differential converter, through the 5th-order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane.
the temperature drift of the sensor can be corrected according to the change of the built-in temperature sensor to ensure high repeatability of the product under low temperature and high temperature environment. The output response frequency standard can reach 100Hz. If you need a higher response frequency, we can customize it according to the user. The products are truly industrial grade products with reliable and stable performance, good expandability and a variety of outputs to choose from. Suitable for a variety of harsh industrial control environments.

Feature

●dynamic-static inclinometer

●range: ±1~±90°

●output: CANopen
●DC 9~36V power supply

●working temp. -40~+85℃

●resolution 0.01°
●IP67

●anti-vibration >2000g

●direct lead wire
●size:72.62×42×23.1mm

Horizontal installation: be parallel between two surfaces:

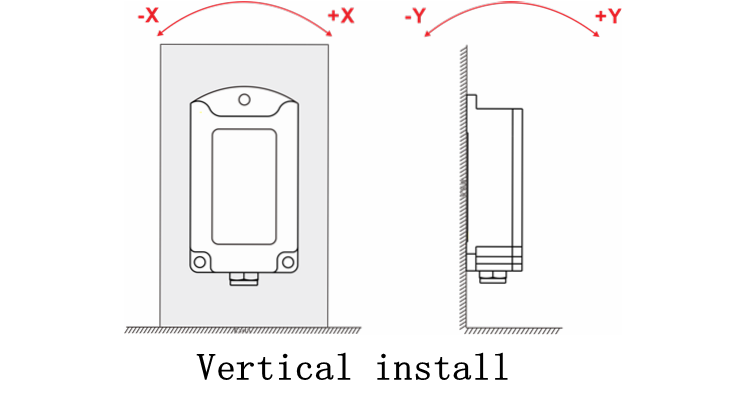

Note: horizontal installation is factory default, if need vertical installation, please confirm
with sales.

Q1. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity and stock of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
