    0.02s Modbus Tilt Sensor Inclinometer HCA716S RION Inclination Sensor

    Ask Lasest Price
    Model Number : HCA716S-60
    Brand Name : RION
    Price : $250.00/Pieces 1-9 Pieces
    Payment Terms : T/T, PayPal
    Supply Ability : 5000/month
    Delivery Time : 10 days for sample order
    Certification : CE
    • Product Details
    • Company Profile

    0.02s Modbus Tilt Sensor Inclinometer HCA716S RION Inclination Sensor

    infrastructure angle sensor high accuracy inclination sensor low price
    0.02s Modbus Tilt Sensor Inclinometer HCA716S RION Inclination Sensor
    infrastructure angle sensor high accuracy inclination sensor low price

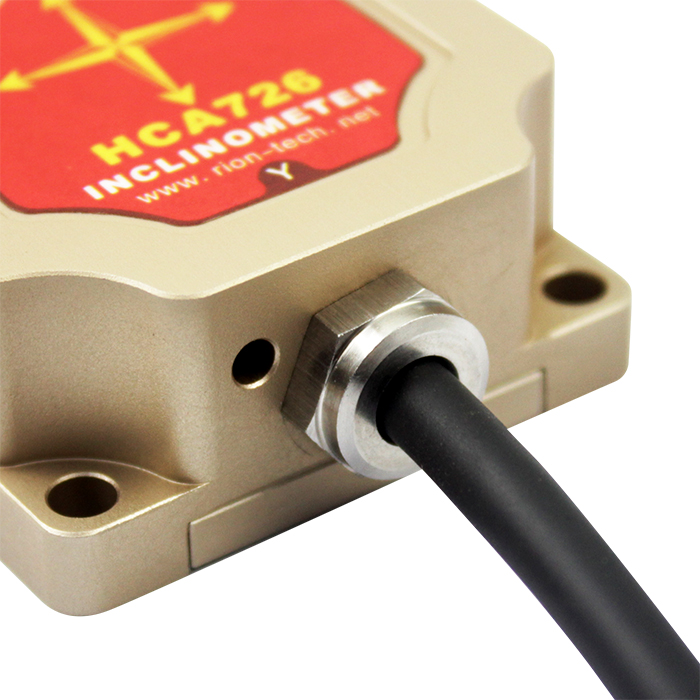

    HCA716S / HCA726S is a small volume high-precision single / dual-axis inclinometer developed by RION Technology for industrial field control. It adopts RS485 / RS232 serial access interface. Built-in high-precision 24bit A / D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. The product integrates the latest technology main MEMS tilting unit, the measuring range up to ± 180 °, and the full-scale accuracy is 0.01 °, which can easily achieve dual-axis and single-axis tilt measurement. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. It is suitable for the application of monitoring of ancient buildings, dilapidated buildings, ancient walls, etc., and large-scale high-precision measurement in industrial sites.
    APPLICATION
    ★ Monitoring of ancient buildings and dilapidated buildings ★ Monitoring of bridges and large lands
    ★ Leveling of construction vehicles ★ Mining machinery, oil drilling equipment
    ★ Medical equipment angle control ★ Railway gauge ruler and gauge leveling
    0.02s Modbus Tilt Sensor Inclinometer HCA716S RION Inclination Sensor
    Specification
    HCA716&HCA726
    PARAMETERS
    UNIT
    Measuring range
    ±15
    ±45
    ±60
    ±180
    °
    Measuring axis
    X,Y
    X,Y
    X,Y
    Vertical X axis
    Resolution
    0.001
    0.001
    0.003
    0.005
    °
    Absolute accuracy
    ±0.008
    ±0.01
    ±0.01
    ±0.01
    ° RMS

    Long term stability
    <0.02
    <0.02
    <0.02
    <0.02
    °
    Zero Temp.coefficient
    ±0.0005
    ±0.0005
    ±0.0005
    ±0.0005
    °/℃
    Sensitivity temp-coefficient
    ≤0.01
    ≤0.01
    ≤0.01
    ≤0.01
    S
    Power on time
    0.5
    0.5
    0.5
    0.5
    S
    Response frequency
    >20HZ
    Interface
    RS232 or RS485 (MODBUS RTU)
    Insulation Resistance
    ≥100MΩ
    Anti-vibration
    10grms,10~1000Hz
    Protection grade
    IP67
    Cables
    Standard configuration: 1m length, wear-resistant,oil-proof, wide temperature, shielded cable4*0.2mm2
    Weight
    90g(without cable)
    Dimension
    0.02s Modbus Tilt Sensor Inclinometer HCA716S RION Inclination Sensor
    Details Images
    0.02s Modbus Tilt Sensor Inclinometer HCA716S RION Inclination Sensor
    0.02s Modbus Tilt Sensor Inclinometer HCA716S RION Inclination Sensor
    0.02s Modbus Tilt Sensor Inclinometer HCA716S RION Inclination Sensor
