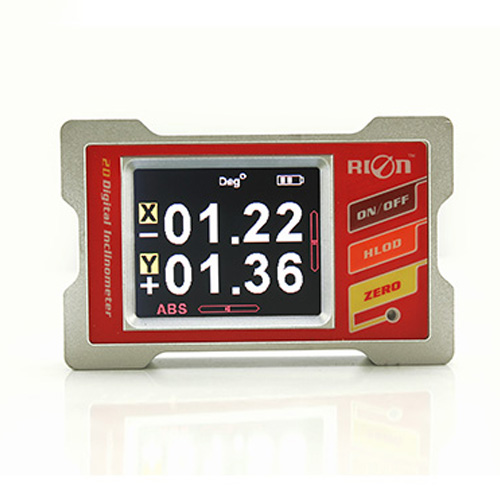

Super Precise Digital Inclinometer, 0.001 Accuracy Inclinometer,
Alarm Inclinometer
Product Description
*Single /Dual axis Digital Inclinometer
*Developed by RION company based on high precise angle measurement
platform
*Built-in 32 bit microprocessor and collocation 32 bit high
precision analog-to-digital converter
*Can highly subdivision sampling
*Highest level accuracy of 0.001 degrees
*Resolution 0.0002 degrees
*Built-in large capacity rechargeable battery
*Batterry continuous working time up to 12 hours
*Product integrates USB serial interface
*Real-time transmission of current measurement results
*Read the measurement data level of internal storage
*Data playback and analysis can be carried out on site chart
*Best instrument and measurement of high precision adjustable
platform
Key Features
Best accuracy:<0.001° Repeatability:0.002° Angle resolution:0.0002° Maximum measuring range:±30° User can set the alarm value by himself Data store function Absolute/Relative measurement can switch Both sides and bottom can measure Double benchmark strong magnet installation Working Temperature : -10°~ +70℃ Auto-angle interleaved compensation function Auto temperature drift compensation User can calibrate ZERO by himself Built-in rechargeable industry batteries Night vision fours colors screen IP54 protection class °/mm/m Dual units switch function Filter frequency optional Three kinds of measurement mode selectable (radian, angle, mm)
Application
Building construction Automobile four-wheel testing Road slope Machinery installation Piping installation Industrial platform Turntable testing Pan unit angle detection Production jig Medical instruments
Specification
DMI850
PARAMETER
unit
Measurement Range
±30
°
Measuring Axis
Single-axis
Best Accuracy
<0.002 (＜5°),<0.003 (5°-30°)
°(RMS)
Resolution
0.0005
°
Measurement Mode
Two modes can be set: degree, mm / m
/
Lcd
64 color true color luminous display
/
Lcd Visible Size
L60*W45
mm
Operating Temperature
-10°～ +70℃
°/℃
Working Humidity
85
%RH
Power Supply
2A No.5 battery
/
Battery Continuous Working Time
6
h
Anti-Vibration
10g @ 11ms, triaxial and same (half sine wave)
/
Impact Resistance
10grms,10～100Hz
/
Weight
1200
g
Protect Class
IP54
/
Material
Anodizing of aluminum alloy
/
Size
L140*W140*H45mm
mm
Inclinometer series with different accuracy and resolution
