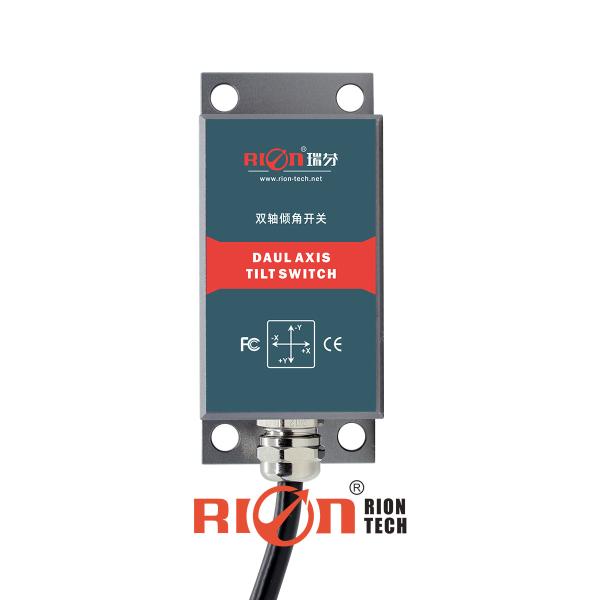

    SCA120T VOLTAGE TYPE DUAL AXIS INCLINOMETER ±180° TILT SENSOR WITH 0–5V OUTPUT

    Ask Lasest Price
    Brand Name : RION
    Model Number : TL735-232
    Certification : CE
    Price : 110
    Payment Terms : T/T,PAYPA
    Supply Ability : 5000/month
    Delivery Time : 5 days for samples
    • Product Details
    • Company Profile

    SCA120T VOLTAGE TYPE DUAL AXIS INCLINOMETER ±180° TILT SENSOR WITH 0–5V OUTPUT

    SCA120T VOLTAGE TYPE DUAL AXIS INCLINOMETER ±180° TILT SENSOR WITH 0–5V OUTPUT


    Analog Voltage Output | MEMS Technology | Industrial-Grade Reliability

    The SCA110T/SCA120T is a high-performance tilt sensor designed to measure inclination angles relative to the horizontal plane with exceptional accuracy. Utilizing MEMS-based micro-electromechanical pendulum technology, it converts static gravity field changes into analog voltage outputs (0–5V), enabling real-time attitude monitoring for industrial and safety-critical applications.

    Key Features

    • Dual-Axis Measurement (SCA120T) / Single-Axis (SCA110T)

    • Wide Measuring Range: ±1° to ±180° (customizable)

    • High Precision: Resolution up to 0.01°

    • Robust Design:

      • IP67 protection (dustproof/waterproof)

      • Extreme Temperature Tolerance: –40°C to +85°C

      • Anti-Vibration >2000g | EMI-Resistant

    • Wide Voltage Input: 9–36V DC

    • Compact Size: 90×40×26mm (easy integration)

    Applications

    • Heavy Machinery: Leveling for construction vehicles, mining equipment, and oil rigs.

    • Infrastructure Monitoring: Bridge deflection, dam tilt, and shield tunneling alignment.

    • Safety Systems: High-altitude platform stabilization, anti-tip protection.

    • Precision Control: Medical equipment, geological instruments, and pipe jacking.

    • Industrial Automation: Conveyor belt tilt correction, robotic arm positioning.

    Why Choose SCA110T/SCA120T?

    • Non-Contact Measurement: Long lifespan, no mechanical wear.

    • Plug-and-Play: Voltage output simplifies integration with PLCs, SCADA, or IoT systems.

    • Reliable in Harsh Environments: Ideal for dust, moisture, and high-vibration scenarios.

    Technical Support: Customizable ranges, OEM/ODM services available.


    Optimization Highlights

    1. Structure: Clear headings for quick scanning (Features/Applications/Benefits).

    2. Technical Depth: Emphasizes MEMS technology and rugged specs (IP67, 2000g).

    3. Application Focus: Links features to real-world use cases (e.g., mining, bridges).

    4. Marketing Edge: "Why Choose" section highlights competitive advantages.

    5. Conciseness: Removes redundancy while preserving critical details.


    PARAMETERS


    SCA110/SCA120T

    CONDITION PARAMETER

    UNIT

    SCA120T VOLTAGE TYPE DUAL AXIS INCLINOMETER ±180° TILT SENSOR WITH 0–5V OUTPUTMeasure range

    ±10

    ±30

    ±60

    ±90

    ±180

    °

    Measure axis

    X/XY

    X/XY

    X/XY

    X/XY

    X

    Axis

    Zero output

    output

    2.5

    2.5

    2.5

    2.5

    2.5

    V

    Resolution

    0.01

    0.01

    0.02

    0.03

    0.05

    °

    Measure accuracy

    @25℃

    0.03

    0.05

    0.06

    0.08

    0.1

    °

    ZeroTemp.coefficient

    -40~85℃

    ±0.006

    ±0.006

    ±0.006

    ±0.006

    ±0.006

    °/℃

    Sensitivity temp-coeffi

    -40~85℃

    ≤100

    ≤100

    ≤100

    ≤100

    ≤100

    ppm/℃

    Power-on start time

    0.5

    0.5

    0.5

    0.5

    0.5

    S

    Response frequency

    20Hz

    EMC

    According to EN61000GBT17626c

    MTBF

    98000 hours/times

    Insulation Resistance

    ≥100

    Impact resistance

    100g@11ms,3 Axis Direction (Half Sinusoid)

    Anti-vibration

    10grms,10~1000Hz

    Protection grade

    IP67

    Cables

    Standard as 1-meter length, wear-resistant, oil-proof, wide temperature, shielded cable 4 * 0.4mm2

    Weight

    ≤220g (including 1 meter cable)


    ▶ELECTRICAL PARAMETERS

    SCA120T VOLTAGE TYPE DUAL AXIS INCLINOMETER ±180° TILT SENSOR WITH 0–5V OUTPUTPARAMETER

    CONDITION

    MIN

    TYPICAL

    MAX

    UNIT

    Power supply

    Standard

    9

    12

    24

    36

    V

    Optional

    5

    V

    Working current

    30

    mA

    Output overload

    Resistive

    10

    kΩ

    Capacitive

    20

    nF

    Working temp

    -40

    +85

    Store temp.

    -40

    +85
