    DMI850 Digital Inclinometer High Accuracy Full Range with Shock Resistance

    Ask Lasest Price
    Brand Name : RION
    Model Number : DMI850
    Price : $2189
    Certification : CE, FCC, ROHS
    Payment Terms : T/T, , Paypal
    Supply Ability : 3000 PCS/MONTH
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

    DMI850 Digital Inclinometer High Accuracy Full Range with Shock Resistance

    High Accuracy Digital Inclinometer Zero Point Drift ±0.005°/C Data Store Function

    Product Description:

    DMI850 is one Single axis Digital Inclinometer developed by RION TECHNOLOGY based on high precise angle measurement platform, it adopts the quartz pendulum slice of the earth's gravity induction component to solve the object level tilt angle. The built-in 32 bit microprocessor and collocation 32 bit high precision analog-to-digital converter, can highly subdivision sampling for the front weak current and signal ratio of inclination, can meet the highest level accuracy of 0.002°, the resolution is up to 0.0005°. It can perform on-site data playback and chart analysis, and is the best instrument for high-precision platform leveling and measurement.

    Features:

    ★ Best accuracy:<0.002°

    ★ angular resolution:0.0005°

    ★ IP54 protection class

    ★ Maximum measurement range:±30°

    ★ Absolute / relative measurement switchable

    ★ data storage function

    ★ Both side and bottom can be measured

    ★ working temperature -10℃~ +70℃

    ★ Double benchmark strong magnet installation

    ★ Alarm angle can be set

    ★ Angle or length double unit switch

    ★ Night vision four color screen

    ★ 2 kinds of measurement mode selectable

    ★ Automatic angle interpolation compensation function

    ★ Customers can calibrate the zero point by themselves



    APPLICATION RANGE:

    ★ Building construction

    ★ Mechanical installation

    ★ Pipe installation
    ★ Industrial platform

    ★ Road slope

    ★ Pan-tilt angle detection
    ★ Turntable detection

    ★ Production fixture

    ★ Medical instruments
    ★ Automotive four-wheel inspection

    SPECIFICATIONS:

    DMI850 Digital Inclinometer High Accuracy Full Range with Shock ResistanceDMI850PARAMETERunit
    Measurement Range±30°
    Measuring AxisSingle-axis
    Best Accuracy<0.002 (<5°),<0.003 (5°-30°)°(RMS)
    Resolution0.0005°
    Measurement ModeTwo modes can be set: degree, mm / m/
    Lcd64 color true color luminous display/
    Lcd Visible SizeL60*W45mm
    Operating Temperature-10°~ +70℃°/℃
    Working Humidity85%RH
    Power Supply2 Pcs AA battery/
    Battery Continuous Working Time6h
    Anti-Vibration10g @ 11ms, triaxial and same (half sine wave)/
    Impact Resistance10grms,10~100Hz/
    Weight1200g
    Protect ClassIP54/
    MaterialAnodizing of aluminum alloy/

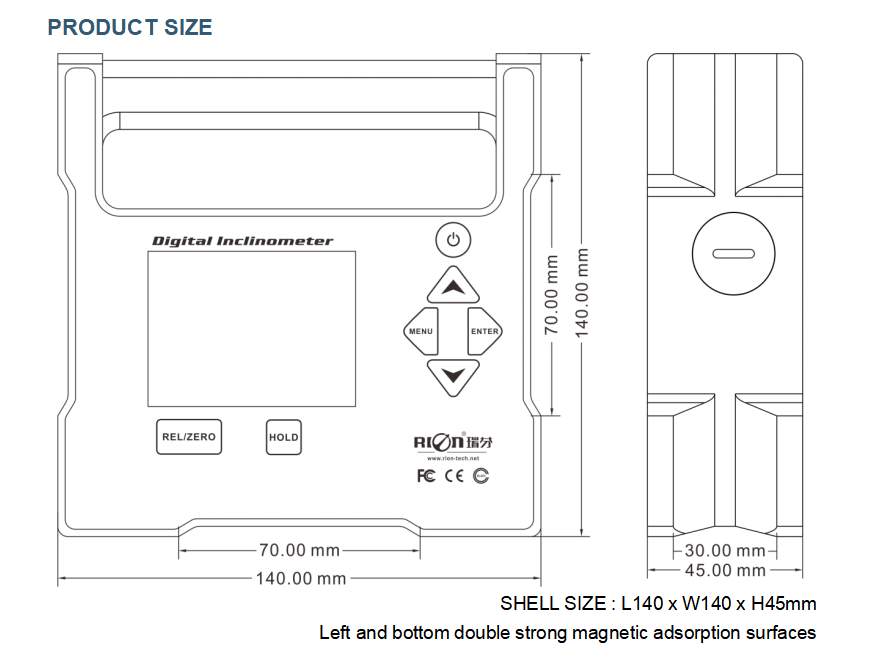

    SizeL140*W140*H45mmmm
