    High Resolution Magnetic Digital Angle Gauge RION Industrial

    Ask Lasest Price
    Model Number : DMI850
    Brand Name : RION
    Price : $2,345.00/Units
    Payment Terms : T/T, Paypal
    Supply Ability : 100 pcs/month
    Delivery Time : 10 days for samples
    Certification : CE, RHOS
    • Product Details
    • Company Profile

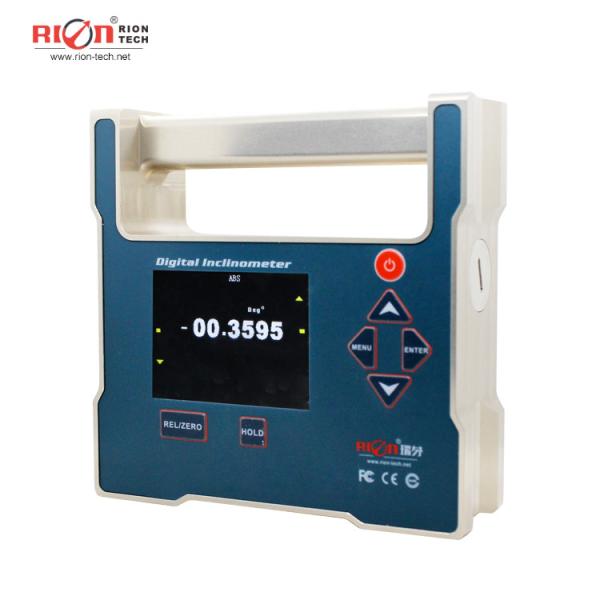

    High Resolution Magnetic Digital Angle Gauge RION Industrial

    DMI850 built in 32 bit microprocessor high precision industrial digital inclinometer

    PRODUCT DESCRIPTION


    Ultra High Resolution mm MEMS Magnetic Based Digital Tilt Sensor
    PRODUCT DESCRIPTION
    DMI850 is one Single axis Digital Inclinometer developed by RION company based on high precise angle measurement platform, it adopts the quartz pendulum slice of the earth's gravity induction component to solve the object level tilt angle. The built-in 32 bit microprocessor and collocation 32 bit high precision analog-to-digital converter, can highly subdivision sampling for the front weak current current and signal ratio of inclination , can meet the highest level accuracy of 0.001 degrees, the resolution is up to 0.0005 degrees. Battery continuous working time up to 6 hours;It can perform on-site data playback and chart analysis, and is the best instrument for high-precision platform leveling and measurement.

    KEY FEATURES
    * Best accuracy:<0.001°
    * Angular resolution:0.0005°
    * IP54 protection class
    * Maximum measurement range:±30°
    * Absolute / relative measurement switchable
    * data storage function
    * Both side and bottom can be measured
    * working temperature -10°~ +70℃
    * Double benchmarkstrong magnet installation
    * Alarm angle can be set
    * Automatic angle interpolation compensation function
    * Night vision four color screen
    * Customers can calibrate the zero point by themselves
    * Angle or length double unit switch
    * 2 kinds of measurement mode selectable (radian, angle, mm)


    APPLICATION RANGE
    * Building construction
    * Automotive four-wheel inspection
    * Road slope
    * Mechanical installation
    * Pipe installation
    * Industrial platform
    * Pan-tilt angle detection
    *Turntable detection
    *Production fixture
    * Medical instruments
    Measuring range
    ±30
    °
    Measuring axis
    Single-axis
    Best accuracy
    <0.001 (<5°),<0.003 (5°-30°)
    °(RMS)
    Resolution
    0.0005
    °
    2 Type modes
    Two modes can be set: degree, mm / m
    LCD
    64 color true color luminous display
    LCD visiable size
    L60*W45
    mm
    Operating temperature
    -10°~ +70℃
    °/℃
    Working humidity
    85
    %RH
    Power supply
    2A No.5 battery
    Battery continuous working time
    6(2000mAh battery)
    h
    Anti-viration
    10g @ 11ms, triaxial and same (half sine wave)
    g
    Impact resistance
    10grms,10~100Hz
    Weight
    1200g
    Protection glass
    IP54
    Material
    Anodizing of aluminum alloy
    Size
    L140*W140*H45mm
    Packing & Delivery
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
    Certificates
    High Resolution Magnetic Digital Angle Gauge RION Industrial
    ISO certificate
    High Resolution Magnetic Digital Angle Gauge RION Industrial
    CE certificate for DMI sensor
    High Resolution Magnetic Digital Angle Gauge RION Industrial
    CE certificate
