    RION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis Angle

    Ask Lasest Price
    Model Number : TL740
    Brand Name : Rion
    Supply Ability : 3000 Piece/Pieces per Month
    Price : $235/Pieces
    Certification : CE, ISO
    Payment Terms : T/T, Paypal
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    RION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis Angle

    TL740D AGV yaw sensor anti-magnetic interference gyro which output heading angle,forwarder acceleration and Z axis angle

    Gyroscope for AGV Heading / Azimuth, Roll, Pitch Angle Automatic Navigation Monitoring,Anti-interference, anti-vibration .

    TL740D is RION company newly developed horizontal azimuth angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s azimuth angle .The product inernal integrated RION’s Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .

    This product is specifically used for robotic cars, vehicle azimuth orientation, and other related applications of AGV, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.

    Key Features

    • Azimuth angle output
    • Strong vibration resistance
    • Light weight
    • Long life,strong stability
    • Cost-effective
    • All solid state
    • Compact & light design
    • RS232/RS485 output optional
    • DC9~36V power supply

    Specification

    RION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis AngleTL740DPARAMETERS
    Mesuring rangeAzimuth Angle (±180°)
    Acquisition bandwidth>100Hz
    Resolution0.01°
    Azimuth accuracy<0.1°/min
    positional accuracy<2mm/m (converted from angle accuracy)
    Nonlinear0.1% of FS
    Max angle rate150°/s
    Accelerometer range±4g
    Acceleroemter resultuion0.001g
    Acceleroemter accuracy5mg
    Starting time5s(Static)
    Input Voltage+9V~36V
    Current60mA(12V)
    Working Temp.-40 ~ +85℃
    Storage Temp.-40 ~ +85℃
    Vibration5g~10g
    Impact200g pk,2ms,½sine
    Working life10 years
    Output rate5Hz / 15Hz / 25Hz / 50Hz / 100Hz Can set
    Output signalRS232 / RS485 / TTL (Optional)
    MTBF≥50000 hours /times
    Insulation resistance≥100 Megohm
    Impact resistance100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    ProtectingIP67
    Weight130g(Without cable)


    RION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis Angle

    RION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis Angle

    RION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis Angle

    RION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis AngleRION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis Angle


    RION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis Angle



    Comparison of fiber optic inertial navigation and TL740D:

    Comparison-------5 minute data heading angle of vehicle

    RION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis Angle


    TL740D dynamic Relative azimuth/yaw angle :RION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis Angle


    TL740D Dynamic relative azimuth/yaw angle :RION 5Hz Yaw Motion MEMS Gyroscope Sensor Anti Magnetic Interference Z Axis Angle

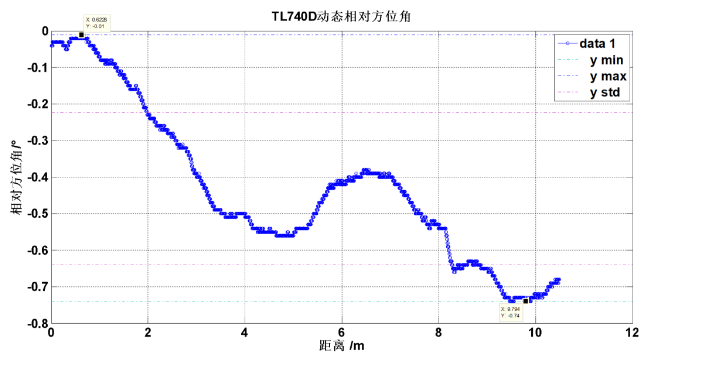

    TL740D is fixed on the conveyor belt. The conveyor belt speed is about 0.03m / s. During the conveyor belt there is a little jitter. The process is approximately straight and the length is about 10 meters. As shown in Figure 2 (a), the peak and peak azimuth angle is 0.48 °, and the maximum value is 0.06 °, the minimum value is -0.42 °, the average error value is -0.26 °, and the dynamic accuracy is 0.146 ° (1σ); as shown in Figure 2 (b), the peak-to-peak azimuth angle is 0.73 °, the maximum value is -0.01 °, the minimum The value is -0.74 °, the average error is -0.4316 °, and the dynamic accuracy is 0.2082 ° (1σ);


    To sum up:

    TL740D bearing static accuracy: 0.0447 ° (1σ); dynamic accuracy: 0.1771 ° (1σ)
