    TG632D Industry Triaixal Digital Angular Rate Sensor 3 Axis Vibration Magnetometer Sensor

    Ask Lasest Price
    Brand Name : RION
    Model Number : TG632D-232
    Certification : ISO
    Price : $469/Pieces >=1 Pieces
    Payment Terms : T/T, Paypal
    Supply Ability : 5000 Piece/Pieces per Month
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    TG632D Industry Triaixal Digital Angular Rate Sensor 3 Axis Vibration Magnetometer Sensor

    TG632D Industry Triaixal Digital Type Angular Rate Sensor 3 Axis Vibration Magnetometer Sensor


    KEY FEATURES


    ★ High performance drift stability

    ★ Low noise

    ★ Light weight

    ★ Long life,strong stability

    ★ Cost-effective

    ★ Excellent vibration performance

    ★ All solid state

    ★ Compact & light design

    ★ RS232/RS485/SPI output optional

    ★ Wide temp. range-40 ~+85℃

    ★ DC+9~36V power supply

    ★ Temperature drift< ±0.1°/sec/℃


    APPLICATION


    ★ Navigation

    ★ Car navigation
    ★ Platform stability

    ★ Auto safety system
    ★ Industrial control

    ★ Robot

    ★ 3D virtual reality

    ★ Equipments

    ★ GPS combination

    ★ Camera stability
    ★ Turck-mounted satellite antenna equipment

    ★ Ships electronic needle error compensation on inclined(angle rate)induction equipment


    Detailed Data
    TG632Dparameter
    Measuring range±50°/s±150°/s±300°/s
    Measuring axisX,Y,Z(optional)
    Bandwidth>100Hz>100Hz>100Hz
    Resolution0.05°/s0.1°/s0.2°/s
    Nonlinear0.06% of FS0.1% of FS0.15% of FS
    Temperature drift< ±0.1°/sec,/℃< ±2°/sec< ±3°/sec
    Start time<1s
    Input voltage+9~36V
    Current60mA
    Working temperature-40~+85℃
    Store temperature-40~+85℃
    Time Drift8°/h
    Shock5g~10g
    Impact200g pk,2ms,½sine
    Working life11 years
    Output rate5Hz,15Hz,35Hz,50Hz can be set
    Output signalRS232/RS485/TTL
    MTBF≥50000 hours/times
    Insulation resistance≥100M
    Shockproof100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    Protection classIP67
    Connector4 pins with 1M cable
    Weight152g(standard cable)

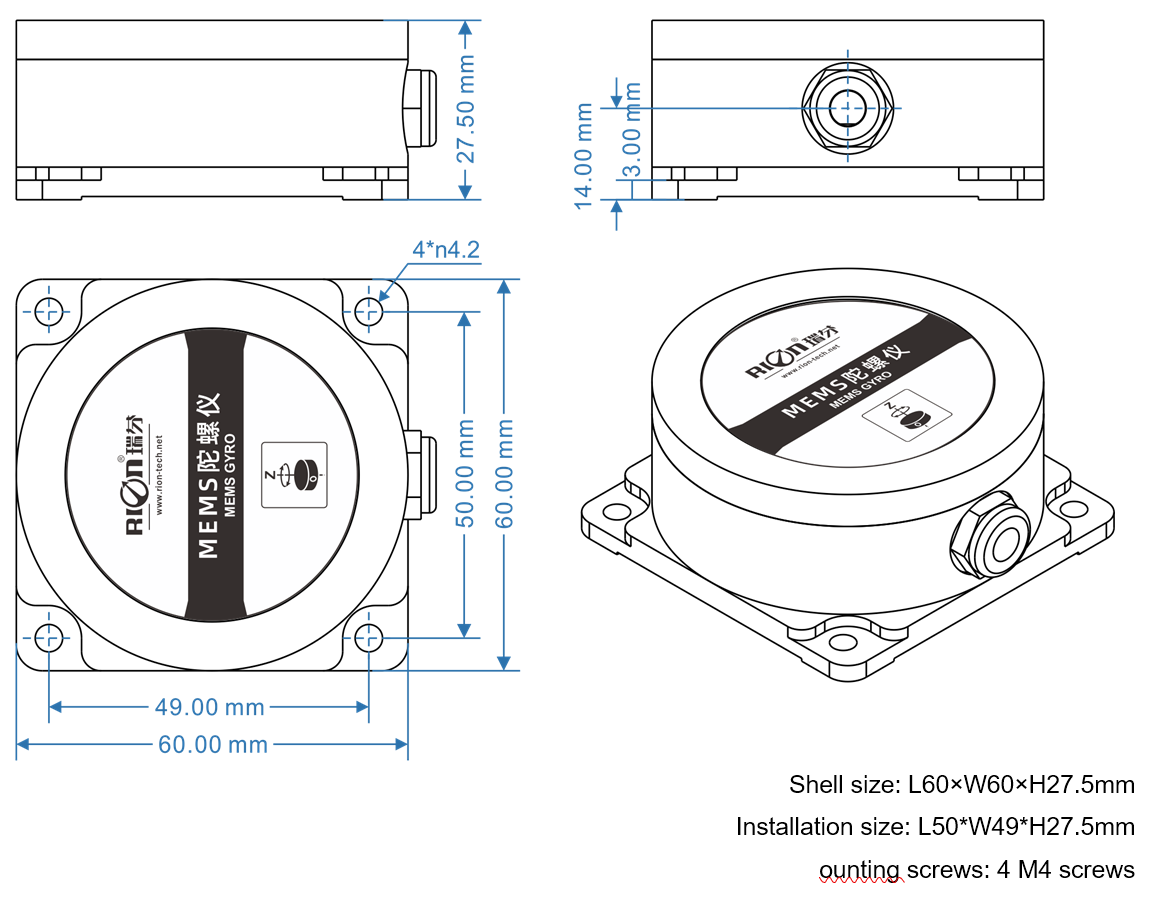

    Dimension


    FAQ

    Q1. What is your terms of packing?

    A: Generally, we pack our goods in brown cartons. If you have legally registered patent,

    we can pack the goods in your branded boxes after getting your authorization letters.


    Q2. What is your terms of payment?

    A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages

    before you pay the balance.


    Q3. What is your terms of delivery?

    A: EXW, FOB, CFR, CIF, DDU.

    Q4. How about your delivery time?

    A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends

    on the items and the quantity and stock of your order.

    Q5. Can you produce according to the samples?

    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?

    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and

    the courier cost.

    Q7. Do you test all your goods before delivery?

    A: Yes, we have 100% test before delivery

    Q8: How do you make our business long-term and good relationship?

    A:1. We keep good quality and competitive price to ensure our customers benefit ;
