    Auto Safety System Mems Gyroscope Sensor Light Weight

    Ask Lasest Price
    Brand Name : Rion
    Model Number : TL740-232
    Certification : CE, ISO
    Price : $235 USD
    Payment Terms : T/T, Paypal
    Supply Ability : 3000 Piece/Pieces per Month
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    Auto Safety System Mems Gyroscope Sensor Light Weight

    Auto safety system MMEMS Gyroscope Sensor Dynamic Attitude Algorithm Inertial Navigation ​UAV


    KEY FEATURES

    ★ relative heading angle output

    ★ Strong vibration resistance

    ★ Light weight

    ★ Long life,strong stability

    ★ Cost-effective

    ★ All solid state

    ★ Compact & light design

    ★ RS232/RS485/TTL output optional

    ★ DC9~36V power supply


    APPLICATION

    ★ AGV truck

    ★ Car Navigation

    ★ 3D virtual reality

    ★ Platform stability

    ★ Auto safety system

    ★ Turck-mounted satellite antenna equipment

    ★ Industrial control


    GENERAL DESCRIPTION

    TL740D is RION-TECH newly developed horizontal relative heading angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s relative heading angle .The product inernal integrated RION-TECH Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .

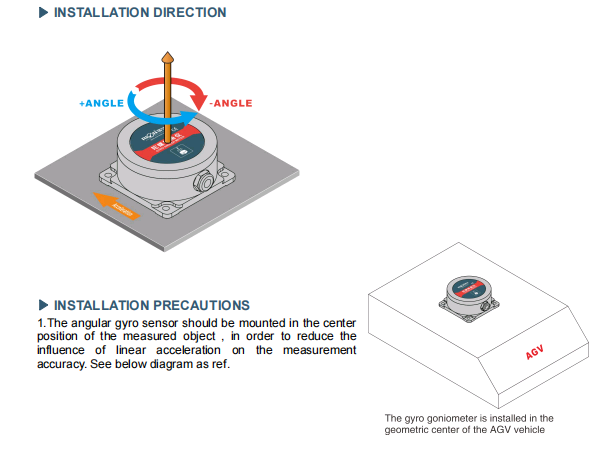

    This product is specially used for robot car, AGV vehicle relative heading orientation, attitude control and other related applications , instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.


    SPECIFICATIONS


    Auto Safety System Mems Gyroscope Sensor Light WeightTL740DPARAMETERS
    Mesuring rangerelative heading Angle (±180°)
    Acquisition bandwidth>100Hz
    Resolution0.01°
    relative heading accuracy<0.1°/min
    positional accuracy<2mm/m (converted from angle accuracy)
    Nonlinear0.1% of FS
    Max angle rate150°/s
    Accelerometer range±4g
    Acceleroemter resultuion0.001g
    Acceleroemter accuracy5mg
    Starting time5s(Static)
    Input VoltageDC9V~36V
    Current60mA(12V)
    Working Temp.-40 ~ +85℃
    Storage Temp.-40 ~ +85℃
    Vibration5g~10g
    Impact200g pk,2ms,½sine
    Working life10 years
    Output rate5Hz / 15Hz / 25Hz / 50Hz / 100Hz Can set
    Output signalRS232 / RS485 / TTL (Optional)
    MTBF≥98000 hours /times
    Insulation resistance≥100 Megohm
    Impact resistance100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    ProtectingIP67
    Weight≤150g (including 1 meter cable)
