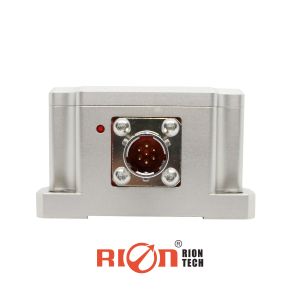

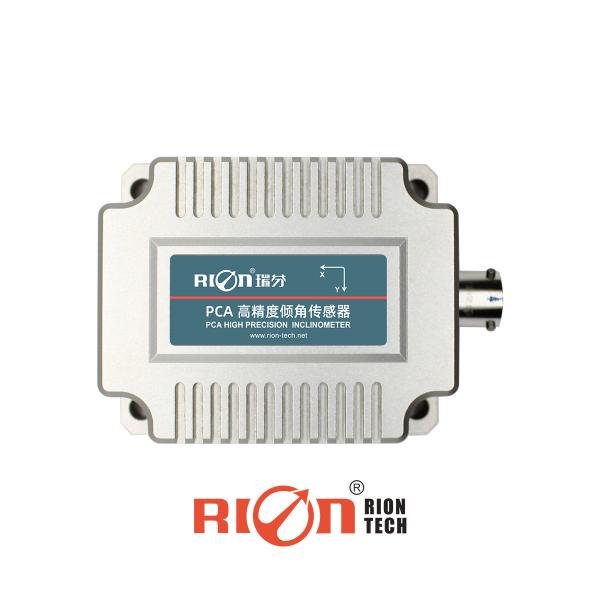

    PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSIS

    Ask Lasest Price
    Brand Name : RION
    Model Number : PCA826H
    Certification : CE
    Price : 618
    Payment Terms : T/T,paypal
    Supply Ability : 5000/month
    Delivery Time : 5 days for samples
    • Product Details
    • Company Profile

    PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSIS

    PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSIS


    APPLICATION

    Wind power monitoring

    Bridge and Dam monitoring

    Ancient building monitoring

    High-speed rail track monitoring

    Ground satellite communication vehicles

    Railway gauge ruler and gauge leveling

    Satellite communication vehicle

    Geological equipment tilt monitoring

    Engineering vehicle leveling


    ▶ MAIN FEATURE

    Biaxial tilt angle measurement

    Range ±10°

    Horizontal/vertical optional

    DC 936V wide voltage input

    Resolution 0.0005°

    IP67 protection grade

    Size: L82×W70×H42mm

    Output mode TTL

    Wide temperature operation -40+85℃


    ▶ SPECIFICATIONS

    PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSISPCA826H

    Condition

    Parameters

    Unit

    Measure range

    -

    ±10

    °

    Measure axis

    -

    XY

    axis

    Resolution

    -

    0.0005

    °

    Measure accuracy

    Room temp.

    0.001

    °

    Zero temp coefficient

    -4085℃

    0.0003

    °/℃

    Sensitivity temp. coefficient

    -4085℃

    ≤50

    ppm/℃

    Power on time

    <0.5

    S

    Response frequency

    20

    Hz

    Output rate

    5Hz / 10Hz / 25Hz / 35Hz / 50Hz / 100Hz Can be set

    Ouput signal

    RS485/RS232/RS422 Optional

    EMC

    According to EN61000 and GBT17626

    MTBF

    98000 hour/time

    Insulation Resistance

    ≥100 MΩ

    Shockproof

    100g@11ms / 3 Axial Direction (Half Sinusoid)

    Anti-vibration

    10grms / 101000Hz

    Protection grade

    IP67

    Cables

    Standard 1 meter long wear-resistant, wide temperature, shielded cable, aviation connector, weight ≤150g

    Weight

    ≤400g (Excluding cable)

    KEY WORDS

    Resolution: Refers to the sensor in measuring range to detect and identify the smallest changed value.

    Measure accuracy: refers to the root mean square difference between the measured value and the actual angle of the product within the range and for multiple times (more than 16 times).

    Zero Temperature Drift Coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.

    Sensitivity Temperature Drift Coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.


    ELECTRONIC PARAMETERS

    PCA826H: HIGH-PRECISION INCLINOMETER WITH INTEGRATED VIBRATION ANALYSISParameters

    Condition

    Min

    Standard

    Max

    Unit

    Power supply

    Standard

    9

    12

    24

    36

    V

    customized

    Other voltage

    V

    Working current

    12V

    16

    mA

    24V

    11

    mA

    Working temperature

    -40

    +85

    Store temperature

    -40

    +85


    ▶ VIBRATION PARAMETER INDEX

    The vibration frequency, speed, and displacement of this product are derived from data analysis. The frequency is the main frequency of the current object vibration frequency, the speed is the maximum speed, and the displacement is the maximum amplitude of the object vibration. Because of the vibration is irregular, the data is for reference only.

    INDEX

    VALUE

    UNIT

    Acceleration range

    2

    g

    Acceleration accuracy

    1

    mg

    Frequency range

    0~20

    Hz

    Frequency resolution

    0.125

    Hz

    Measurement error(±10%)

    0~8

    Hz
