Agriculture vehicle angle sensor vehichle yaw angle sensor

General Description

TL720D is a high-precision gyroscope developed by RION- TECH based on the latest MEMS inertial measurement platform.

It outputs the horizontal azimuth angle of the object in real time by performing dynamic attitude algorithm on the angular rate of the gyroscope; angular rate; forward axis body acceleration. The product integrates RION-TECH patented inertial navigation algorithm. Through the multi-model data fusion of the attitude angle, the short-term drift of the gyroscope can be solved to the greatest extent.

This product is specially used for automated agricultural machinery, precise operation and efficiency, and is an essential component of a new generation of automated precision agricultural control.

Main Features

● Azimuth angle output

● Strong vibration resistance

● Light weight

● Long life,strong stability

● Cost-effective

● All solid state
● Compact & light design

● RS232/RS485 output optional

● DC5V power supply

Title goes here.

● AGV truck

● Platform stability

● Auto safety system

● electricity commercial vehicle
● Industrial control

● Robot

● Car Navigation
● Turck-mounted satellite antenna equipment

TL720D		Parameters
Mesure range		Azimuth Angle (±180)
Acquisition bandwidth		>100Hz
Resolution		0.01°
Azimuth accuracy		<0.1°/m
Position accuracy		<2mm/m (Converted according to the angle)
Nonlinear		0.1% of FS
Gyro Angular Velocity Range		250°/s
Pitch measurement range		±90°
Pitch measurement accuracy		0.25°(1σ)
Roll measurement range		±180°
Roll measurement accuracy		0.25°(1σ)
Accelerometer	Accelerometer range	±4g
	Acceleroemter resultuion	0.001g
	Acceleroemter accurac	5mg
	Bias instability (allan)	0.05mg
	Speed random walk coefficient (allan)	0.015m/s/sqrt(h)
	Bias stability (10s average)	0.15mg
Gyro	Bias instability (allan)	5.0°/h
	Angle random walk coefficient (allan)	0.30°/sqrt(h)
	Bias stability(10s average value)	10°/h
Starting time		200mS
Input Voltage		9~36VDC / 5VDC (Optional)
Current		30mA(12V)
Working Temp.		-40℃ ~ +80℃
Storage Temp		-40℃ ~ +85℃
Vibration		5g~10g
Impact		200g pk,2ms,½sine
Working life		10 years
Output rate		1Hz~100Hz can set
Output signal		RS232 or RS485
MTBF		≥50000 hours /times
Insulation resistance		≥100 Megohm
Impact resistance		100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration		10grms,10～1000Hz
Protecting		IP67
Weight		≤135g (including 1 meter standard cable)

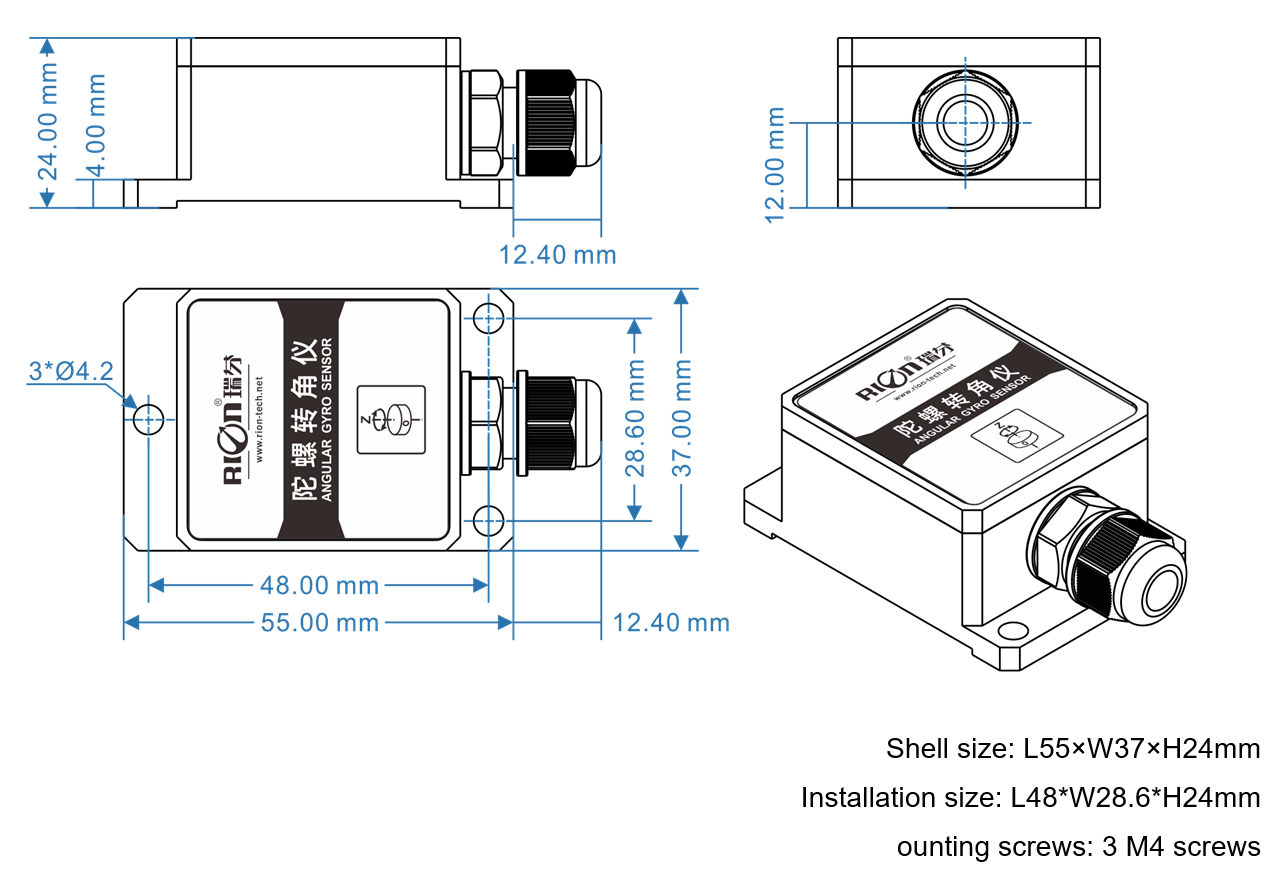

Dimension
