AKM390 Triaxial Accelerometer Analog Output Silicon Capacitive Sensor

AKM390 Triaxial Accelerometer, Analog Output, Silicon Capacitive Sensor

Product Description:

AKM390 tri-axial accelerometer is a widely used acceleration sensor products independently developed and produced by RION Technology, which can be applied to vibration testing, impact testing and other fields. The product is analog voltage output and can be set with different address codes. Multiple sensors can be connected in series for a long distance, which is convenient for multi-point measurement and data analysis. The AKM390 is a monocrystalline silicon capacitive sensor. It consists of a silicon chip processed by micromachining, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, solid structure and stable output after calibration. The new electronic configuration provides solid state power for reset and full protection against over-current. The accelerometers have the characteristics of solid structure, low power consumption and excellent deviation stability to ensure the reliability of product output.

Features:

Three-axis (X, Y, Z)
Output voltage: 0 ~ 5V
Power supply voltage: 9~36V
Operating temperature: -40 ° C ~ + 85 ° C
Excellent deviation stability, good environmental performance (shock, vibration and temperature)

Technical Parameters:

AKM390	Parameter						Unit
Measure range	±2	±4	±8	±10	±20	±40	g
Deviation calibration	<1	<1	<1	<1	<1	<1	mg
Measure axis	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	axis
Power on/off repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Sensitivity (± 10%)	1250	625	312.5	250	125	62.5	mv/g
Temp. coefficient of deviation	0.01	60.01	0.01	0.05	0.05	0.05	%/℃
Resolution/Threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	mg(max)
Nonlinearity	<0.5	<0.5	<0.8	<1	<1	<1	% FS(max)
Response frequency	500	500	500	500	500	500	Hz
Bandwidth (3DB)	1000	1000	1000	1000	1000	1000	Hz
Cross-axis sensitivity	1	1	1	2	2	2	%
Lateral Vibration Sensitivity Ratio	1	1	2	5	5	5	%
Resonant frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
Noise density	21	21	21	86.6	86.6	86.6	μg/√Hz
0 G Output 2.5V	<0.01	<0.01	<0.01	<0.008	<0.008	<0.008	mV
Output voltage	0~5V
Input (VDD _ VSS)	9-36 VDC
Operating current consumption	<60mA @ 12 VDC
Protection	IP67
Material	aerospace aluminum
Weight	Product net weight: ≤116g, magnetic base: ≤50g

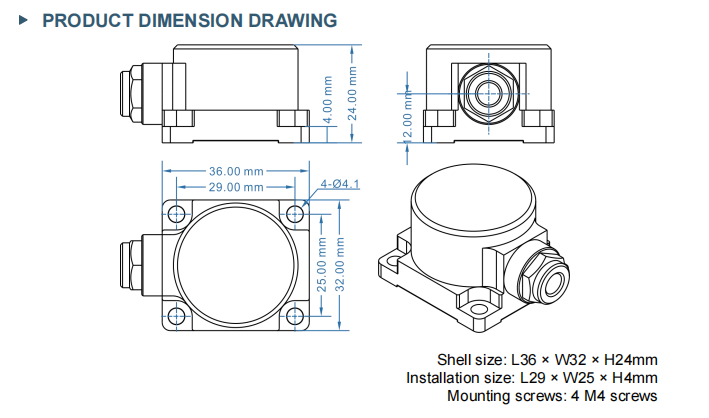

Size	Product size: L36 × W32 × H24mm Size of magnetic adsorption base plate: L36 × W32 × H8.1mm

Applications:

★ Bridge
★ Automobile
★ Roller
★ Wind power
★ Medical equipment
★ Large machinery and engine
★ Low frequency vibration and automatic monitoring
