SCA Dual axis Anti-vibration Inclinometer IP67 for inclination
measurement
Product Description:
SCA116T/SCA126T CAN OPEN is a tilt sensor specifically designed for
precise industrial field control. It features a CANopen output
interface and integrates industry-standard isolated CAN
transceivers and high-precision A/D differential converters.
Utilizing an advanced fifth-order filtering algorithm, the sensor
accurately measures tilt angles and pitch relative to the
horizontal plane.
Equipped with a high-precision digital temperature sensor,
SCA116T/SCA116T CAN OPEN effectively corrects temperature drift,
ensuring stability and reliability in extreme temperature
conditions. It supports a standard output response frequency of up
to 50Hz, with customization available for higher frequencies based
on user requirements. As a genuine industrial-grade product, it
offers dependable performance, excellent scalability, and multiple
output configurations, making it suitable for various demanding
industrial control environments.
Features:
- Output method: CAN OPEN
- Direct lead interface
- High anti-vibration performance> 2000g
- IP67 protection level
- Measure accuracy: 0.03°
- Resolution 0.01 °
Technical Parameters:
 SCA116/126T-C1 | CONDITION | PARAMETER | UNIT |
| Measure range | | ±10 | ±30 | ±60 | ±90 | ° |
| Measure axis | | XY | X Y | X Y | X Y | Axis |
| Resolution | | 0.01 | 0.01 | 0.01 | 0.01 | ° |
| Measure accuracy | @25℃ | 0.02 | 0.03 | 0.05 | 0.06 | ° |
| Long term stability | | 0.05 | 0.05 | 0.05 | 0.05 | ° |
Zero Temp. coefficient | -40～85℃ | ±0.006 | ±0.006 | ±0.006 | ±0.006 | °/℃ |
Sensitivity temp. coefficient | -40～85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power-on start time | | 0.5 | 0.5 | 0.5 | 0.5 | S |
Response time | | 0.02 | 0.02 | 0.02 | 0.02 | s |
| Output rate | 5Hz,15Hz,35Hz,50Hz can be set |
| Output signal | CAN OPEN |
| EMC | According to EN61000 and GBT17626 |
| MTBF | ≥98000 hours/times |
| Insulation Resistance | ≥100 MΩ |
| Impact resistance | 100g@11ms,3 Axial Direction (Half Sinusoid) |
| Anti-vibration | 10grms,10～1000Hz |
| Protection grade | IP67 |
| Cables | Standard as 1-meter length, wear-resistant, oil-proof, wide
temperature, shielded cable 4 * 0.4mm2 |
| Weight | ≤220g (including 1 meter cable) |

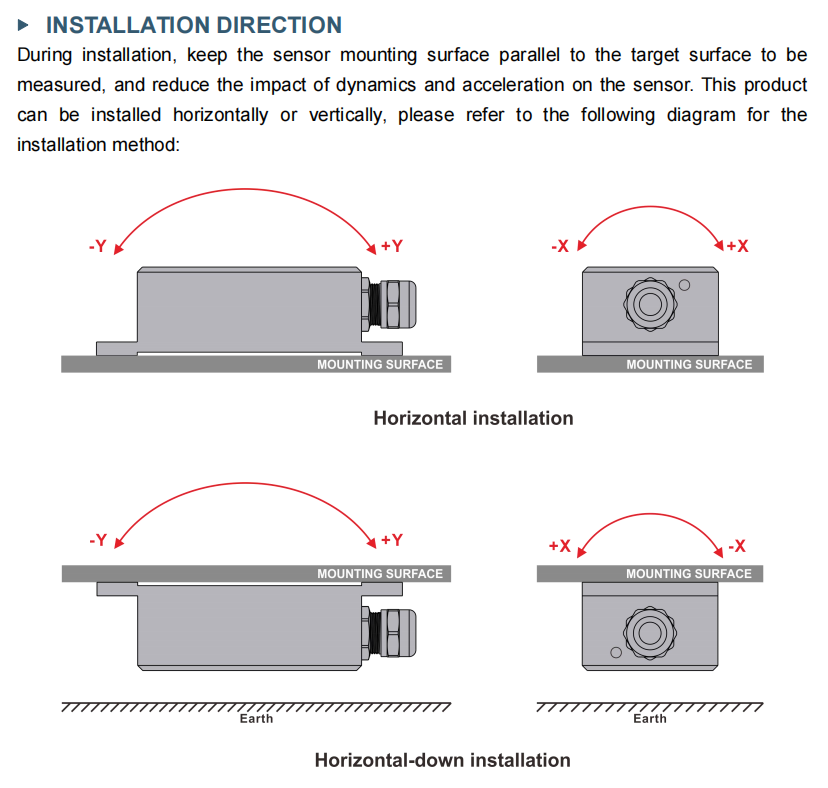

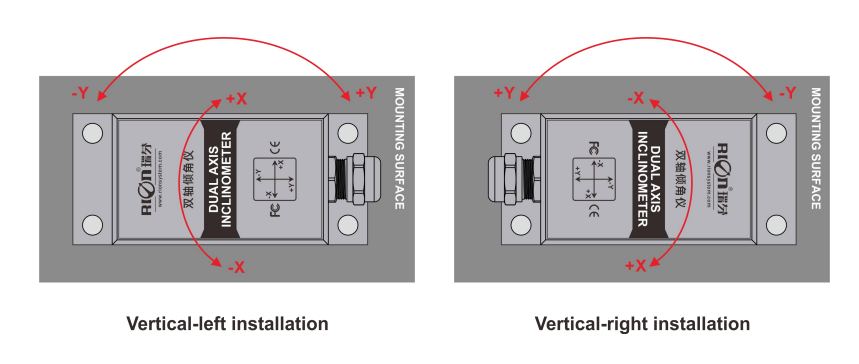

Applications:
★ Underground drilling rig attitude navigation
★ Shield pipe jacking application
★ Direction measurement based on inclination angle
★ Oil drilling equipment
★Various engineering machinery inclination measurement
