    AKF398 Precision Accelerometer With Excellent Bias Stability angle Measurement

    Ask Lasest Price
    Brand Name : RION
    Model Number : AKF398-02-T
    Certification : CE
    Price : $235.00/Pieces
    Payment Terms : T/T, , Paypal
    Supply Ability : 3000 PCS/MONTH
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    AKF398 Precision Accelerometer With Excellent Bias Stability angle Measurement


    AKF398 Precision Accelerometer With Excellent Bias Stability angle Measurement

    Product Description:

    The AKF398 triaxial accelerometer is a voltage output type accelerometer independently developed and produced by RION Technology, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, different address codes can be set, and multiple sensors are connected in series for a long distance, which is convenient for multi-point measurement and data analysis. AKF398 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

    Features:

    • power supply:9-36V
    • excellent bias stability
    • working temperature: -40°C ~ +85°C
    • store temperature: -40°C ~ +85°C
    • size: L34.3×W34.3×H38.5mm
    • weight: 73.5g
    • Three-axis Accelerometer
    • Good environmental performance

    Technical Parameters:

    AKF398

    PARAMETERUNIT
    Range±2±4±8±10±20±40g
    Deviation Calibration<1<1<1<1<1<1mg
    Measuring AxialX,Y,ZX,Y,ZX,Y,ZX,Y,ZX,Y,ZX,Y,Zaxis
    Up/Off Power Repeatability<2<2<2<2<2<2mg(max)
    Sensitivity (± 10%)4210.80.40.2

    mA/g

    Deviation
    temp. coefficient

    0.010.010.010.050.050.05%/℃
    Resolution/Threshold (@ 1Hz)< 1< 1< 1< 1< 1< 1mg(max)
    Nonlinearity<0.5<0.5<0.8<1<1<1% FS(max)
    Frequency response500500500500500500Hz
    Bandwidth (3Db)100010001000100010001000

    Hz

    Cross-axis sensitivity111222%
    Lateral vibration sensitivity ratio112555%
    Resonant frequency2.42.42.45.55.55.5kHz
    noise density21212186.686.686.6μg/√Hz
    0g output 12mA<0.005<0.005<0.005<0.003<0.003<0.003mA
    Output current

    4~20mA

    Input(VDD_VSS)9~36 VDC
    Running current consumption<60mA @ 12 VDC
    ConnectorIndustrial Standard M12 Connector
    Protection gradeIP67
    WeightProduct net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g

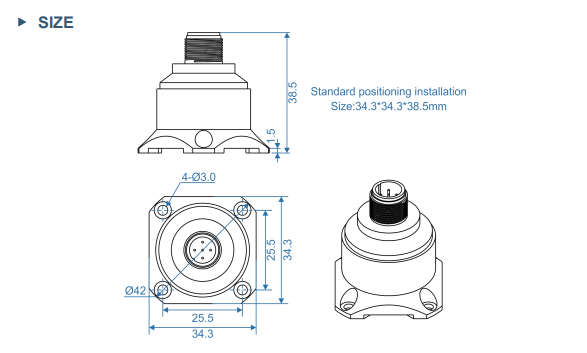

    Size

    Product size: 34.3*34.3*38.5mm

    Magnetic adsorption base size: 34.23*34.23*8.1mm

    L-shaped adapter plate size: 36*44*15mm


    Applications:

    ★ Crash record, fatigue monitoring and prediction
    ★ Wind power generation
    ★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection
    ★ Large machinery, engine
    ★ Low frequency vibration and automatic monitoring
    ★ Medical equipment
    ★ Bridge
    ★ Vehicle
    ★ Road roller
