Shock resistance High Accuracy Digital Inclinometer IP54 for Data Collection

Product Description:

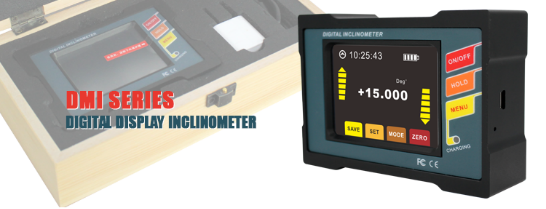

DMI810/DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. Single and double axis measurement, measurement range ±30° measurement, resolution 0.001°, highest accuracy <0.005° full value,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, DMI810 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

Features:

★ User can set the alarm value by himself

★ Data store function

★ Absolute/Relative measurement can switch

★ Both sides and bottom can measure

★ Double benchmark strong magnet installation

★ Working Temperature : -10°～ +70℃

★ Auto-angle interleaved compensation function

★ Auto temperature drift compensation

.

Technical Parameters:

PARAMETER	DMI810		DMI820		UNIT
Meausre Axis	Single Axis		Daul Axis		Axis
Angle Measure Range	±15 °	±30 °	±15 °	±30 °	°
Angle Measurement Accuracy(Full Range)	<0.005	<0.01	<0.005	<0.01	°
Angle Measure Resolution	0.001	0.001	0.001	0.001	°
Mm/m Measure Range	267	577	267	577	mm/m
Mm/m Measure Accuracy	0.1	0.2	0.1	0.2	mm/m
Mm/m Measure Resolution	0.02	0.02	0.02	0.02	mm/m
Repeatability	0.003	0.003	0.003	0.003	°
Measurement Mode	Angle,Degree/Minute/Second,Mm/m Three modes can be set
Working Temperature	-10°~ +70℃
Working Humidity	85%RH
Power Supply	3.7V Charging Lithium Battery
Ideal Charging Time	5h
Battery Continuous Working Time	11h
Equipped With Pc Software	Vc Software
Data Output Signal	USB2.0 (Virtual Serial Device)
Connect Plug In	Standard Usb Connector, Rechargeable
Shock Resistance	10g@11ms,3 Axial Direction (Half Sinusoid)
Shock Impact	10grms,10~100Hz
Waterproof Grade	IP54
Material	Aluminum Alloy Anodizing
Lcd	64 True Colors Night Vision Display Screen
Lcd Visible Area Size	L57.6*W43.2mm
Size	L109*W77*H27mm
Weight	≤350g

This High Accuracy Digital Inclinometer is a high definition, high quality and high precision digital inclinometer designed to meet the technical parameters listed above.

Applications:

★ Building construction

★ Automobile four-wheel testing

★ Road slope

★ Machinery installation

★ Piping installation

★ Industrial platform
