DMI410 Digital Display Inclinometer 0.05 °accuracy For Machinery
Installation
▶PRODUCT DESCRIPTION
DMI410&DMI420 is a digital display inclinometer which took RION
company three years to develop professional for various industry
angle control and measuring.The core of this product is using the
micro-mechanical control principle, dual-core measurement unit, can
use the Y-axis to compensate X-axis during the measurement
process,a and then to use RION patent interleaved and temperature
compensation model algorithm to play absolute operation advantages
of the micro-mechanical electronic principles,to ensure that the
instruments measurement with the long-term stability and
repeatability. MI410 single axis ±180° measurement, DMI420 dual
axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree
full-scale,fast response, stable data, products specially designed
for the sides and bottom with magnetic adsorption installation,
both sides of the benchmark can be measured and using normally,very
convenient to use,This product series has strong scalability,
convenient & practical application and industrial reliability, has
absolute cost advantage and has an absolute competitive advantage
in the international market !
▶KEY FEATURES
★ IP54 protection class
★ User can calibrate by himself
★ Built-in recharge industry battaries
★ Night vision fours colors screen
★ Auto-angle interleaved compensation function
★ 100g High anti-impact
▶APPLICATION
★ Building construction
★ Road slope
★ Automobile four-wheel testing
★ Industrial platform
★ Turntable testing
★ Production jig
▶ PARAMETERS
DMI410
DMI420
Measurement axis
Single axis
Dual axis
Angle measurement range
±180 °
±90 °
Angle measurement accuracy
0.05 °(full range)
0.05 °(full range)
Angle measure resolution
0.01°
0.01°
mm/m measure range
±999.9mm/m
±999.9mm/m
mm/m measurement accuracy
0.9mm/m(full range)
0.9mm/m(full range)
mm/m measurement resolution
0.1mm/m
0.1mm/m
LCD visible area size
L40*W32mm
Working temperature
-10℃～ +70℃
Working humidity
85%RH
Power supply
3.7V Charging Lithium battery
Ideal charging time
3h
Battery continuous working time
8h(±0.5)
Data output signal
Standard 5Pin USB connector
Anti-vibration
10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance
10grms,10～100Hz
Waterproof level
IP54
Material
Metal aluminum

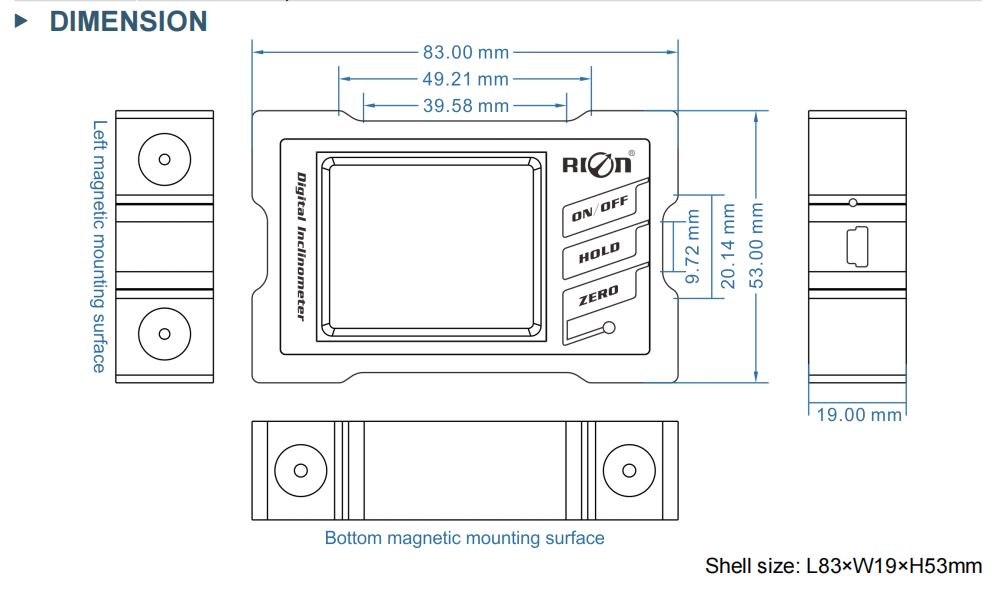

Size
L83*W19*H53mm
Weight
≤140g
▶ORDER INFORMATION
Item No.
Order description
DMI410
Standard single axis digital display inclinometer /measure range
±180°(length 0～±999.9mm/m)
DMI420
Standard Dual axis digital display inclinometer /measure range
±90°(length 0～±999.9mm/m)

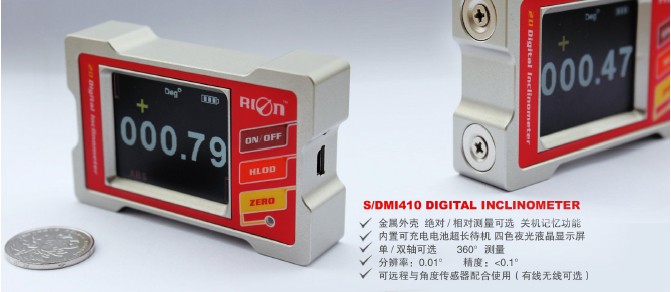

① Metal wear-resistant structure: metal shell, hard and durable；
② Display area: data display touch screen operation area；
③ ON/OFF: Power on/off key, press and hold for 3 seconds to turn on
or off；
④ HOLD: lock key, lock the current data, convenient for customer
records；
⑤ ZERO: Switch between absolute measurement and relative
measurement mode; (ABS is displayed on the screen for absolute
status, and REL is displayed for relative measurement)；
⑥ Reset hole: If the product crashes during use, please insert a
small needle into the small hole below the USB interface to reset；
⑦ USB jack: used for charging and USB2.0 virtual serial port output
data；
⑧ Charging indicator light: when the light is on, it means
charging, and when the light is off, it means it is fully charged.
⑨ Bottom strong magnetic: the bottom strong magnetic adsorption
mounting surface；
⑩ Strong magnetic on the side: the strong magnetic adsorption
mounting surface on the left；
HOLD&ZERO:To switch the measurement unit, press and hold HOLD until the small
lock sign appears on the screen, and then press ZERO to switch
between the two measurement units of "angle" and "mm/m"；
ON/OFF&HOLD:Press and hold ON/OFF, wait for the screen to turn black, then
press HOLD, then the accuracy can be calibrated according to the
screen；
ON/OFF&ZERO:Press and hold ON/OFF, wait for the screen to turn black, then
press HOLD, then you can perform zero point correction according to
the screen；
Note: The USB driver can be downloaded from the official website of
Ruifen "USB Driver for DMI Series Products".
