HDA436T,A new generation of digital MEMS dynamic tilt sensor
launched by RION Technology. It can measure the attitude parameters
(roll, pitch, and azimuth) of a moving carrier, and suitable for
tilt angle measurement under motion or vibration.HDA436T has a
built-in high-precision acceleration and gyro sensor, and
integrates the Carman filter algorithm, which can measure the
real-time motion data of the carrier under motion or vibration. The
signal output modes such as RS485 / RS232 / TTL are optional, and
the scalability is strong.
This product adopts non-contact measuring principle, which can
output the current attitude and inclination in real time. It is
simple to use and does not need to retrieve the relative changes of
the two surfaces.Internally integrated high-precision AD and
high-precision gyro units to compensate for non-linear, orthogonal
coupling, temperature drift and centrifugal acceleration in real
time; greatly eliminate centrifugal errors caused by motion
acceleration interference, improve product dynamic measurement
accuracy; adapt to long-term complex movements Work in places and
harsh environments.The product is a dynamic and static dual-mode
measurement sensor with strong resistance to external
electromagnetic interference. It is an ideal choice for industrial
automation control measurement posture.
▶ PRODUCT APPLICATION
★ Railway locomotive monitoring
★ Oil drilling equipment
★ Shield pipe jacking application
★ Geological equipment tilt monitoring
★ Underground drilling rig attitude navigation
★ Ship navigation attitude measurement
★ Shield pipe jacking application
★ Satellite communication vehicle attitude detection
★ Orientation measurement based on inclination angle
★ Various engineering machinery inclination measurement
Technical Data
HDA436T
CONDITION
INDEX
Measure range
-
Roll ±180°, pitch ±90°, azimuth ±180°
(initial value at power-down is 0°)
Measure axis
-
X axis / Y axis / Z axis
Resolution
-
0.01°
Static accuracy
@25℃
± 0.05°
Dynamic accuracy(RMS)
@25℃
± 0.1°
Gyro
range
-
±250°/s
Zero bias stability (10s mean)
-
8.5°/h
Zero Bias Instability(allan)
-
4.5°/h
Angle random walk coefficient(allan)
-
0.25°/sqrt(h)
Acceleration
range
-
±8g
Bias stability(10s mean)
-
0.02mg
Bias instability(allan)
-
0.005mg
Speed random walk coefficient(allan)
-
0.005m/s/sqrt(h)
Zero point temp. coefficient
-40～85℃
±0.01°/℃
Sensitivity temp. coefficient
-40～85℃
≤100ppm/℃
Power-on startup time
1S
Response time
0.01S
Output signal
RS485/RS232/TTL
Electromagnetic compatibility
According to EN61000 and GBT17626
MTBF
≥ 98000 hours / time
Insulation resistance
≥100 Megohm
Impact resistance
100g @ 11ms,3 axial direction (half sinusoid)
Anti-vibration
10grms,10～1000Hz
Waterproof level
IP67

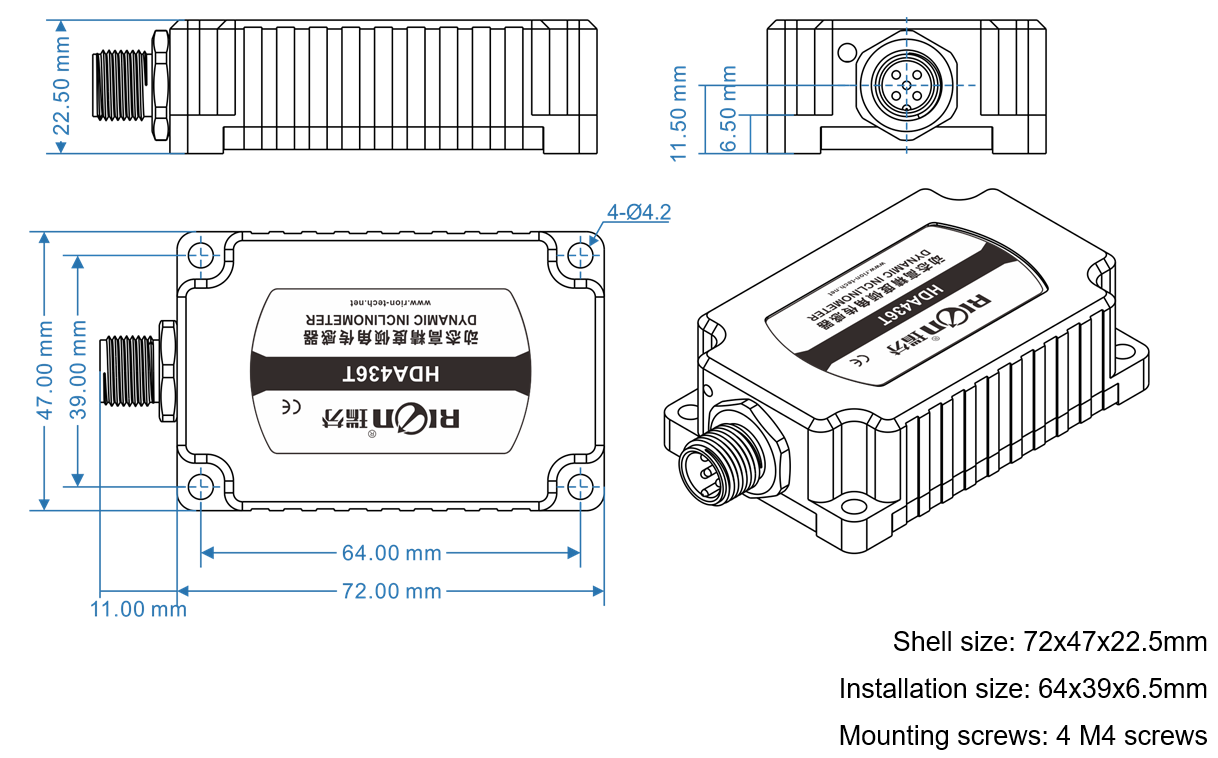

Cable
Standard without wiring, optional 2m M12 aviation plug with PVC
unshielded cable
