    Angle Measure Biaxial Digital Clinometer 3.7V For Platform Level

    Ask Lasest Price
    Brand Name : RION
    Model Number : DMI420
    Certification : CE
    Price : $234.00/Pieces
    Payment Terms : T/T, Paypal
    Supply Ability : 3000/month
    Delivery Time : 5 days for sample
    • Product Details
    • Company Profile

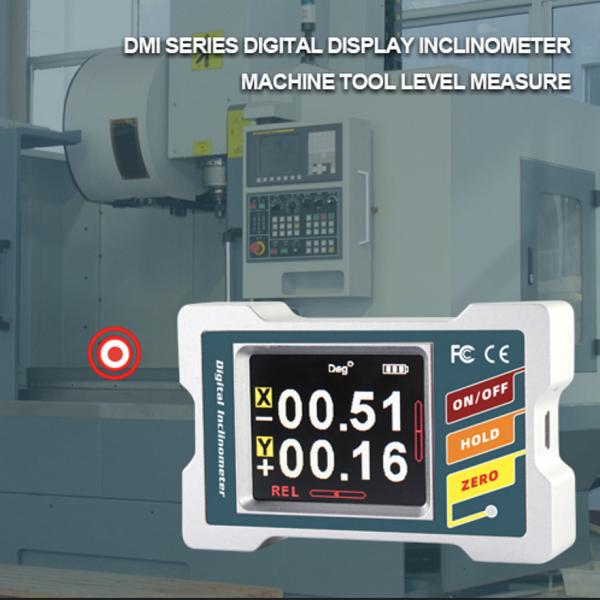

    Angle Measure Biaxial Digital Clinometer 3.7V For Platform Level

    Digital Angle Level Measure Sensor Display , Biaxial Digital Clinometer For Platform Level , Digital Spirit Level Sensor


    ▶ KEY FEATURES

    ★ Auto-angle interleaved compensation function

    ★ Auto temperature drift compensation

    ★ User can calibrate by himself

    ★ Built-in recharge industry battaries

    ★ Night vision fours colors screen

    ★ IP54 protection class

    ★ Angle/length dual unit switch

    ★ 100g High anti-impact


    ▶ APPLICATION

    ★ Building construction

    ★ Automobile four-wheel testing

    ★ Road slope

    ★ Machinery installation

    ★ Piping installation

    ★ Industrial platform

    ★ Turntable testing

    ★ Cloud deck angle detection

    ★ Production jig


    Specification
    PARAMETERSDMI410 DMI420
    Angle measure range±180 °±90 °
    Length measure range0~±999.9mm/m0~±999.9mm/m
    Measure axisSingle axisDual axis
    Angle measure accuracy0.05 °(full range)0.05 °(full range)
    Angle measure resolution0.01°0.01°
    Length measure accuracy0.9mm/m(full range)0.17mm/m(full range)
    Length measure resolution0.17mm/m0.1mm/m
    LCD visible area sizeL40*W32mm
    Working temperature-10℃~ +70℃
    Working humidity85℃
    Power supply3.7V Charging Lithium battery
    Ideal charging time3h
    Battery continuous working time8h(±0.5)
    Data output signalStandard 5Pin USB connector
    Anti-vibration10g@11ms,3 Axial Direction (Half Sinusoid)
    Impact resistance10grms,10~100Hz
    Weight≤140g
    Waterproof levelIP54
    MaterialMetal aluminum
    SizeL83*W53*H19.2mm

    General Description

    DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. MI410 single axis ±180° measurement, DMI420 dual axis ±90° measurement,resolution 0.01 °,accuracy <0.05 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use,This product series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

    ON/OFF: Press for 2seconds to power on or off ;

    HOLD: This key to lock the current data, convenient customer records;

    ZERO: This button can switch in the absolute and relative measurement mode;(screen display ABS means absolute status, display REL means relative measurement)

    HOLD & ZERO: Press HOLD button until the screen appear a small lock sign then press ZERO, can switch in “Angle” and “mm/m” two units of measurement;

    ON/OFF&HOLD: Press ON/OFF button until the screen to be black then press the HOLD button , can calibrate the accuracy according to the screen;

    ON/OFF&ZERO: Press ON/OFF button until the screen to be black then press the HOLD button , can calibrate the ZERO according to the screen;

    RESET HOLE: If the instrument occur a crash in working, key can't operation, can use the needlepoint hard object to insert into the hole for touch the button;

    USB JACK: For charging purposes or Angle of external connection, data transmission;

    WARNING LIGHT: Charging lights, lights up means is charging, light off mens has been filled with power then can take off the charger .( In order to keep the battery with a long life please don't use it as much as possible when it is charging with power.)
