    High Performance 3 Axis Gyro Sensor For 5G Antenna Pitch Roll Safety Tilt

    Ask Lasest Price
    Brand Name : RION
    Model Number : TL735-485
    Certification : CE
    Price : 60
    Payment Terms : L/C, T/T
    Supply Ability : 5000/month
    Delivery Time : 5 days for samples
    • Product Details
    • Company Profile

    High Performance 3 Axis Gyro Sensor For 5G Antenna Pitch Roll Safety Tilt

    high performance gyro sensor for antenna, 5g antenna heading angle sensor, pitch roll safety tilt sensor


    TL735G is a high-precision three-axis attitude meter developed by RION-TECH Technology based on the company's latest MEMS inertial measurement platform. It outputs the horizontal azimuth angle and angular rate of the object in real time by performing dynamic attitude algorithm on the angular rate of the gyroscope. The product integrates RION-TECH patented inertial navigation algorithm. Through the multi-model data fusion of the attitude angle, the short-term drift of the gyroscope can be solved to the greatest extent.

    The azimuth angle of this product has a power-down storage function, and is suitable for high-voltage rotary switch angle indications in 5G antenna monitoring, outdoor billboards, and other industries.


    ▶ MAIN FEATURE

    ★ Super electromagnetic compatibility

    ★ Real-time angular rate output

    ★ Horizontal azimuth and attitude angle output

    ★ Long life, strong stability

    ★ Forward axis acceleration

    ★ All solid state

    ★ Compact and lightweight design

    ★ RS485 output optional

    ★ DC9~36V power supply


    APPLICATION

    ★ 5G antenna monitoring

    ★ Outdoor billboard

    ★ 3D virtual reality

    ★ Stable platform

    ★ Car security system

    ★Antenna equipment

    ★ Industrial control

    ★ Robot


    TL735GParameters
    Azimuth measurement axisZ-axis azimuth angle ±180°
    Acquisition bandwidth>100Hz
    Azimuth resolution0.01°
    Azimuth accuracy<0.5°
    Non-linear0.1% of FS
    Pitch accuracy0.1° RMS
    Roll accuracyDynamic 0.5°, static 0.1° RMS
    Tilt resolution0.01°
    Tilt rangeRoll ± 180º, pitch ± 90º
    Gyro angular rate±125 °/s (other angular rates can be customized)
    Acceleration range±2g
    Acceleration resolution0.1°
    Acceleration accuracy0.5mg
    Default data output typeEuler angle

    Default azimuth measurement range

    (Data output type is Euler angle)

    ±180°
    Start Time5s (stationary) vibration <10mg
    Input voltage9~36V, default +24VDC, 12mA
    Current40mA
    Operating temperature-40℃ ~ +85℃
    Storage temperature-40 ℃~ +125℃
    Vibration5g~10g
    Impact200g pk,2ms,½sine
    life span10 years
    Start Time5-6 seconds, stand still (acceleration <0.01g)
    Maximum sampling rate100 times/sec
    Serial communication rateDefault 9600 baud rate
    Output signalRS485
    MTBF≥50000 hours/time
    Insulation resistance≥100 megohm
    Impact resistance100g@11ms, 3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    Waterproof levelIP67
    CableStandard 1-meter cable
    Weight35g (not including cable)

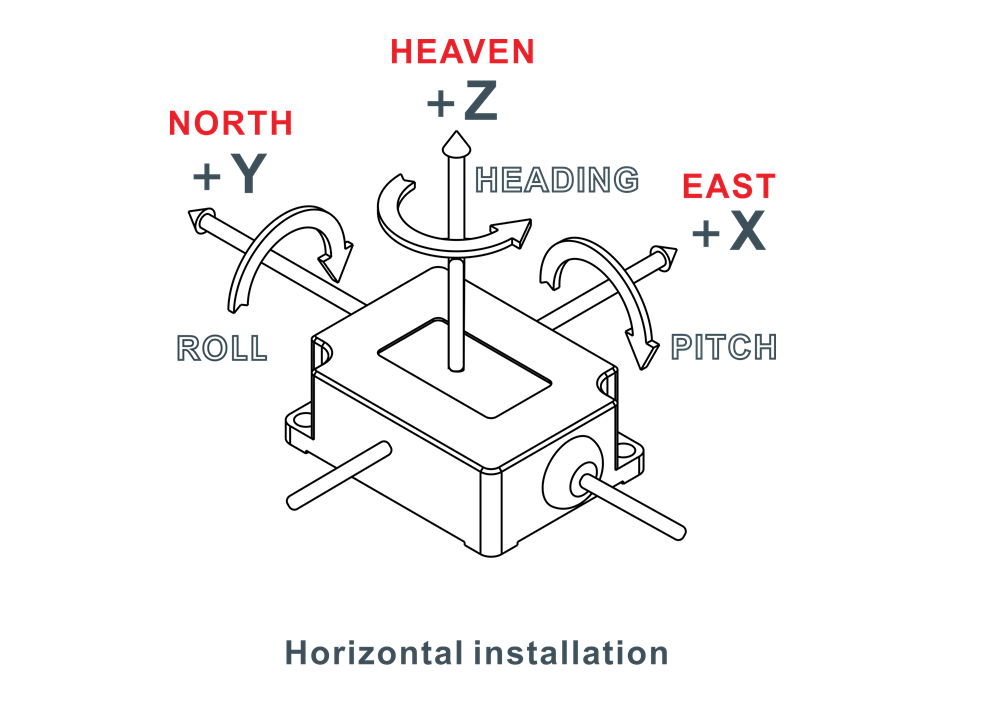

    ▶ Installation


    ▶ PRODUCT ELECTRICAL CONNECTION


    Color FunctionBLACKWHITEGREENREDShielded wire
    GNDRS485(D+)RS485(D-)

    Vcc 9~36V

    Positive pole

    Grounding(PE)
