    RS485 Output Two Axis Inclinometer IP67 Waterproof For Building

    Ask Lasest Price
    Brand Name : Rion
    Model Number : HCA716S-80
    Certification : CE
    Price : $273.00/Pieces 1-9 Pieces
    Payment Terms : T/T, PayPal
    Supply Ability : 5000/month
    Delivery Time : 7
    • Product Details
    • Company Profile

    RS485 Output Two Axis Inclinometer IP67 Waterproof For Building

    building incline monitor dual axis incline measure for building


    Technical Data

    HCA716/HCA726CONDITIONPARAMETERSUNIT
    Measure range±15±45±60±180°
    Measure axisX,YX,YX,YVertical Xaxis
    Resolution0.0010.0010.0030.005°
    Measure accuracy@25℃±0.008±0.01±0.01±0.01°
    Zero Temp.coefficient-40~85℃±0.0005±0.0005±0.0005±0.0005°/℃
    Sensitivity temp-coeffi-40~85℃≤0.01≤0.01≤0.01≤0.01%/℃
    Power on time0.50.50.50.5S
    Response frequency20HZ
    InterfaceTTL / RS232 / RS485 optional
    Communication protocolRION 68 protocol / MODBUS RTU protocol optional
    EMCAccording to EN61000 and GBT17626
    MTBF≥50000 hours/times
    Insulation Resistance≥100MΩ
    Shockproof100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    Protection gradeIP67
    CablesStandard configuration: 1m length, wear-resistant,oil-proof, wide temperature, shielded cable4*0.2mm2
    Weight≤150g (including 1 meter cable)

    GENERAL DESCRIPTION

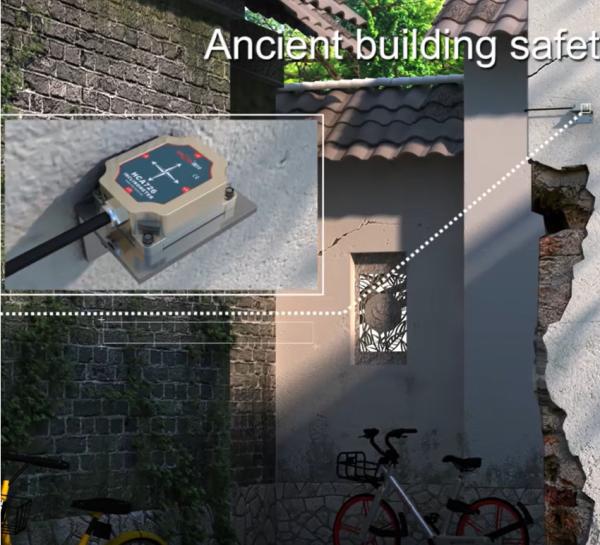

    HCA716S / HCA726S is a small volume high-precision single / dual-axis inclinometer developed by RION Technology for industrial field control. It adopts RS485 / RS232 serial access interface. Built-in high-precision 24bit A / D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. The product integrates the latest technology main MEMS tilting unit, the measuring range up to ± 180 °, and the full-scale accuracy is 0.01 °, which can easily achieve dual-axis and single-axis tilt measurement. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. It is suitable for the application of monitoring of ancient buildings, dilapidated buildings, ancient walls, etc., and large-scale high-precision measurement in industrial sites.


    FEATURES

    ★ Single / dual axis inclination measurement

    ★ Range ± 1 ~ ± 90 ° optional

    ★ Accuracy: Refer to data table

    ★ DC 9 ~ 36V wide voltage input

    ★ Wide temperature operation -40 ~ + 85 ℃

    ★ Resolution 0.001 °

    ★ IP67 protection grade

    ★ High vibration resistance> 100g

    ★ Direct lead interface


    ▶ ELECTRONIC CHARACTERI

    PARAMETERSCONDITIONSMINSTANDARDMAXUNIT
    Power supplyStandard912,2436V
    Working currentNo load40mA
    Working temperature-40+85
    Store temperature-40+85

    MECHANICAL PARAMETERS

    ○ Connector: 1m Direct Leading Cable ( Can Be Customized)

    ○ Protection level: IP67

    ○ Shell material: aluminum alloy shield oxidation

    ○ Installation: Four M4 screws
