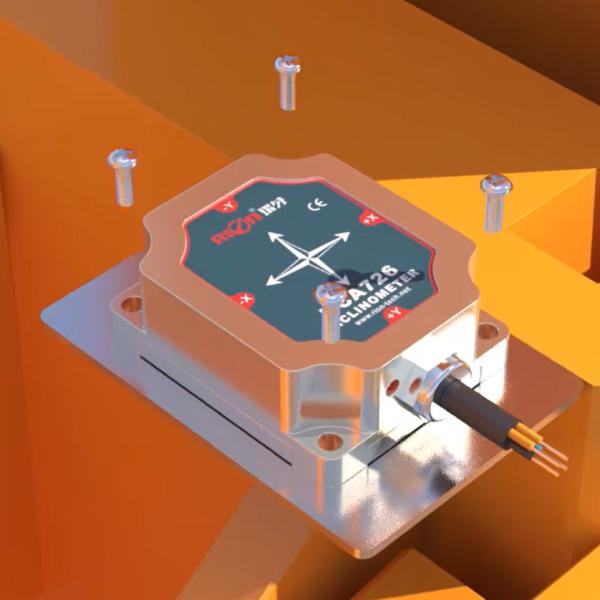

    Construction Vehicle High Accuracy Inclinometer 9-36v 0.001deg Resolution

    Ask Lasest Price
    Brand Name : Rion
    Model Number : HCA716S-30
    Certification : CE
    Price : $273.00/Pieces 1-9 Pieces
    Payment Terms : T/T, PayPal
    Supply Ability : 5000/month
    Delivery Time : 7
    • Product Details
    • Company Profile

    Construction Vehicle High Accuracy Inclinometer 9-36v 0.001deg Resolution

    incline meter for construction vehicle high precise sensor incline measure


    FEATURES

    ★ Single / dual axis inclination measurement

    ★ Range ± 1 ~ ± 90 ° optional

    ★ Accuracy: Refer to data table

    ★ DC 9 ~ 36V wide voltage input

    ★ Wide temperature operation -40 ~ + 85 ℃

    ★ Resolution 0.001 °

    ★ IP67 protection grade

    ★ High vibration resistance> 100g

    ★ Direct lead interface


    Technical Data

    HCA716/HCA726CONDITIONPARAMETERSUNIT
    Measure range±15±45±60±180°
    Measure axisX,YX,YX,YVertical Xaxis
    Resolution0.0010.0010.0030.005°
    Measure accuracy@25℃±0.008±0.01±0.01±0.01°
    Zero Temp.coefficient-40~85℃±0.0005±0.0005±0.0005±0.0005°/℃
    Sensitivity temp-coeffi-40~85℃≤0.01≤0.01≤0.01≤0.01%/℃
    Power on time0.50.50.50.5S
    Response frequency20HZ
    InterfaceTTL / RS232 / RS485 optional
    Communication protocolRION 68 protocol / MODBUS RTU protocol optional
    EMCAccording to EN61000 and GBT17626
    MTBF≥50000 hours/times
    Insulation Resistance≥100MΩ
    Shockproof100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    Protection gradeIP67
    CablesStandard configuration: 1m length, wear-resistant,oil-proof, wide temperature, shielded cable4*0.2mm2
    Weight≤150g (including 1 meter cable)

    ▶ ELECTRONIC CHARACTERI

    PARAMETERSCONDITIONSMINSTANDARDMAXUNIT
    Power supplyStandard912,2436V
    Working currentNo load40mA
    Working temperature-40+85
    Store temperature-40+85



    MECHANICAL PARAMETERS

    ○ Connector: 1m Direct Leading Cable ( Can Be Customized)

    ○ Protection level: IP67

    ○ Shell material: aluminum alloy shield oxidation

    ○ Installation: Four M4 screws


    DIMENSION
