    Crane Control Tilt Angle Sensor CAN2.0A Output IP67 Waterproof Protection

    Ask Lasest Price
    Brand Name : RION
    Model Number : HDA436T-CAN2.0A
    Certification : CE, ISO
    Price : $141.00/Pieces
    Payment Terms : T/T, PayPal
    Supply Ability : 5000/month
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    Crane Control Tilt Angle Sensor CAN2.0A Output IP67 Waterproof Protection

    crane angle control sensor

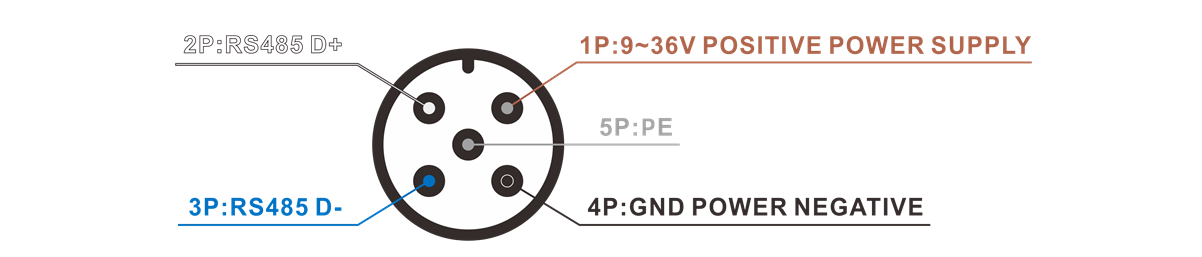

    ELECTRICAL CONNECTIONS

    RS485 WIRING DEFINITION

    PIN FUNCTION1 PIN(BROWN)2 PIN(WHITE)3 PIN(BLUE)4 PIN(BLACK)5 PIN(GRAY)

    9~36V

    POSITIVE POWER SUPPLY

    485 D+485 D-

    GND

    POWER NEGATIVE

    PE


    RS232/TTLWIRING DEFINITION

    PIN FUNCTION1 PIN(BROWN)2 PIN(WHITE)3 PIN(BLUE)4 PIN(BLACK)5 PIN(GRAY)

    9~36V

    POSITIVE POWER SUPPLY

    RS232_RX/

    TTL_RX

    RS232_TX/

    TTL_TX

    GND

    POWER NEGATIVE

    PE


    HDA436TCONDITIONINDEX
    Measure rangeRoll ±180°, pitch ±90°, azimuth ±180° (initial value at power-down is 0°)
    Measure axisX axis / Y axis / Z axis
    Resolution0.01°
    Static accuracy@25℃± 0.05°
    Dynamic accuracy@25℃± 0.1°
    Bias Instability (Allan)8°/h
    Zero point temp. coefficient-40~85℃±0.01°/℃
    Sensitivity temp. coefficient-40~85℃≤100ppm/℃
    Power-on startup time1S
    Response time0.01S
    Output signalRS485/RS232/TTL
    Electromagnetic compatibilityAccording to EN61000 and GBT17626
    MTBF≥ 50000 hours / time
    Insulation resistance≥100 Megohm
    Impact resistance100g @ 11ms,3 axial direction (half sinusoid)
    Anti-vibration10grms,10~1000Hz
    Waterproof levelIP67
    CableStandard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
    Weight≤165g (excluding cables)

    ▶ KEY FEATURES

    ★ Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)

    ★ Dynamic accuracy: ± 0.1°

    ★ DC 9~6V wide voltage input

    ★ Wide temperature operation -40~+ 85℃

    ★ Resolution 0.01°

    ★ IP67 protection level

    ★ High anti-vibration performance>2000g

    ★ Size: L72×W47×H22.5mm


    ELECTRICAL PARAMETERS

    PARAMETERCONDITIONMINTYPMAXUNIT
    Supply voltagestandard912,2436V
    Working currentwithout load60mA(12V)mA
    Operating temp-40+85
    storage temp-40+85

    PRODUCT SIZE
