    IP54 2 Axis Machine Tool Level Measurement Sensor

    Ask Lasest Price
    Brand Name : RION
    Model Number : DMI420-90
    Certification : CE
    Price : $248.00/Sets
    Payment Terms : T/T, Paypal
    Supply Ability : 30000 Set/Sets per Month
    Delivery Time : 5-10 work days
    • Product Details
    • Company Profile

    IP54 2 Axis Machine Tool Level Measurement Sensor

    Machine tool level measure sensor clinometers measure level for platform


    Specifications


    PARAMETERSDMI410 DMI420
    Angle measure range±180 °±90 °
    Length measure range0~±999.9mm/m0~±999.9mm/m
    Measure axisSingle axisDual axis
    Angle measure accuracy0.05 °(full range)0.05 °(full range)
    Angle measure resolution0.01°0.01°
    Length measure accuracy0.9mm/m(full range)0.17mm/m(full range)
    Length measure resolution0.17mm/m0.1mm/m
    LCD visible area sizeL40*W32mm
    Working temperature-10℃~ +70℃
    Working humidity85℃
    Power supply3.7V Charging Lithium battery
    Ideal charging time3h
    Battery continuous working time8h(±0.5)
    Data output signalStandard 5Pin USB connector
    Anti-vibration10g@11ms,3 Axial Direction (Half Sinusoid)
    Impact resistance10grms,10~100Hz
    Weight≤140g
    Waterproof levelIP54
    MaterialMetal aluminum
    SizeL83*W53*H19.2mm

    ▶ APPLICATION

    ★ Building construction

    ★ Automobile four-wheel testing

    ★ Road slope

    ★ Machinery installation

    ★ Piping installation

    ★ Industrial platform

    ★ Turntable testing

    ★ Cloud deck angle detection

    ★ Production jig

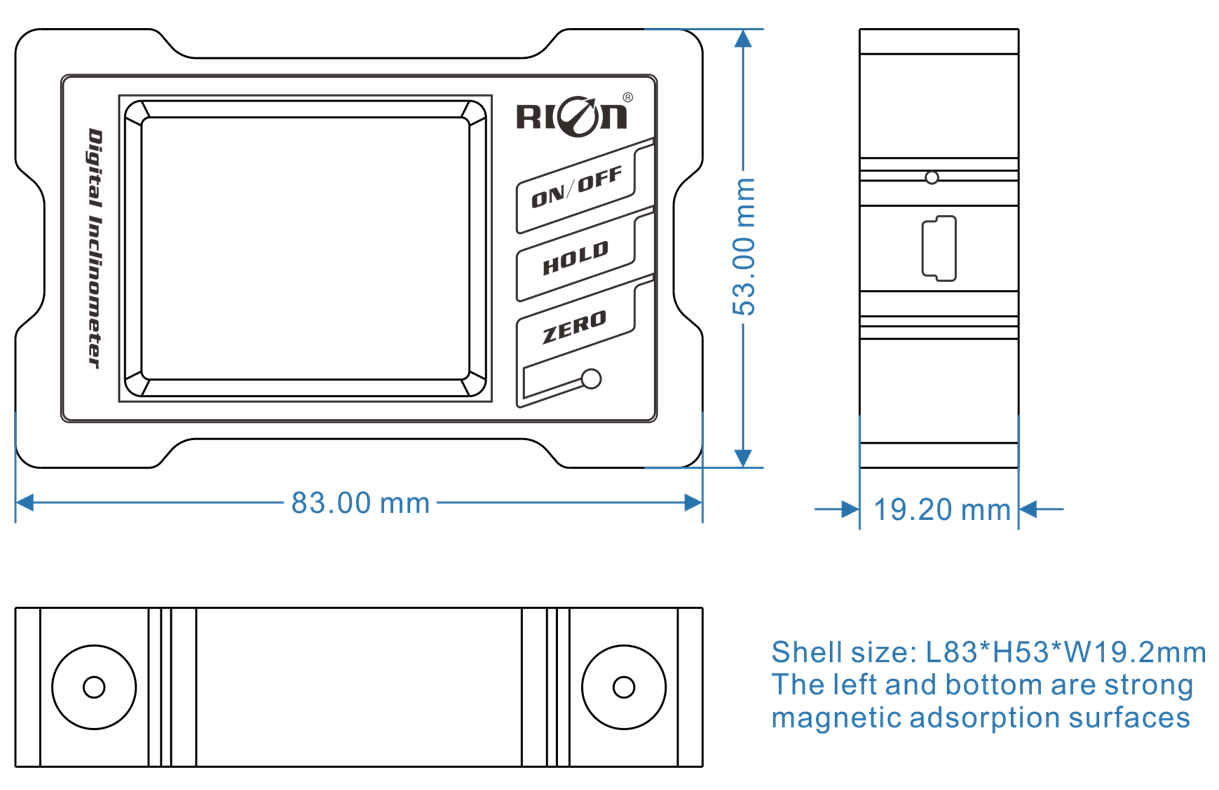

    ▶ DIMENSION


    ▶ MEASURING DIRECTION
