    High Accuracy Two Axis Inclinometer Tilt Angle Meter IP54

    Ask Lasest Price
    Brand Name : RION
    Model Number : DMI420
    Certification : CE
    Price : $234.00/Pieces
    Payment Terms : T/T, Paypal
    Supply Ability : 3000/month
    Delivery Time : 5 days for sample
    • Product Details
    • Company Profile

    High Accuracy Two Axis Inclinometer Tilt Angle Meter IP54

    high accuracy display tilt meter two axes clinometer


    Specification

    PARAMETERSDMI410 DMI420
    Angle measure range±180 °±90 °
    Length measure range0~±999.9mm/m0~±999.9mm/m
    Measure axisSingle axisDual axis
    Angle measure accuracy0.05 °(full range)0.05 °(full range)
    Angle measure resolution0.01°0.01°
    Length measure accuracy0.9mm/m(full range)0.17mm/m(full range)
    Length measure resolution0.17mm/m0.1mm/m
    LCD visible area sizeL40*W32mm
    Working temperature-10℃~ +70℃
    Working humidity85℃
    Power supply3.7V Charging Lithium battery
    Ideal charging time3h
    Battery continuous working time8h(±0.5)
    Data output signalStandard 5Pin USB connector
    Anti-vibration10g@11ms,3 Axial Direction (Half Sinusoid)
    Impact resistance10grms,10~100Hz
    Weight≤140g
    Waterproof levelIP54
    MaterialMetal aluminum
    SizeL83*W53*H19.2mm

    PRODUCT DESCRIPTION

    DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industry angle control and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,a and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability.

    Function

    ON/OFF: Press for 2seconds to power on or off ;

    HOLD: This key to lock the current data, convenient customer records;

    ZERO: This button can switch in the absolute and relative measurement mode;(screen display ABS means absolute status, display REL means relative measurement)

    HOLD & ZERO: Press HOLD button until the screen appear a small lock sign then press ZERO, can switch in “Angle” and “mm/m” two units of measurement;

    ON/OFF&HOLD: Press ON/OFF button until the screen to be black then press the HOLD button , can calibrate the accuracy according to the screen;

    ON/OFF&ZERO: Press ON/OFF button until the screen to be black then press the HOLD button , can calibrate the ZERO according to the screen;

    RESET HOLE: If the instrument occur a crash in working, key can't operation, can use the needlepoint hard object to insert into the hole for touch the button;

    USB JACK: For charging purposes or Angle of external connection, data transmission;

    WARNING LIGHT: Charging lights, lights up means is charging, light off mens has been filled with power then can take off the charger .( In order to keep the battery with a long life please don't use it as much as possible when it is charging with power.)

    Dimension

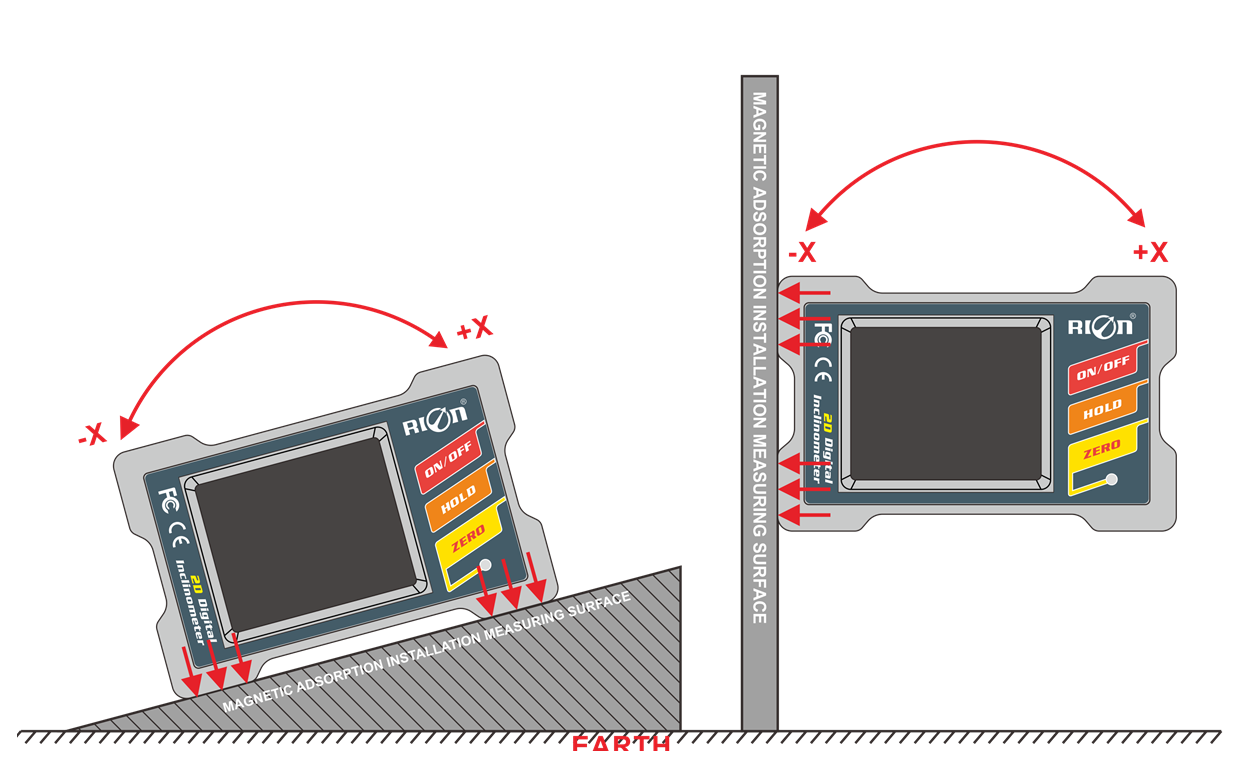

    Measure direction
