Name: air-plug
Brand: Weipu
Original: China

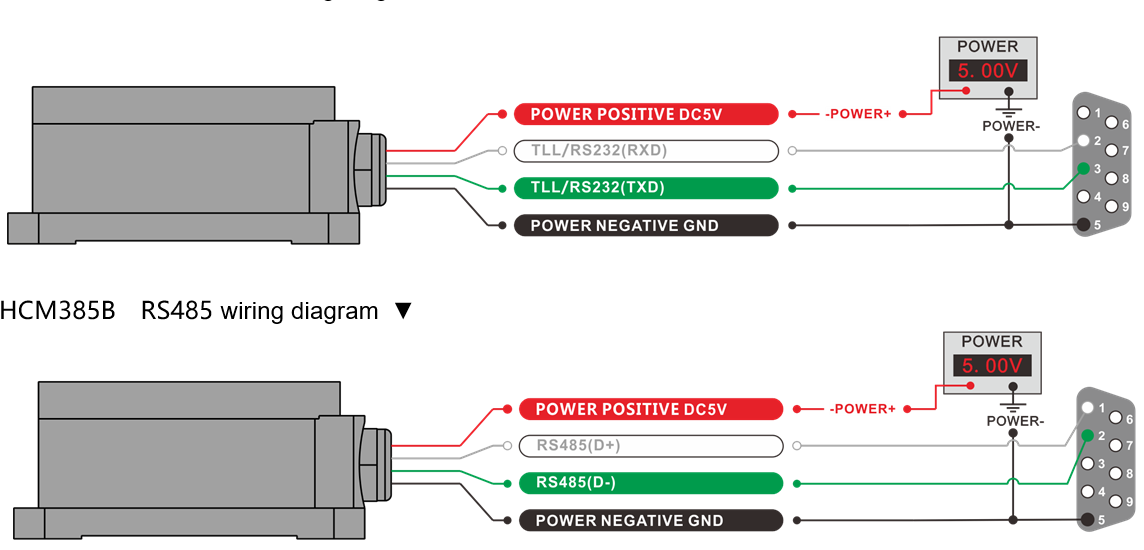

Cable Color Definition | BLACK | RED | YELLOW | GREEN |
GND Power negative | DC 5V Power positive | TTL/RS232(RXD) Or RS485(D-) | TTL/RS232(TXD) Or RS485(D+) |
Sign In | Join Free | My himfr.com |
|
Ask Lasest Price | |
Brand Name : | RION |
Model Number : | HCM385B-232 |
Certification : | CE, ISO |
Price : | $445.00/Units |
Payment Terms : | T/T, Paypal |
Supply Ability : | 1000 Unit/Units per Month compass sensor are avaliable |
Delivery Time : | 7 days for samples |
MAGNETIC COMPASS YAW HEADING ANGLE METER 3 AXIS TILTMETER
Parameter | |
The best heading accuracy | 0.5° tilt<10° 2.0° tilt >60° 2.5° tilt<70° |
Pitch accuracy | 0.1°<15°(Measuring range) 0.1°<30°(Measuring range) 0.1°<60°(Measuring range) 0.2°<90°(Measuring range) |
Pitch tilt range | ±85° |
Roll accuracy | 0.1°<15°(Measuring range) 0.1°<30°(Measuring range) 0.1°<60°(Measuring range) 0.2°<180°(Measuring range) |
Roll tilt range | ±180° |
Resolution | 0.1° |
Compass tilt the best compensation angle range | <60° |
Hard iron calibration | Yes |
Soft iron calibration | Yes |
Magnetic field interference calibration method | Plane rotation in 1circle(2D Calibration) |
Dimension | L110×W19.5×H19.5mm |
Weight | 20g |
RS-232/RS485/TTL interface connector | 5PINconnector |
Start delay | <50MS |
Maximum output rate | 20Hz/s |
Communication rate | 2400 to 19200baud |
Output format | Binary high performance protocol |
Power supply | (Default)DC+5V (Customized)DC9~36V |
Current(Maximum) | 40mA |
Ideal mode | 30mA |
Sleep Mode | TBD |
Operating range | -40℃~+85℃ |
Storage temperature | -40℃~+100℃ |
Resistance shock performance | 2500g |
Electromagnetic compatibility | According to EN61000 and GBT17626 |
MTBF | ≥40000 hours/times |
Insulation resistance | ≥100M |
Shock resistance | 100g@11ms,3Times/Axis(half sinusoid) |
Anti-vibration | 10grms,10~1000Hz |
Weight | 80g(not include cable) |
Name: air-plug
Brand: Weipu
Original: China
Cable Color Definition | BLACK | RED | YELLOW | GREEN |
GND Power negative | DC 5V Power positive | TTL/RS232(RXD) Or RS485(D-) | TTL/RS232(TXD) Or RS485(D+) |
