HCM385B cost-effective 3D electronic compass. With Hard And Soft Magnetic Calibration

Products Desc.

HCM380B/HCM385B-MP is a cost-effective 3D electronic compass. It adopts 24-point calibration method, which has stronger anti-interference and easy operation, and uses high-precision accelerometer for tilt compensation, so that it can provide high-precision heading information at any tool surface at roll within ±180 °For fixed interference, it can still provide high-precision measurement data, RS232, RS485, TTL multiple communication interface methods are optional.

The product integrates a three-axis magnetometer and a three-axis accelerometer, with high resolution and strong anti-noise capability. It is a high-performance, high-stability product with small size and low power consumption; It is widely used in many fields such as handheld devices, mobile devices, antenna stabilization, vehicles, and system integration. The product can be ordered with a sealed package or a circuit board.

Application :

★ Marine Navigation Mapping

★ Infrared Imager

★ ROV Underwater Robot Navigation

★ GPS Integrated Navigation

★ Oceanographic Tester

★ Map Complementary Plotter

★ Antenna Servo Control

Main Feature

★ Heading Accuracy: 0.5°

★ Roll Measure Range:±180°

★ Tilt Resolution: 0.1°

★ Tilt Accuracy: <0.2°(Full Range)

★ Working Temp.: -40℃~+85℃

★ Size : L57×W49×H25.5mm

★ With Hard And Soft Magnetic Calibration

★ RS232/RS485/TTL Output

HCM380B/HCM385B-MP PARAMETERS
Heading	Best heading Accuracy	0.5°
	Resolution	0.1°
Tilt	Pitch accuracy	0.1°<15°(Measure Range)
		0.1°<30°(Measure Range)
		0.1°<60°(Measure Range)
		0.2°<85°(Measure Range)
	Pitch range	±85°
	Roll accuracy	0.1°<15°(Measure Range)
		0.1°<30°(Measure Range)
		0.1°<60°(Measure Range)
		0.2°<180°(Measure Range)
	Roll range	±180°
	Resolution	0.1°
Calibration	Hard Magnetic Calibration	Available
	Soft Magnetic Calibration	Available
	Magnetic Filed Interference Calibration Method	24 calibration points

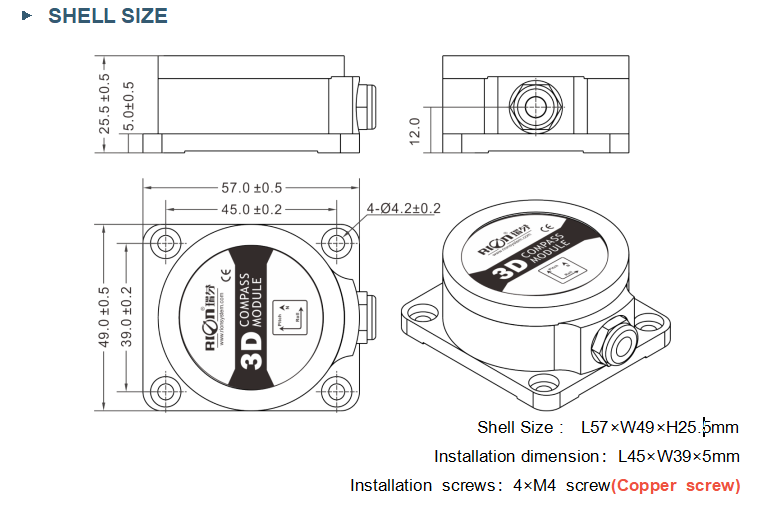

physical properties	Dimension	L57×W49×H25.5mm
	Weight	130g(not include cable)
	RS232/RS485/TTL	Direct lead cable
Interface features	Start Delay	<50ms
	Max Output Rate	20Hz/s
	Communication Rate	2400~115200baud
	Output Format	Binary High Performance Protocol
Power	Power Voltage	DC+5V
	Current(Max)	30mA
	Ideal Current	26mA
	Sleep Mode	TBD
Environment	Working Temp.	-40℃～+85℃
	Storage Temp.	-40℃～+85℃
	Anti-Shock Performance	100g
Protection	IP67
Electromagnetic Compatibility	According to EN61000 and GBT17626
MTBF	≥98000 Hour/Time
Insulation Resistance	≥100 MΩ
Anit-Impact	100g@11ms, Axial Direction (Half Sinusoid)
Anti--Shock	10grms,10～1000Hz

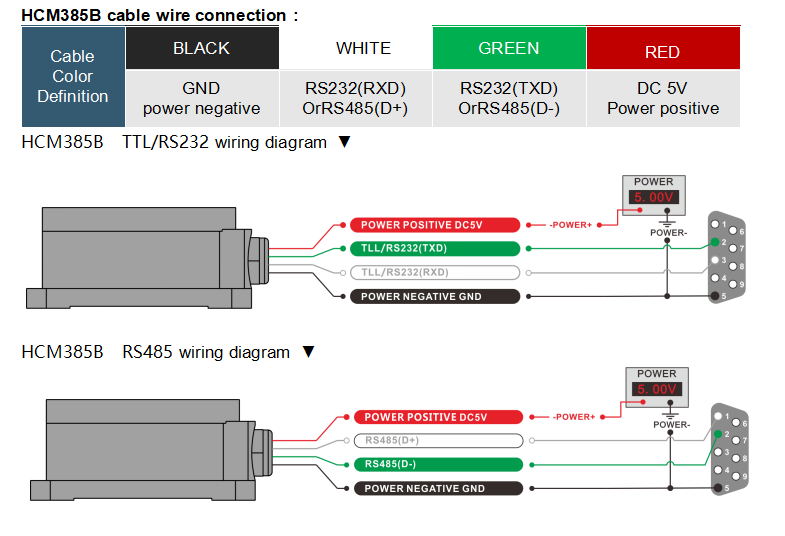

HCM380B single board cable wire connection :

Cable Color Definition	BLACK	RED	YELLOW	GREEN
	GND Power negative	DC 5V Power positive	TTL/RS232(RXD) Or RS485(D-)	TTL/RS232(TXD) Or RS485(D+)
