    RION IP54 2 Axes High Accuracy Digital Inclinometer

    Ask Lasest Price
    Brand Name : RION
    Model Number : DMI820-30
    Certification : CE, RHOS
    Price : $438.00/Pieces >=1 Pieces
    Payment Terms : T/T, Paypal
    Supply Ability : 30000 Piece/Pieces per Week inclinometer for sale
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    RION IP54 2 Axes High Accuracy Digital Inclinometer

    Display clinometer 2 axes angle display precise angle monitor digital inclinometer


    Application :

    • Building construction
    • Automobile four wheel testing
    • Road slope
    • Machinery installation
    • Piping installation
    • Industrial platform
    • Turntable testing
    • Pan unit angle detection
    • Production jig
    • Medical instruments

    Features:

    • Accuracy:<0.003°
    • Repeatability:0.003°
    • Angle resolution:0.00
    • Measuring range:±15°,+/-30°
    • User can set the alarm value by himself
    • °/mm/m Dual units switch funciton
    • Filter frequency optional
    • Three kinds of measurement mode selectable (radian, angle, mm)
    • Data store function
    • Absolute/Relative measurement can switch
    • Both sides and bottom can measure
    • Auto temperature drift compensation
    • User can calibrate ZERO by himself
    • Built-in rechargable industy battaries
    • Night vision fours colors screen
    • IP54 protection class

    RION IP54 2 Axes High Accuracy Digital InclinometerPARAMETERDMI810DMI820UNIT
    Angle Measure range±15 °±30 °±15 °±30 °°
    MM measure range267577267577mm/m
    Meausre axisSingle axisSingle axisSingle axisSingle axis
    Highest measurement accuracy (full range)<0.005<0.01<0.005<0.01°(RMS)
    Angle Measure resolution0.0010.0010.0010.001°
    Repeatability0.0030.0030.0030.003°
    MM measure accuracy0.10.20.10.2mm/m
    Three measurement mode selectable

    ①Angle ②degree, minute, second ③mm/m

    three modes can be set

    /
    MM measure res0.02mm/m
    LCD64 true colors night vision display screen/
    LCD visible area sizeL57.6*W43.2mm
    Working temperature-10°~ +70℃
    Working humidity85%RH
    Power supply3.7V Charging Lithium batteryV
    Ideal charging time5h
    Battery sustainable charging times11h
    Equipped with PC softwareVC software/
    Data output signalUSB1.1 (Virtual Serial Device)/
    Connect plug inStandard USB connector, rechargeable/
    Shock resistance10g@11ms,3 Axial Direction (Half Sinusoid)g
    Shock impact10grms,10~100Hzg
    Waterproof gradeIP54/
    MaterialAluminum alloy Anodizing/
    SizeL107*W75*H27.1mm
    Weight300g

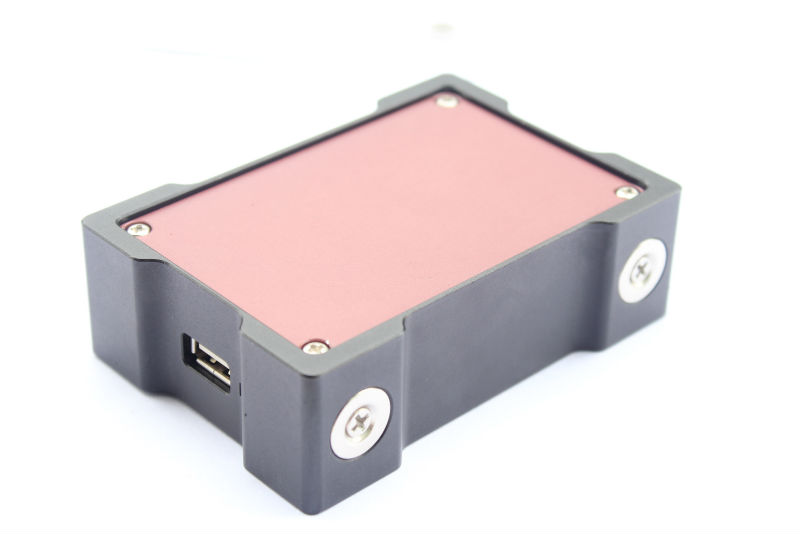

    Product & Packing Photos :

    RION IP54 2 Axes High Accuracy Digital Inclinometer


    RION IP54 2 Axes High Accuracy Digital Inclinometer


    RION IP54 2 Axes High Accuracy Digital Inclinometer


    Packing Size: L22*W12*H6mm

    Packing Weight : 0.8~1KGS


    RION IP54 2 Axes High Accuracy Digital InclinometerRION IP54 2 Axes High Accuracy Digital Inclinometer


    RION IP54 2 Axes High Accuracy Digital InclinometerRION IP54 2 Axes High Accuracy Digital Inclinometer
