HCA520 Dual Axis MEMS Linearity Tilt Sensor Inclinometer For Dam​

GENERAL DESCRIPTION

HCA510T/HCA520T-N is a high-precision analog voltage output single / dual axis inclination sensor. The highest precision in a small range can reach 0.003 °. It is one of the few high-precision inclinometers in China. Its function is mainly used to measure the inclination of the object based on horizontal plane.

Built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change,the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.

This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!

▶ TECHNICAL DATA

* This parameter only list ± 10 °, ± 30 ° series for reference. For other measurement ranges, please refer to the nearest neighbor parameter.

▶ FEATURES

★ Single / dual axis inclination measurement

★ Range ± 1～± 90° optional

★ Accuracy: Refer to technical data

★ Wide voltage input 9～36V

★ Output mode 0～5V

★ Wide temperature operation -40 ℃～+ 85 ℃

★ IP67 protection

★ High vibration resistance> 2000g

★ High resolution 0.001 °

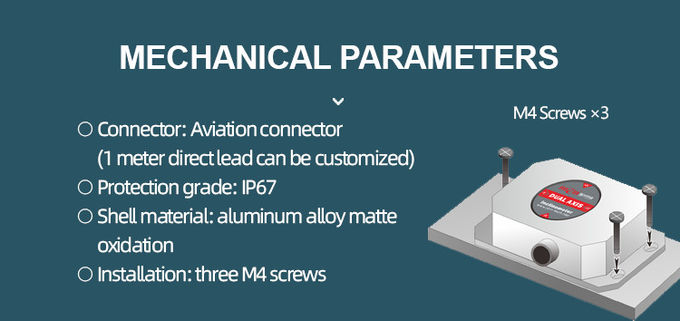

★ Small size L90 × W59 × H34mm

▶ APPLICATION

★ Equipment vehicle leveling

★ Bridge and Dam monitoring

★ High-altitude platform safety protection

★ Angle control of medical equipment

★ Attitude navigation of underground drilling rig

★ Leveling of railway gauge and gauge

★ Direction measurement based on tilt angle

★ Tilt monitoring of geological equipment

★ Mining machinery, oil drilling equipment

★ Equipment level control

★ Alignment control , curve control

★ Pitch angle measurement of directional satellite communication antenna

ELECTRICAL CONNECTION

SINGLE AXIS CABLE WIRE CONNECTION
