One Axis Analog Inclinometer Sensor 35V Voltage Vehicle Leveling

▶ FEATURES

★ Single / dual axis inclination measurement ★ Range ± 1 ～ ± 60 ° optional

★ Accuracy: Refer to technical data ★ Wide voltage input 9 ～ 36V

★ Output mode 0 ～ 5V ★ Wide temperature operation -40 ～ + 85 ℃

★ IP67 protection ★ High vibration resistance> 2000g

★ High resolution 0.001 ° ★ Small size L90mm × W50mm × H34mm (customizable)

▶ APPLICATION

★ Equipment vehicle leveling ★ Bridge and Dam monitoring

★ High-altitude platform safety protection ★ Angle control of medical equipment

★ Attitude navigation of underground drilling rig ★ Leveling of railway gauge and gauge

★ Direction measurement based on tilt angle ★ Tilt monitoring of geological equipment

★ Pitch angle measurement of directional satellite communication antenna

★ Mining machinery, oil drilling equipment ★ Equipment level control

★ Alignment control , curve control

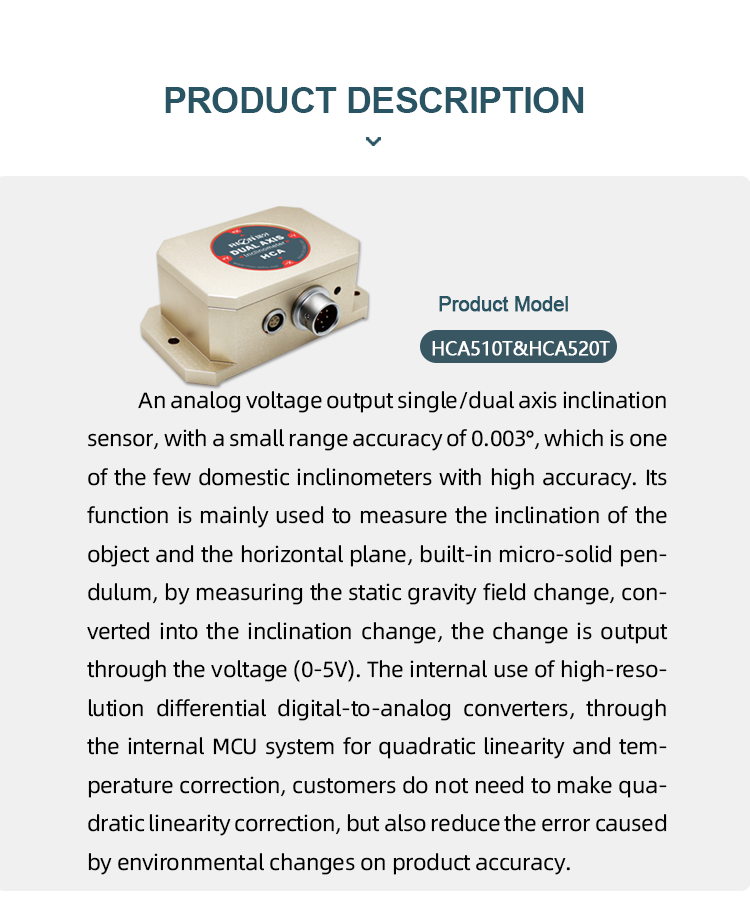

HCA510T & HCA520T is a high-precision analog voltage output single / dual axis inclination sensor. The highest precision in a small range can reach 0.003 °. It is one of the few high-precision inclinometers in China. Its function is mainly used to measure the inclination of the object based on horizontal plane.

Built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change,the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.

This product uses non-contact measurement principle, can real-time output current posture inclination,Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!

HCA510&520T	CONDITION	PARAMTERS			UNIT
Measure range		±10	±30	±60	°
Measure axis		X	X	X
Zero output	0° output	2.5	2.5	2.5	V
Resolution		0.001	0.001	0.001	°
Measure accuracy	@25℃	0.005	0.01	0.02	°
Long term stability		0.01	0.02	0.05	°
Zero Temp. coefficient	-40～85℃	±0.002	±0.002	±0.002	°/℃
Sensitivity temp. coefficient	-40～85℃	≤100	≤100	≤100	ppm/℃
Power on time		0.5	0.5	0.5	S
Response time		0.02	0.02	0.02	s
Response frequency		1～20	1～20	1～20	Hz
EMC	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection glass	IP67
Cables	Standard configuration: 1m length, wear-resistant, wide temperature, shielded cable 5*0.4mm2 aviation connector
Weight	190g(without cable )

HCA520T engineer vehicle leveling highly accurate MEMS voltage tilt sensor
