    Triaxial DCM301B Digital Compass Module Plane Calibration Magnetometer

    Triaxial DCM301B Digital Compass Module Plane Calibration Magnetometer


    General Description


    DCM301B is a high precision 3D electronic compass using the 2D plane calibration algorithm, the calibration no need 3D posture tilt , just flat-situ rotation a circle to complete the calibration process. make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM301B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±90°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.


    Features:

    • Heading accuracy:0.5°~0.8°
    • Tilt angle measuring range :±90°
    • Tilt angle resolution: 0.1°
    • Tilt angle accuracy: 0.3°
    • Wide temperature : -40°C~+85°C

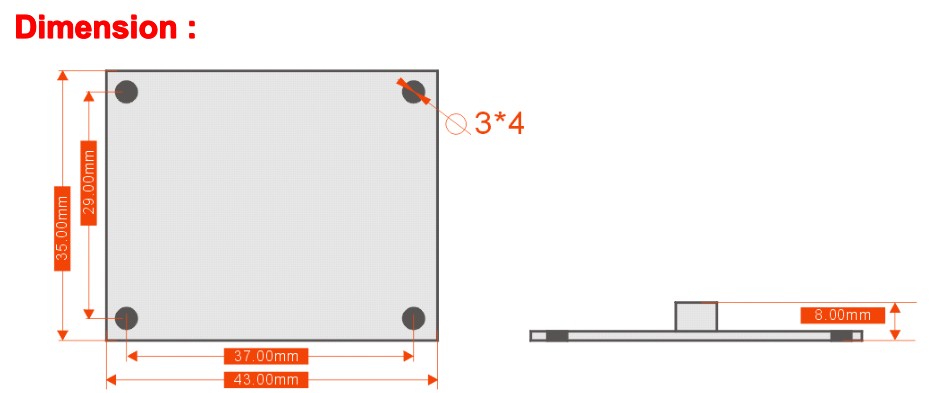

    • Size: L43×W35×H8mm
    • With hard magnetic ,soft magnetic and angle compensation
    • DC 5V power supply
    • 2D tilt calibration
    • Standard RS232/RS485/TTL output interface

    Application :

    • Satellite antenna search satellite
    • Marine navigation surveying and mapping
    • GPS integrated navigation
    • Antenna servo control
    • Infrared imager
    • Laser range finder
    • Map for plotter
    • ROV underwater robot navigation
    • Oceanography measurement instruments
    • Special occasion robot

    DCM301B&DCM302BPARAMETER
    Compass headingThe best heading accuracy(RMS)0.5° tilt<10°
    1.0° tilt<30°
    2.0° tilt<40°
    2.5° tilt<70°
    Resolution0.1°
    Compass tilt parameterPitch accuracy(RMS)0.1°<15°(Measure range)
    0.2°<30°(Measure range)
    0.3°<60°(Measure range)
    0.3°<85°(Measure range)
    Pitch tilt range±85°
    Roll accuracy(RMS)0.1°<15°(Measure range)
    0.2°<30°(Measure range)
    0.3°<60°(Measure range)
    0.3°<85°(Measure range)
    Roll tilt range±85°
    Resolution0.1°
    The best tilt compensation range<40°
    CalibrationHard iron calibrationYes
    Soft iron calibrationYes
    Magnetic field interference calibration methodPlane rotation in 1circle(2D Calibration)
    Physical featuresDimensionL60×W59×H29mm
    WeightPCB:20g,with shell:100g
    RS-232/RS485/TTL interface connector5PINconnector
    Interface featuresStart delay<50MS
    Maximum output rate20Hz/s
    Communication rate2400 to 19200baud
    Output formatBinary high performance protocol
    PowerPower supply(Default)DC+5V
    (Customized)DC9~36V
    Current(Maximum)40mA
    Ideal mode30mA
    Sleep ModeTBD
    EnviromentOperating range-40℃~+85℃
    Storage temperature-40℃~+85℃
    Resistance shock performance2500g
    Electromagnetic compatibilityAccording to EN61000 and GBT17626
    MTBF≥40000 hours/times
    Insulation≥100M
    Anti-shock100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
