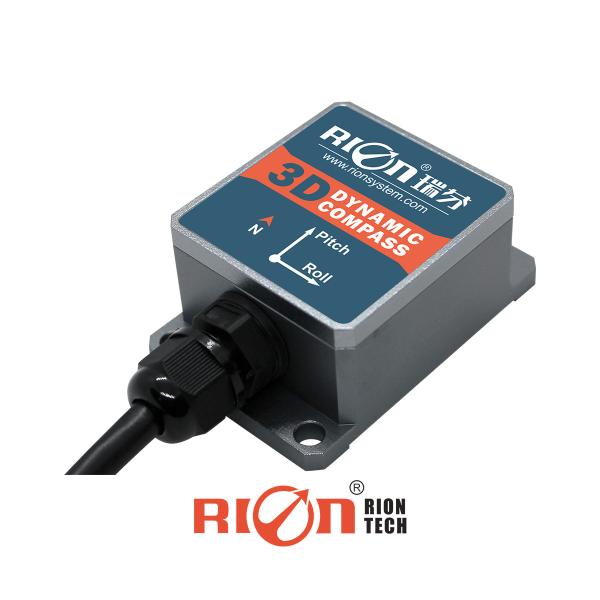

    DCM250B/260B three-dimensional small size, electronic compass 3D DIGITAL COMPASS

    Ask Lasest Price
    Model Number : DCM260
    Brand Name : RION
    Supply Ability : 100000 Piece/Pieces per Month
    Price : $80.00 - $109.00/Pieces
    Certification : CE, ISO
    Payment Terms : T/T, PAYPAL
    Delivery Time : 7 days for sample
    • Product Details
    • Company Profile

    DCM250B/260B three-dimensional small size, electronic compass 3D DIGITAL COMPASS

    DCM250B/260B three-dimensional small size, electronic compass 3D DIGITAL COMPASS


    General Description


    DCM250B/260B is a low-cost three-dimensional electronic compass, using hard and soft magnetic calibration algorithm, so that the compass can eliminate the influence of magnetic field through the calibration algorithm in the environment with magnetic field interference. The DCM250B&260B integrates a three-axis fluxgate sensor, calculates the heading in real time through the central processor, and uses a three-axis accelerometer to perform heading compensation for a wide range of tilt angles, ensuring that the compass can also provide high accuracy at tilt angles up to ±85° Heading data. The electronic compass integrates high-precision MCU control and diversified output methods. The standard interfaces include RS232/RS485/TTL and other interfaces, and other communication interfaces can be customized.

    The DCM250B/260B is small size, low in power consumption, and can be used in many fields such as stable antennas, vehicles, system integration, etc. The high shock resistance and high reliability also make the compass work normally in extremely harsh environments, and is more suitable for today's Precision measurement integrated control system.


    Features:

    ★ Heading accuracy: 0.8°

    ★ Inclination measurement range: ±85°

    ★ Inclination resolution: 0.1°

    ★ Inclination accuracy: 0.2°

    ★ Temperature range: -40℃~+85℃

    ★ DC 5V power supply

    ★ With hard magnetic, soft magnetic and tilt compensation

    ★ Standard RS232/RS485/TTL output interface


    Application :

    ★ Navigation surveying

    ★ Satellite antenna searching

    ★ GPS combined navigation

    ★ Antenna servo control

    ★ Infrared imager

    ★ Special occasion robots

    ★ ROV underwater robot navigation

    ★ Laser rangefinder

    ★ Mapping

    DCM250B Parameters

    Compass heading parametersHeading accuracy0.8°
    Resolution0.1°
    Compass inclination parameterPitch accuracy0.1°<15°(measure range)
    0.2°<30°(measure range)
    0.3°<60°(measure range)
    Pitch range±85°
    Rolling accuracy0.1°<15°(measure range)
    0.2°<30°(measure range)
    0.3°<60°(measure range)
    Roll range±85°
    Resolution0.1°
    Tilt compensation angle range<40°
    calibrationHard iron calibrationYes
    Soft iron calibrationYes
    Magnetic field interference calibration methodRotate horizontally one round (2D calibration)

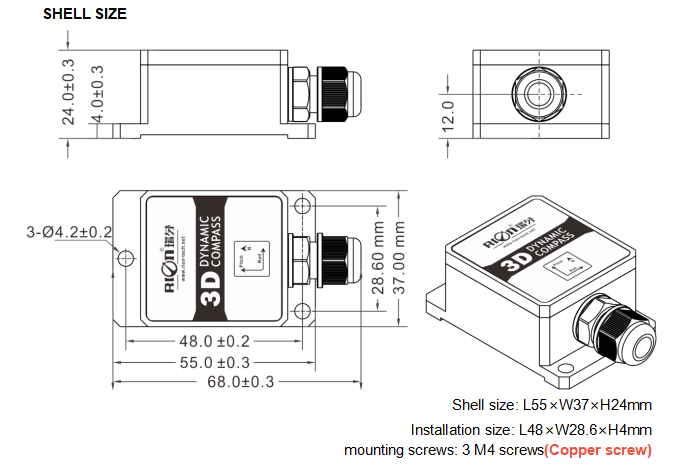

    PCBA sizeL33×W27×H9mm
    RS232/RS485/TTLPCBA: 4PIN 30cm terminal cable
    InterfaceStart delay<50mS
    Output rate20Hz/s
    Baud rate2400 to 19200baud
    Output formatBinary high-performance protocol
    Power supplySupply voltage(default) DC+5V
    (optional) DC 9~36V
    Current (MAX)45mA
    Ideal mode35mA
    Sleep modeTBD
    EnvironmentOperating range-40℃~+85℃
    Storage temperature-40℃~+85℃
    Anti-vibration performance2500g
    EMCAccording to EN61000 and GBT17626
    MTBF≥98000 hours/time
    Insulation resistance≥100MΩ
    Impact resistance100g@11ms, three direction (half sinusoid)
    Anti-vibration10grms10~1000Hz
    WeightPCBA:≤25g (excluding cable)
