▶ KEY FEATURES

★ Azimuth angle output ★ Strong vibration resistance ★ Light weight

★ Long life,strong stability ★ Cost-effective ★ All solid state

★ Compact & light design ★ CAN2.0A/CAN2.0B output optional ★ DC9~36V power supply

▶ APPLICATION

★ AGV truck ★ Car Navigation ★ 3D virtual reality

★ Platform stability ★ Auto safety system ★ Robot

★ Turck-mounted satellite antenna equipment ★ Industrial control

▶ GENERAL DESCRIPTION

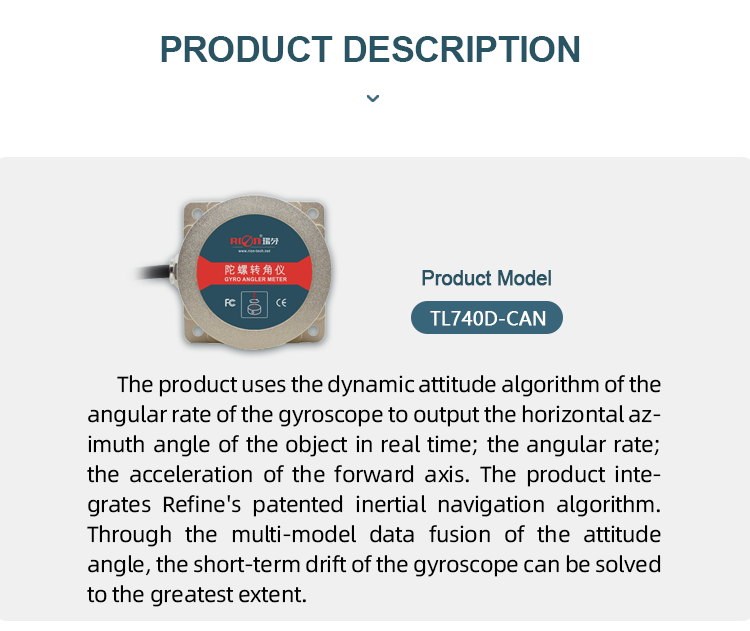

TL740D is RION-TECH newly developed horizontal azimuth angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s azimuth angle .The product inernal integrated RION-TECH Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .

This product is specially used for robot car, AGV vehicle azimuth orientation, attitude control and other related applications , instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.

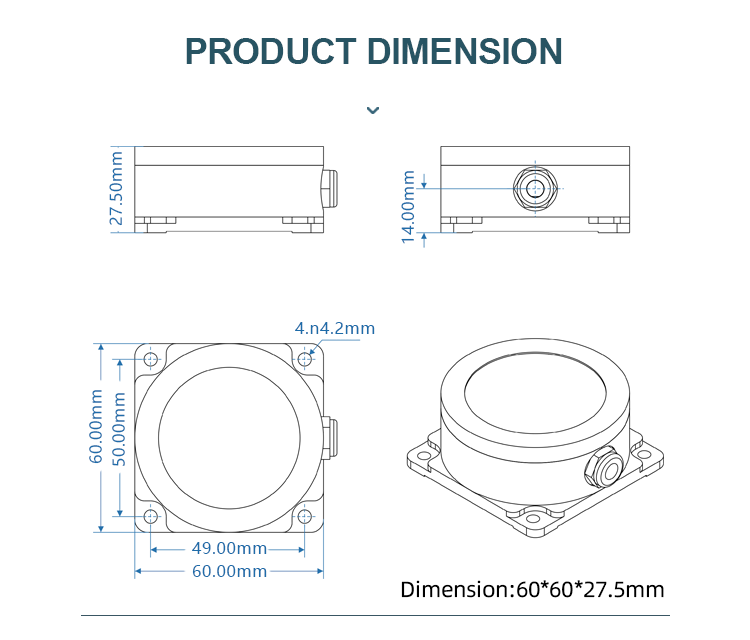

TL740D	PARAMETERS
Mesure range	Azimuth Angle (±180°)
Acquisition bandwidth	>100Hz
Resolution	0.01°
Azimuth accuracy	<0.1°/min
positional accuracy	<2mm/m (converted from angle accuracy)
Nonlinear	0.1% of FS
Max angle rate	150°/s
Accelerometer range	±4g
Acceleroemter resultuion	0.001g
Acceleroemter accuracy	5mg
Starting time	5s(Static)
Input Voltage	+9V~36V
Current	60mA(12V)
Working Temp.	-40 ~ +85℃
Storage Temp.	-40 ~ +85℃
Vibration	5g~10g
Impact	200g pk,2ms,½sine
Working life	10 years
Output rate	1Hz~100Hz can set
Output signal	CAN2.0A / CAN2.0B
MTBF	≥50000 hours /times
Insulation resistance	≥100 Megohm
Impact resistance	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protecting	IP67
Weight	130g(Without cable)
