12v power supply vibration sensor 3 axis accelerometer price

▶ PERFORMANCE

AKG392	PARAMETERS						UNIT
Range	±2	±4	±8	±10	±20	±40	g
Bias calibration	<1	<1	<1	<1	<1	<1	mg
Measure axis	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	X,Y,Z	axis
Power on/off repeatability	<2	<2	<2	<2	<2	<2	mg(max)
Bias temperature coefficient	0.15	0.15	0.15	0.75	0.75	0.75	%/℃(typical)
Resolution/threshold (@ 1Hz)	< 1	< 1	< 1	< 1	< 1	< 1	mg(max)
Non-linearity	<0.5	<0.8	<1	<1	<1	<1	% FS(max)
Bandwidth (3DB)	500	500	500	500	500	500	Hz
Cross axis sensitivity	1	1	1	2	2	2	%
Transverse vibration sensitivity ratio	1	1	2	5	5	5	%
Resonance frequency	2.4	2.4	2.4	5.5	5.5	5.5	kHz
Output rate	5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
Output Interface	RS232/RS485/TTL
Protocol	RION 68 protocol and MODBUS RTU protocol
Reliability	MIL-HDBK-217,Grade 2
Impact resistance	100g@11ms, 3 Axial Direction (Half Sinusoid)
Recovery Time	<1ms(1000g, 1/2 sin 1ms, Impact on the i-axis)
Vibration	20g rms,20~2000Hz (Random noise, o, p, i acts on each axis for 30 minutes)
Input(VDD_VSS)	9~36 VDC
Operating current consumption	<60mA @ 12 VDC
Connector	Industry standard M12 connector
Weight	Product net weight: 82g, Magnetic base: 48g, L-shaped adapter plate 20g

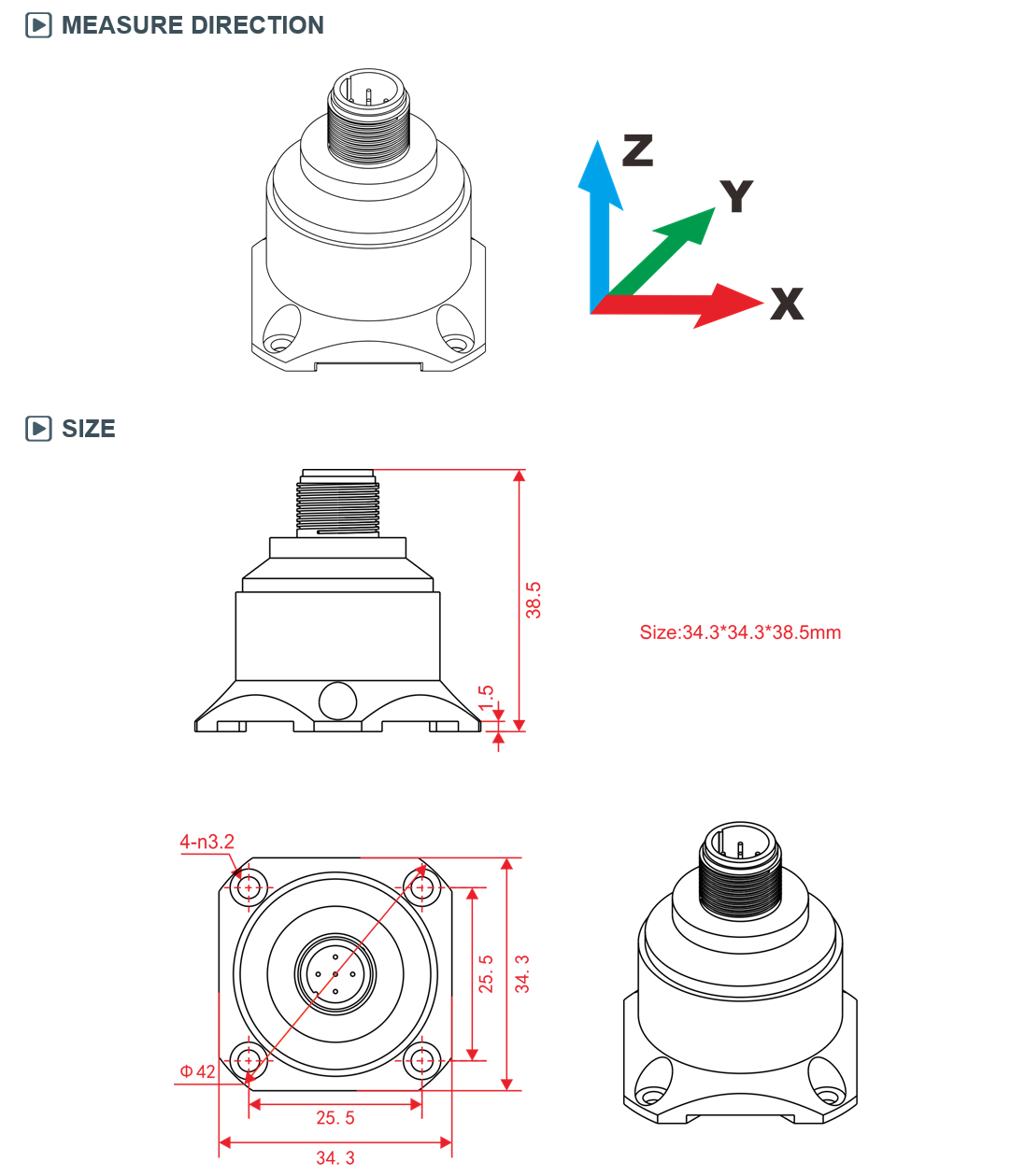

Size	Product size: 34.3*34.3*38.5mm Magnetic adsorption base size: 34.23*34.23*6mm L-shaped adapter plate size: 36*44*4mm

▶ VIBRATION PARAMETER INDEX

The product's vibration frequency, speed, and displacement are derived from data analysis, where frequency is the main frequency

of the current object vibration frequency, speed is the maximum vibration speed, and displacement is the maximum amplitude value

of the object vibration. Because of the irregularity of the object vibration, the data is only used reference.

The AKG392 triaxial accelerometer is a new accelerometer independently developed and produced by Rion Technology applied in wide range of applications, which covers many fields such as vibration testing and impact testing. The product adopts digital interface output with options as RS232/485/TTL. Different address codes can be set, multiple accelerometers can be installed in series for long distance, which is convenient for multi-point measurement and data analysis. Internal FFT processing can directly output the object vibration frequency and speed and displacement, convenient for users to analyze data. The vibration, frequency, speed, and displacement of objects below 4HZ are uncertain values and have no reference value. AKG392 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibration, sturdy structure, and stable output. The new electronic configuration provides solid-state power for reset and protection from over-voltage. The long-term stability and deviation of the scale factor in the full-scale range are typically less than 0.1%. This series of products have the characteristics of sturdy structure, low power consumption, and excellent deviation stability, ensuring stable output reliability.
