    HCM370B 3D Digital Compass IP67 1.6cm Tilt Sensor For Underwater Robot

    HCM370B 3D Digital Compass IP67 1.6cm Tilt Sensor For Underwater Robot

    Products Desc.

    HCM370B-HCM375B is a high accuracy 3D digital compass of strip shape, its length is
    only 1.6cm, IP67 protection grade, suitable for many harsh environment such as drilling
    measurement. it adopts advanced hard iron and soft iron calibration algorithm, it can provide
    the high precision heading value output when both pitch and roll angle at any angle within 360°.
    it is small and low power consumption, suitable for current miniaturization sensitive
    measurement system. Sealed complete item and signal board are available.
    HCM370B-HCM375B integrated patented three -axis flux-gate technology. It calculates
    heading value in real-time by CUP, and perform heading value compensation in wide tilt range
    by using three axis accelerometer. It is high performance and excellent stability
    compass sensor. Its volume is small, power consumption is low. It could widely used in many
    application such as antenna installation, vehicle and integrated system, and so on.

    Main Feature
    ●heading accuracy: 0.3°~0.5°
    ●roll&pitch measuring range:±180°
    ●tilt resolution: 0.1°
    ●tilt accuracy: <0.2°(full range)
    ●working temp.: -40℃~+85℃
    ●size: L110×W19.5×H19.5mm
    ●with hard and soft magnetic calibration
    ●RS232/RS485/TTL output
    Application :

    ●Satellite antenna search satellite
    ●Marine navigation surveying and mapping
    ●GPS integrated navigation
    ●Antenna servo control
    ●Infrared imager
    ●Laser range finder
    ●Map for plotter
    ●ROV underwater robot navigation
    ●Oceanography measurement instruments
    ●Special occasion robot

    Parameter
    The best heading accuracy
    0.5° tilt<10°
    2.0° tilt >60°
    2.5° tilt<70°
    Pitch accuracy
    0.1°<15°(Measuring range)
    0.1°<30°(Measuring range)
    0.1°<60°(Measuring range)
    0.2°<90°(Measuring range)
    Pitch tilt range
    ±85°
    Roll accuracy
    0.1°<15°(Measuring range)
    0.1°<30°(Measuring range)
    0.1°<60°(Measuring range)
    0.2°<180°(Measuring range)
    Roll tilt range
    ±180°
    Resolution
    0.1°
    Compass tilt the best compensation angle range
    <60°
    Hard iron calibration
    Yes
    Soft iron calibration
    Yes
    Magnetic field interference calibration method
    Plane rotation in 1circle(2D Calibration)

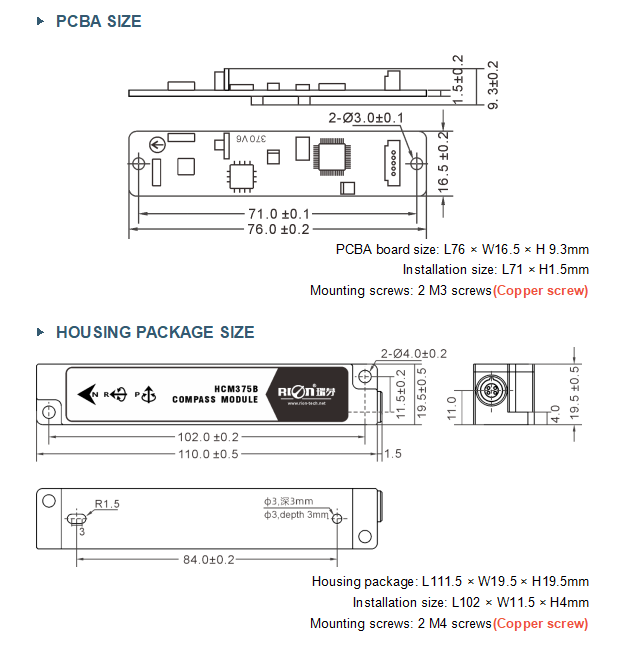

    Dimension
    L110×W19.5×H19.5mm
    Weight
    20g

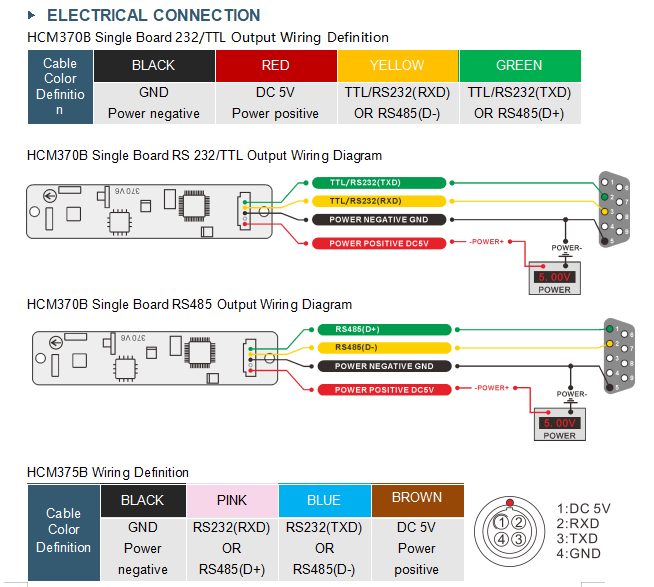

    RS-232/RS485/TTL interface connector
    5PINconnector
    Start delay
    <50MS
    Maximum output rate
    20Hz/s
    Communication rate
    2400 to 19200baud
    Output format
    Binary high performance protocol
    Power supply
    (Default)DC+5V
    (Customized)DC9~36V
    Current(Maximum)
    40mA
    Ideal mode
    30mA
    Sleep Mode
    TBD
    Operating range
    -40℃~+85℃
    Storage temperature
    -40℃~+100℃
    Resistance shock performance
    2500g
    Electromagnetic compatibility
    According to EN61000 and GBT17626
    MTBF
    ≥40000 hours/times
    Insulation resistance
    ≥100M
    Shock resistance
    100g@11ms,3Times/Axis(half sinusoid)
    Anti-vibration
    10grms,10~1000Hz
    Weight
    80g(not include cable)
