    HCM385B 3D Digital Compass Sensor 30mA DC5V For Satellite Antenna Searching

    HIGH ACCURACY 3D DIGITAL COMPASS SENSOR

    2020 New Type NMEA0183 High Accuracy 3D Compass Sensor For Satellite Antenna Searching

    PRODUCT DESCRIPTION


    HCM380B / HCM385B is a high-precision 3D compass sensor, and the protection reaches

    IP67 level. Using advanced hard and soft iron calibration algorithms, make any tool surface

    with a roll angle of 360 ° can still provide high-precision heading information. With the

    characteristics of small size and low power consumption, it is more suitable for today's

    miniaturized sensitive measurement systems. The product can be ordered with a complete

    sealed casing or a circuit board.

    HCM380B / HCM385B integrates three-axis magnetic flux gate technology. It uses a central

    processing unit to calculate heading data in real time, and uses a three-axis accelerometer

    to compensate for a wide range of tilt angles. HCM380B / HCM385B has been widely

    used in many fields such as stable antennas, vehicles, and system integration.


    KEY FEATURES

    ● Azimuth accuracy: 0.3°~0.5°

    ● Rolling angle measurement range: ± 180 °

    ● Tilt resolution: Reference performance index

    ● Tilt accuracy: <0.2 ° (full range)

    ● Wide temperature range: -40 ℃~+ 85 ℃

    ● Standard RS232 / RS485 / TTL output interface

    ● With hard magnetic, soft magnetic and tilt compensation


    APPLICATION


    ● Satellite Antenna Searching ● Navigation Navigation Mapping

    ● GPS Integrated Navigation ● Antenna Servo Control

    ● Unmanned aerial vehicle ● Artillery launch system

    ● Infrared imager ● Laser rangefinder

    ● Map complementer ● ROV underwater robot navigation

    ● Oceanographic Tester ● Special occasion robot


    TECHNICAL DATA


    HCM380B/HCM385B Parameters
    Compass headingBest heading accuracy0.5° tilt <10°
    2.0° tilt<60°
    3.0° tilt<80°
    Resolution0.1°
    Compass tilt anglePitch accuracy0.1°<15°(Measure range )
    0.1°<30°(Measure range)
    0.1°<60°(Measure range)
    0.2°<90°(Measure range)
    Pitch measure range±85°
    Roll accuracy0.1°<15°(Measure range)
    0.1°<30°(Measure range)
    0.1°<60°(Measure range)
    0.2°<180°(Measure range)
    Roll measure range±180°
    Resolution0.1°
    CalibrationHard iron calibrationYes
    Soft iron calibrationYes
    Soft Magnetic field interference calibration method

    Horizontal rotation 360 °;

    vertical rotation (optional)

    physical characteristicsDimensionL57×W49×H25.5mm
    Weight130g(without cable)
    RS232/RS485/TTL interfaceDirect leading cable
    Interface characteristicsStart delay<50ms
    Max output20Hz/s
    Communication rate2400 ~115200baud
    Output formatBinary high performance protocol
    Power supplyPower voltage(default)DC+5V
    Current (max)30mA
    Idea mode26mA
    Sleep modeTBD
    EnvironmentWorking temperature-40℃~+85℃
    Storage temperature-40℃~+85℃
    Anti vibration performance100g
    Protective performanceIP67
    Electromagnetic compatibilityAccording to EN61000 and GBT17626
    MTBF≥40000 hours/time
    Insulation resistance≥100 Mega ohm
    Impact resistance100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti vibration10grms,10~1000Hz

    PRODUCT SIZE

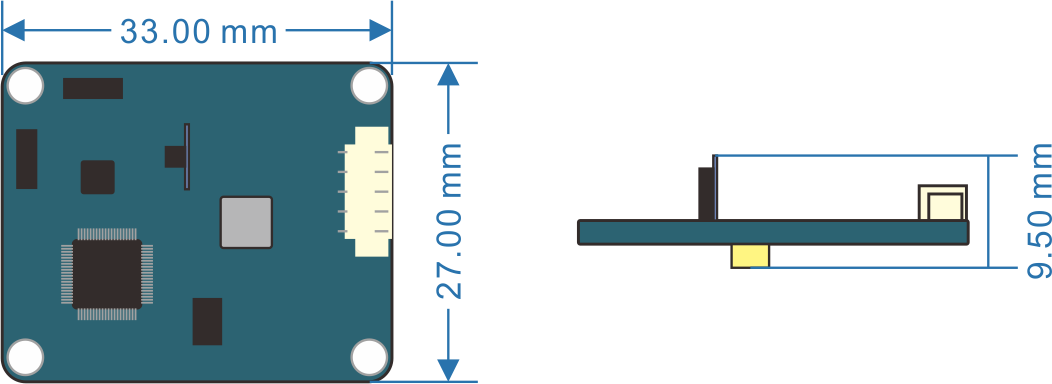

    ▶ PCBA BOARD SIZE

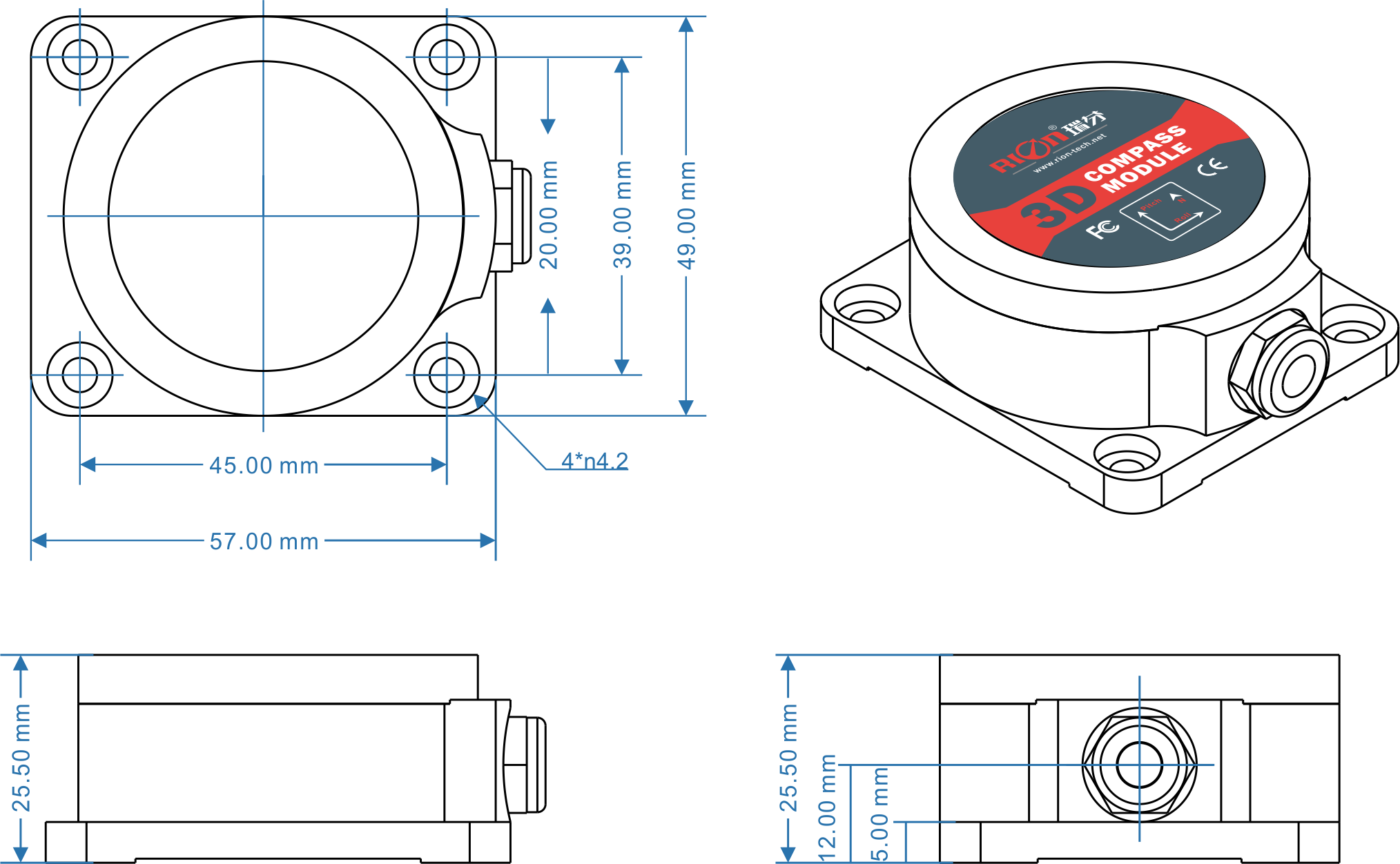

    ▶ SHELL SIZE


    ELECTRICAL CONNECTION


    HCM380B PCBA board cable wire connection :

    Cable Color

    Definition

    BLACKREDYELLOWGREEN

    GND

    Power negative

    DC 5V

    Power positive

    TTL/RS232(RXD)

    Or RS485(D-)

    TTL/RS232(TXD)

    Or RS485(D+)
