    AKF398B High Reliable Industrial MEMS Based Accelerometer 2000Hz Vibration Sensor

    Ask Lasest Price
    Model Number : AKF398B-A1
    Brand Name : RION
    Price : $235.00/Pieces
    Certification : CE, ISO
    Payment Terms : T/T, PAYPAL
    Supply Ability : 3000/month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    AKF398B High Reliable Industrial MEMS Based Accelerometer 2000Hz Vibration Sensor


    AKF398B High Reliable Industrial MEMS Based Accelerometer 2000Hz Vibration Sensor

    The AKF398 triaxial accelerometer is a voltage output type accelerometer independently developed and produced by RION Technology, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, different address codes can be set, and multiple sensors are connected in series for a long distance, which is convenient for multi-point measurement and data analysis. AKF398 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

    ▶ PRODUCT FEATURES

    ★ Three axis (X,Y,Z)
    ★ output voltage: 4-20mA
    ★ power supply:9-36V
    ★ anti-impact:2000G
    working temperature: -40°C ~ +85°C
    ★ store temperature: -55°C ~ +100°C
    ★ size: L34.4×W34.4×H38mm
    ★ weight: 73.5g
    ★ excellent bias stability
    ★ Good environmental performance (impact, vibration and temperature)

    ▶ APPLICATION

    ★ Crash record, fatigue monitoring and prediction

    ★ Wind power generation

    ★ Traffic system monitoring, roadbed analysis and high-speed railway fault detection

    ★ Large machinery, engine

    ★Low frequency vibration and automatic monitoring

    ★ Medical equipment

    ★ Bridge

    ★ Vehicle

    ★ Road roller


    ▶ PRODUCT PARAMETERS
    Range
    ±2
    ±4
    ±8
    ±10
    ±20
    ±40
    g
    Deviation Calibration
    <1
    <1
    <1
    <1
    <1
    <1
    mg
    Measuring Axial
    X,Y,Z
    X,Y,Z
    X,Y,Z
    X,Y,Z
    X,Y,Z
    X,Y,Z
    axis
    Up/Off Power Repeatability
    <2
    <2
    <2
    <2
    <2
    <2
    mg(max)
    Sensitivity (± 10%)
    4
    2
    1
    0.8
    0.4
    0.2
    mA/g
    Deviation temperature coefficient
    0.01
    0.01
    0.01
    0.05
    0.05
    0.05
    %/℃
    Resolution/Threshold (@ 1Hz)
    < 1
    < 1
    < 1
    < 1
    < 1
    < 1
    mg(max)
    Nonlinearity
    <0.5
    <0.5
    <0.8
    <1
    <1
    <1
    % FS(max)
    Frequency response
    500
    500
    500
    500
    500
    500
    Hz
    Bandwidth (3Db)
    1000
    1000
    1000
    1000
    1000
    1000
    Hz
    Cross-axis sensitivity
    1
    1
    1
    2
    2
    2
    %
    Lateral vibration sensitivity ratio
    1
    1
    2
    5
    5
    5
    %
    Resonant frequency
    2.4
    2.1
    2.4
    5.5
    5.5
    5.5
    kHz
    noise density
    21
    21
    21
    86.6
    86.6
    86.6
    μg/√Hz
    0g output 12mA
    <0.005
    <0.005
    <0.005
    <0.003
    <0.003
    <0.003
    mA
    Output current
    4~20mA
    Reliability
    MIL-HDBK-217,grade two
    Shock Resistance
    100g@11ms,Triaxial And Identical (Half Sine Wave)
    Recovery Time
    <1ms(1000g, 1/2 sin 1ms, Shock Acting On The i Axis)
    Vibration
    20g Rms,20~2000Hz (Random Noise ,o ,p,i Per Axis For Action 30 Minutes )
    Input(VDD_VSS)
    9-36 VDC
    Running current consumption
    <60mA @ 12 VDC
    Connector
    Industrial Standard M12 Connector
    Weight
    73.5g

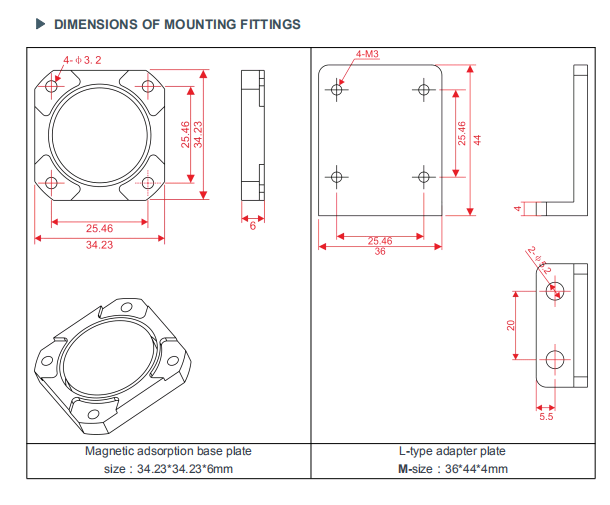

    Dimension
    34.3*34.3*38.5mm
