ACA826T Tilt Sensor Inclinometer Dual Axis Digital Inclinometer
CANopen
General Description
ACA816T/ACA826T is a single/dual-axis CANOPEN output inclinometer
with full temperature compensation and high precision specially
developed by RION Technology for the field of high-precision level
measurement, with a high resolution of 0.0005°, which can replace
traditional spirit level. Digital signal transmission, with
computer software, it can measure and record angle at the same
time. The characteristics of non-contact installation make
ACA816T/ACA826T highly compatible and easy to install. Just fix the
sensor on the surface of the object to be measured with screws, and
the inclination of the object can be automatically calculated. With
strong resistance to external electromagnetic interference and
strong ability to withstand shock vibration, it has a competitive
advantage over counterparts.
Adopt imported core control unit and apply the principle of
capacitive micro-pendulum. Using the principle of earth's gravity,
when the tilting unit tilts, the earth's gravity will produce a
gravitational component on the corresponding pendulum, and the
corresponding electric capacity will change. By amplifying and
filtering the electric capacity, the inclination is obtained after
conversion.

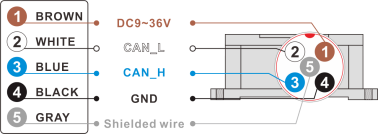

ELECTRICAL CONNECTION
COLOR
FUNCTION
BROWN
WHITE
BLUE
BLACK
GRAY
Vcc 9～36V
Powersupply positive
CAN_L
CAN_H
GND
Power
negative
Shielded wire
FAQ
Order Process :
Before order pls contact us for confirm detailed informaiton such
as model ,price ,lead time ...etc .
