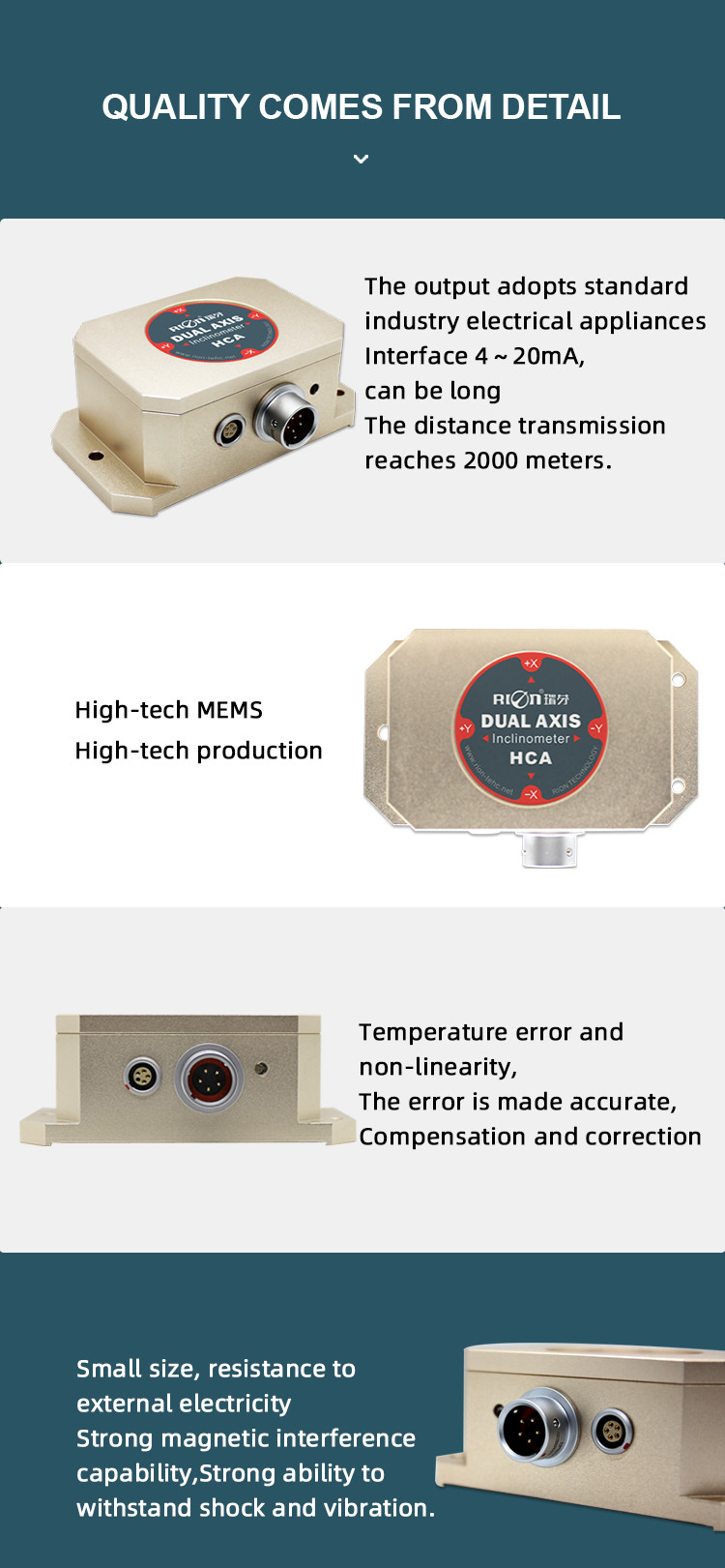

High precision analog current 4-20ma tilt sensor inclinometer with full temper compensation

▶ FEATURES

★ Dual axis inclination measurement

★ Range ± 1 ～ ± 60 ° optional

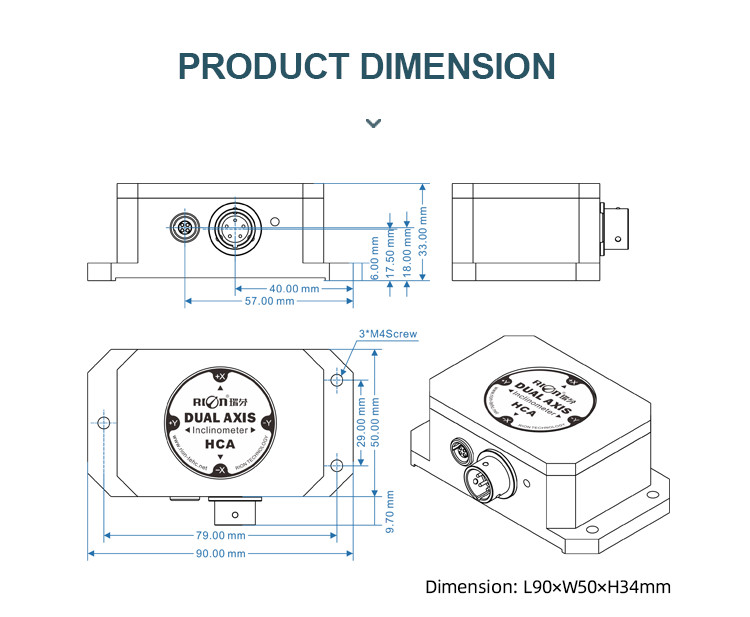

★ Size: 90 × 50 × 34mm

★ DC 9 ～ 36V wide voltage input

★ Wide temperature operation -40 ～ + 85 ℃

★ Resolution 0.001 °

★ IP67 protection level

★ High vibration resistance> 2000g

★ Waterproof aviation plug

▶ APPLICATION

★Satellite positioning Search

★Rail-mobile monitoring

★engineering mechanical measurement of dip angle

★oil-well drilling equipment

★Radar detection of vehicle platform 　

★Underground drill posture navigation

★Based on the angle direction measurement

★Satellite communications vehicle posture detection

★Shield pipe jacking application

★Ship’s navigation posture measurement

★Geological equipment inclined monitoring

▶ Parameter

HCA516&526T-C2	CONDITION	PARAMETERS			UNIT
Measure range		±10	±30	±60	°
Measure axis		XY	XY	XY
Resolution		0.001	0.001	0.001	°
Measure accuracy	@25℃	0.005	0.01	0.02	°
Long term stability		0.01	0.02	0.05	°
Zero Temp.coefficient	-40～85℃	±0.002	±0.002	±0.002	°/℃
Sensitivity temp. coefficient	-40～85℃	≤50	≤50	≤50	ppm/℃
Power on time		0.5	0.5	0.5	S
Response time		0.02	0.02	0.02	s
Output rate	5Hz,15Hz,35Hz,50Hz can be set
Output signal	CAN2.0A
EMC	According to EN61000 and GBT17626
MTBF	≥50000hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration	10grms,10～1000Hz
Protection grade	IP67
Cables	Standard configuration: 1m length, wear-resistant, wide temperature, shielded cable 4*0.4mm2 aviation connector
Weight	190g(without cable )

=
