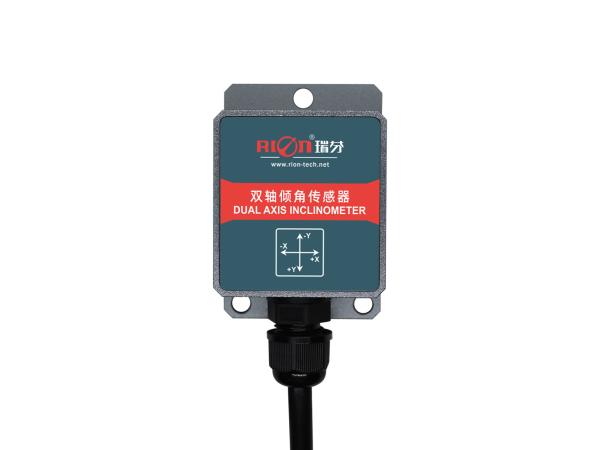

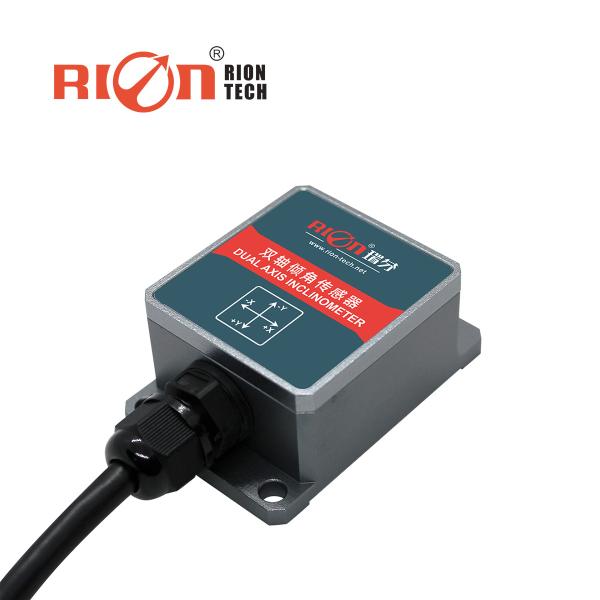

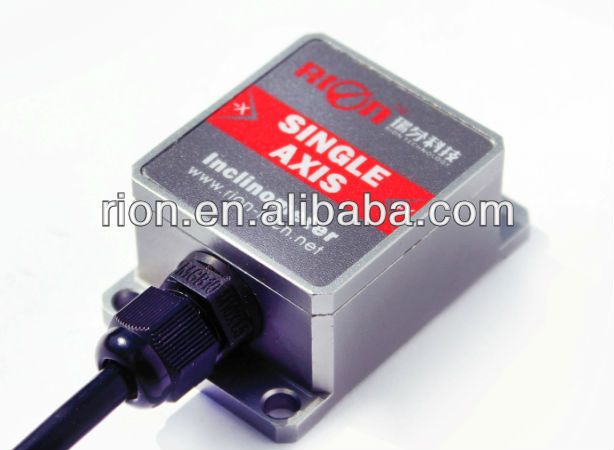

LCA316T / LCA326T series products are a new generation of digital
small volume MEMS tilt sensor launched by RION Technology. It has a
built-in dual-channel earth gravity tilt unit, which can be
converted into tilt angle changes by measuring static gravity
acceleration. So that the tilt angle of the sensor output relative
to the horizontal plane can be measured. Output method RS232, RS485
or TTL. Because it is a built-in MCU control system, which correct
the linearity of the sensor output twice, making up the accuracy
drop for the analog type because of insufficient correction.
This product adopts non-contact measurement of the original
quantity, which can output the current attitude and inclination in
real time. It is simple to use.
It is an ideal choice for measuring posture of industrial
automation console. It has strong resistance to external
electromagnetic interference and can adapt to long-term work in
harsh industrial environments. This product is mainly suitable for
static and slow changing dynamic measurement, but not for fast
changing dynamic measurement.
Features:
Single / dual axis inclination measurement
Resolution 0.02 °
Range ± 10 ～ ± 90 ° optional
Standard DC 5V power supply
Wide temp. operation -40 ～ + 85 ℃
IP67 protection level
Output mode RS232 / RS485 / TTL
Small size 55 × 37 × 24mm (customizable)
High anti-vibration performance> 3500g
Application:
Electric blind chair leveling
PTZ operation monitorin
Satellite antenna positioning
Medical equipment leveling
Car chassis measureme ,
Four-wheel positioning system
Various engineering machinery angle control
Parameter
LCA316T/326T CONDITION
PARAMETER
UNIT
Measure range
±10
±30
±60
±90
°
Measure axis
X Y
X Y
X Y
X Y
Axis
Resolution
0.02
0.02
0.02
0.02
°
Measure accuracy
@25℃
0.1
0.1
0.1
0.1
°
Zero Temp. coefficient
-40～85℃
±0.02
±0.02
±0.02
±0.02
°/℃
Sensitivity temp. coefficient
-40～85℃
≤150
≤150
≤150
≤150
ppm/℃
Power on start time
0.5
0.5
0.5
0.5
S
response frequency
20
20
20
20
Hz
Output rate
5Hz,15Hz,35Hz,50Hz, can be set
Output signal
RS232/RS485/TTL
EMC
According to EN61000 and GBT17626
MTBF
≥98000 hours/times
Insulation Resistance
≥100 MΩ
Shockproof
100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration
10grms,10～1000Hz
Protection grade
IP67
Cables
standard configuration: 1 meter wearproof,grease proofing,wide
temperature,Shielded cables 4*0.3mm2
Weight
≤135g (including 1 meter cable)
INSTALLATION PRECAUTIONS
Please install the tilt sensor according to the correct method.
Improper installation will cause measurement error. Pay attention
to the first "surface" and the second "line": 1) The mounting
surface of the sensor and the measured surface must be tight, flat
and stable. The unevenness of the mounting surface is easy to cause
the angle error of the sensor measurement.
2) The axis of the sensor and the axis to be measured must be
parallel, and the angle between the two axes should be avoided as
much as possible.
