    ACA616T Sensor inclinometer Wide voltage input For Building Inclination Monitor

    Ask Lasest Price
    Brand Name : RION
    Model Number : ACA616T-5
    Payment Terms : T/T, PayPal
    Delivery Time : 10 days
    Certification : CE, ISO
    Price : 594 USD/pcs
    Supply Ability : 1000/month
    • Product Details
    • Company Profile

    ACA616T Sensor inclinometer Wide voltage input For Building Inclination Monitor

    ACA616T Sensor inclinometer Wide voltage input For Building Inclination Monitor


    ▶ TECHNICAL DATA


    ACA616T&626T-C2CONDITIONSPARAMETERSUNIT
    Measure range±10±30±60°
    Measure axisX/XYX/XYX/XYAXIS
    Resolution0.0010.0010.001°
    Measure accuracy@25℃0.0030.010.02°
    Long term stability0.010.020.03°
    Zero Temp. coefficient-40~+85℃±0.0004±0.0004±0.0004°/℃
    Sensitivity temp-coeffi-40~+85℃≤100≤100≤100ppm/℃
    Power on time0.50.50.5S
    Response time0.020.020.02S
    Interface typeCAN 2.0A
    EMCAccording to EN61000 and GBT17626
    MTBF≥50000 hours/times
    Insulation Resistance≥100MΩ
    Shockproof100g@11ms,3 Axial Direction (Half Sinusoid)
    Anti-vibration10grms,10~1000Hz
    Protection gradeIP67
    CablesStandard configuration: 2m length, wear-resistant, wide temperature, shielded cable 5P * 5.7mm aviation connector
    Weight235g(without cable)

    APPLICATION

    ★ Engineering vehicles automatic leveling

    ★ Bridge & dam detection

    ★ Laser equipment position

    ★ Medical facilities angle control


    FEATURES

    ★ Single / dual axis inclination measurement

    ★ Measuring Range :±1~±60° optional

    ★ Size:L92×W48×H36mm

    ★ Wide voltage input: 9~36V

    ★ Wide temperature working: -40~+85℃

    ★ IP67 protection grade

    ★ High Resolution: 0.001°

    ★ Water-proof air-plug

    ★ Highly anti-vibration performance >2000g

    ★ Output mode CAN 2.0A are optional

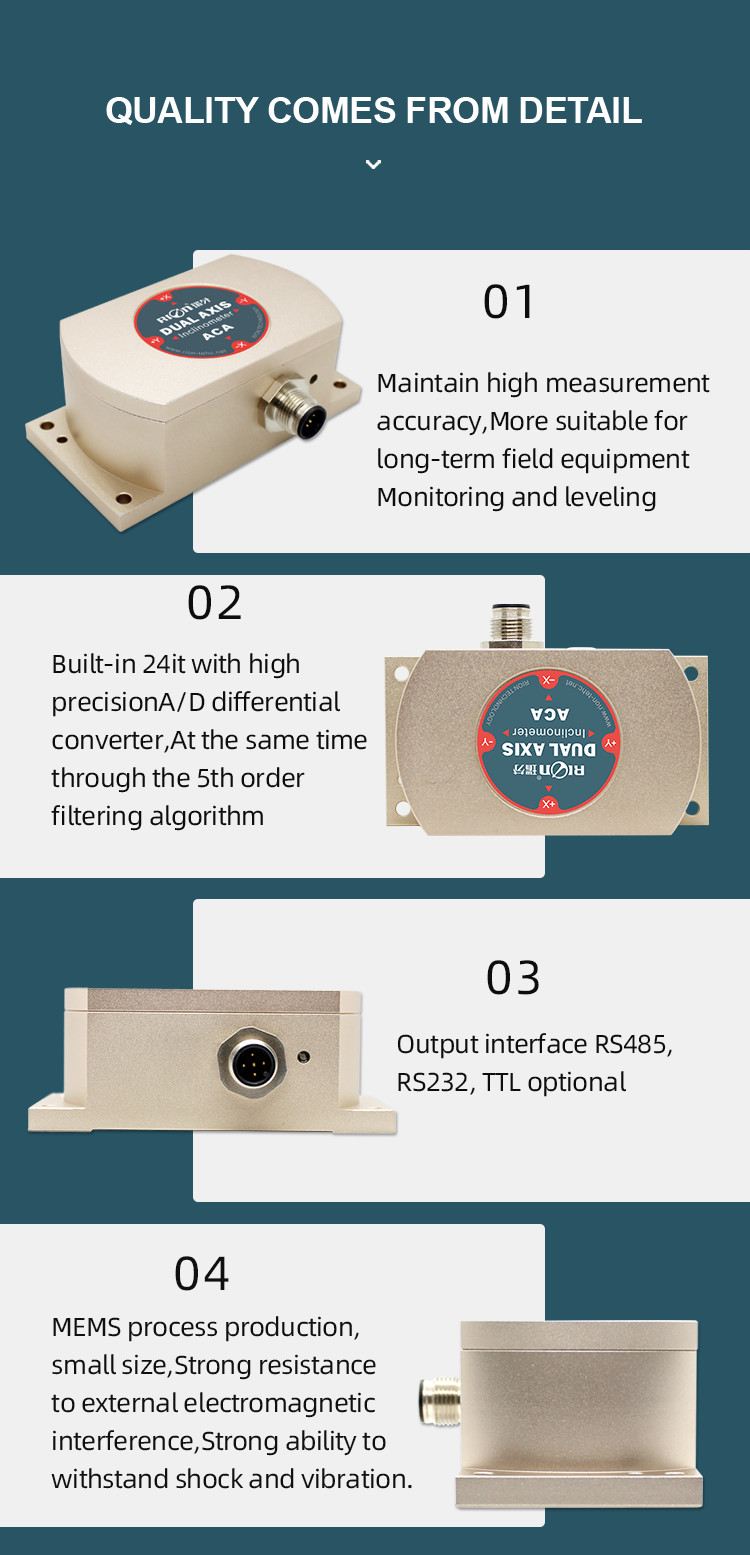

    ▶ GENERAL DESCRIPTION
    ACA616T is a full-temperature compensated high-precision single / dual-axis inclinometer developed by RION Technology on the basis of high-precision inclination platform. Its good temperature stability can be used in a wide temperature environment of -40 ~ 85℃ In addition, the system has a built-in high-precision 24it A / D converter, and through a 5-level conversion algorithm, it can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. Output protocol CAN2.0A.


    The characteristics of non-contact installation make this product have good system integration. Just fix the sensor on the surface of the measured object with a screwdriver, the attitude and inclination of the object can be automatically calculated. It has strong ability to withstand shock and vibration, and has a great competitive advantage among domestic counterparts. It is specifically aimed at the industrial fields that high-end users require.
