    MCA416T MODBUS Tilt Sensor Inclinometer 0.2deg High Accuracy For Solar Tracking

    Ask Lasest Price
    Brand Name : RION
    Model Number : MCA416T-90
    Certification : CE, ISO
    Price : USD 35/pcs
    Payment Terms : T/T, Paypal
    Supply Ability : 2000pcs/month
    Delivery Time : 5~7
    • Product Details
    • Company Profile

    MCA416T MODBUS Tilt Sensor Inclinometer 0.2deg High Accuracy For Solar Tracking

    MCA416T MODBUS Tilt Sensor Inclinometer 0.2deg High Accuracy For Solar Tracking

    General Description

    MCA426M is a MODBUS output inclinometer designed especially for industrial position control. It adopts RS485 hardware differential bus transmit data. It built-in high accuracy 12 bit A/D differential conventor, using third order filter algorithm to measure the pitch and roll angle relate to horizontal level. It could redress the temperature drift according to the inside temperature change , ensuring the high repeatability when it is under high and low temperature. The output respond frequency could reach 20Hz, high frequency could be customized.


    Feature

    ●singl axis

    ●measuring range ±180°

    ●accuracy:±0.3°
    ●DC 9~36V input

    ●working temp-40~+85℃

    ●resolution: 0.1°
    ●IP67

    ●anti-shock>2000g

    ●direct lead interface

    ▶ PARAMETERS

    MCA416LCONDITIONINDEXUNIT
    Measure range/±80°
    Measure axis/Single axis(Y axis)axis
    Resolution/0.1°
    Absolute accuracy@25℃0.3°
    Zero temp. coefficient-40~85°±0.4°/℃
    Output InterfaceRS485
    communication protocolMODBUS
    EMCAccording to EN61000 and GBT17626
    MTBF≥50000 hour/time
    Insulation resistance≥100 megohm
    Anti-impact100g@11ms,three axes direction(half sinusoid)
    Anti-vibration10grms,10~1000Hz
    Waterproof gradeIP67
    Housing materialSand-grinding oxidation of aluminum alloy
    ScrewThree M4 screws
    CableStandard 1-meter length, anti-ultraviolet, shielded cable 4*0.4mm2
    Weight60g (exclude cable)

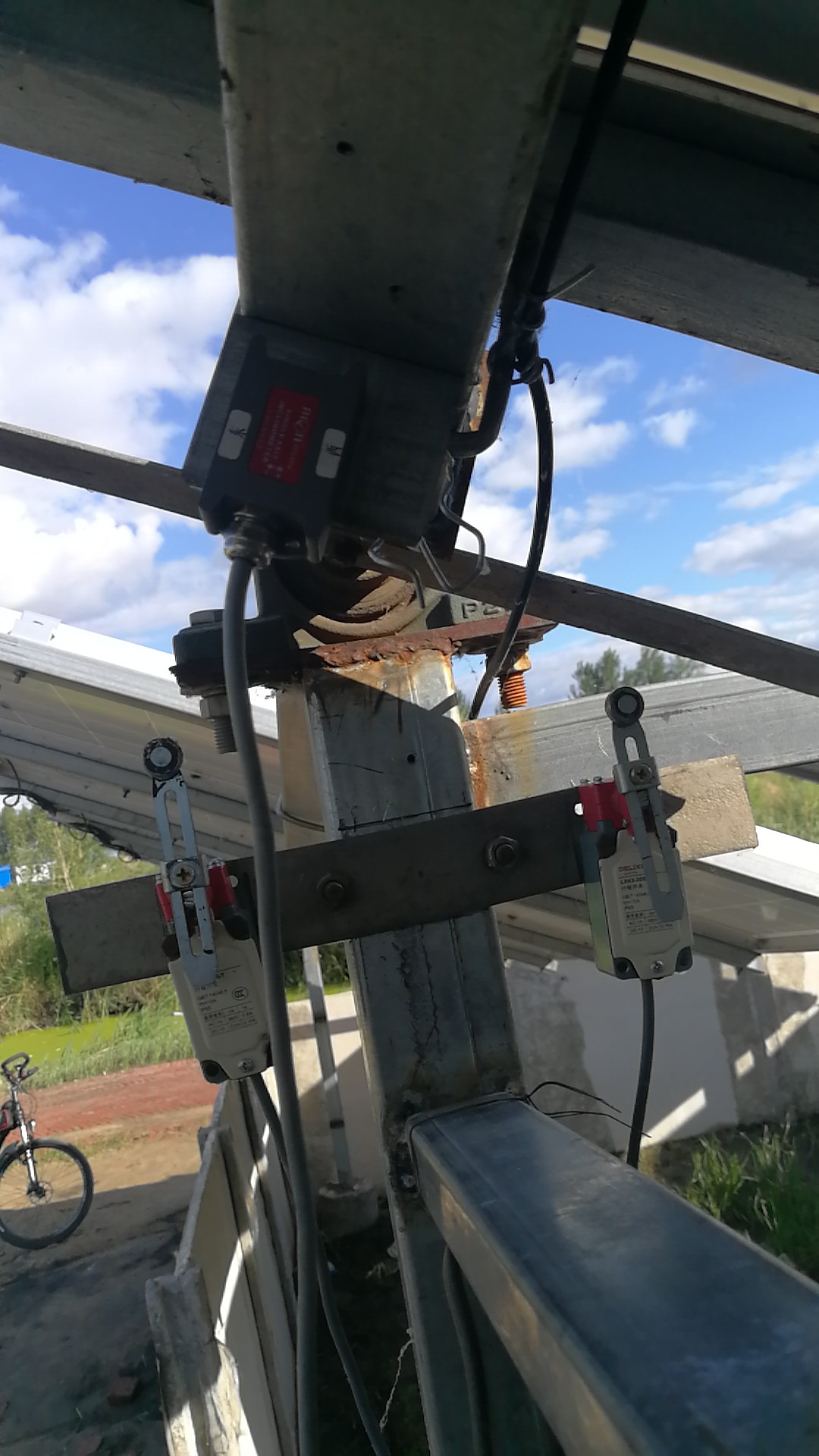

    Project
