DMI610 inclinometer digital dual axis, protractor spirit level full
color screen. 2 axis digital readout
▶ GENERAL DESCRIPTION
DMI610 is a digital display inclinometer for various industry angle
controling and measuring.
The core of this product use micro mechanical control principle,
using RION patent interleaved temperature compensation model
algorithm, play micro electronic mechanical principle of absolute
operation advantage, to ensure the long-term stability and
repeatability of measuring instrument. DMI610 single axis maximum
range of up to + 90 ° , resolution 0.002 ° , the best accuracy
<0.02° (in full measuring range), fast response speed, stable
data , specially designed side and bottom the strong magnetic
adsorption type installation, three datum can be measured using
normally, bring great convenience to customers, DMI610 has the
function of data storage, 3 measurement modes (radian, angle, mm/m)
optional, strong expansibility, convenient application, industrial
reliability, and has the absolute competitive price advantage in
the international market have absolute competitive advantage!
▶ FEATURES
★ Best accuracy:<0.02° ★ Repeatability:0.02°
★ Maximum measure range:±90° ★ Data store function
★ Absolute/Relative measurement can switch ★ Both sides and bottom
can measure
★ Three surface datum strong magnetic installation ★ Working
Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function ★ Auto temperature
drift compensation
★ User can calibrate ZERO by himself ★ Night vision fours colors
screen
★ Three kinds of measurement mode selectable (radian, angle, mm/m)
★ Angle resolution:0.001°
▶ APPLICATION
★ Building construction ★ Automobile four-wheel testing ★ Road
slope
★ Machinery installation ★ Piping installation ★ Industrial
platform
★ Turntable testing ★ Pan unit angle detection ★ Production jig
★ Medical instruments
▶ TECHNICAL DATA
 DMI610 | PARAMETERS |
| Angle measure range | ±90° | ±30° |
| Measure axis | Single axis | Dual axis |
| Best accuracy | <0.02°(RMS)(Full range) | <0.005°(RMS)(Full range) |
| Angle measure resolution | 0.001° | 0.001° |
| Repeatability | 0.004° | 0.004° |
| Measurement mode | radian, angle, mm/m three modes can be set |
| LCD | 64 true colors night vision display screen |
| LCD visible area size | L60.5*W45mm |
| Working temperature | -10℃~+70℃ |
| Working humidity | 85%RH |
| Power supply | 1.5V |
| Ideal working time | 6Hours |
| Shock resistance | 10g@11ms,3 Axial Direction (Half Sinusoid) |
| Shock impact | 10grms,10～100Hz |
| Weight | 600g |
| Waterproof grade | IP65 |
| Material | Anodic oxidation of aluminum alloy |

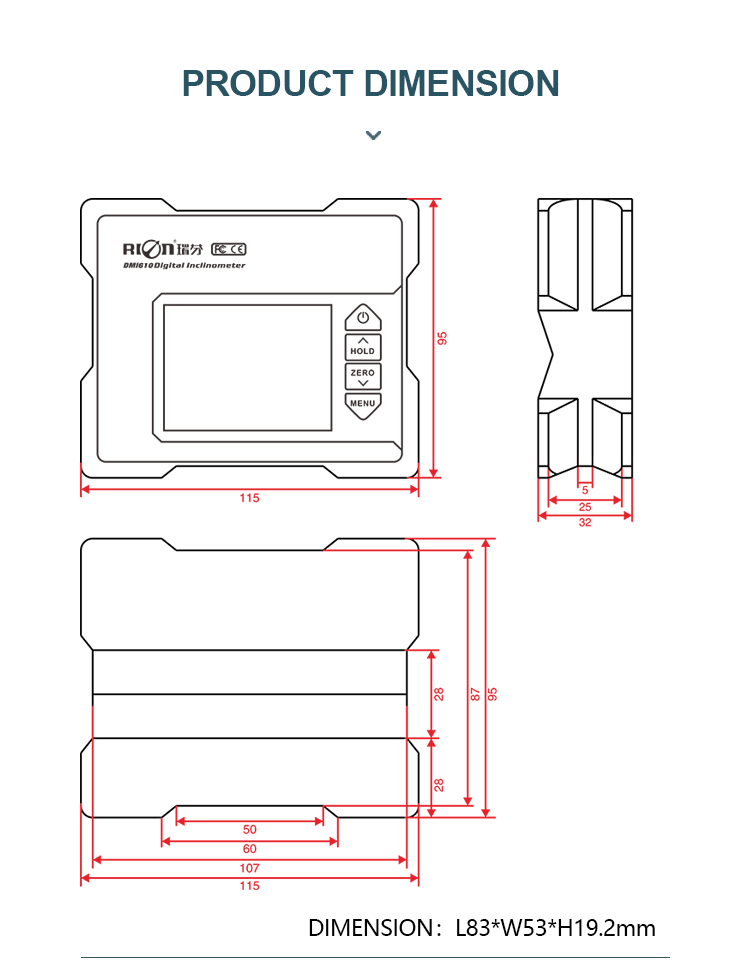

| Size | L115*W95*H32mm |
