    DMI810 USB Interface Digital Level Angle Gauge Fluxgate 10Hz Single Axis Protractor

    Ask Lasest Price
    Model Number : DMI810-30
    Brand Name : RION
    Supply Ability : 3000 Set/Sets per Month
    Price : $435.00/Sets >=1 Sets
    Certification : CE
    Payment Terms : T/T, Paypal
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    DMI810 USB Interface Digital Level Angle Gauge Fluxgate 10Hz Single Axis Protractor

    DMI810 USB Interface Digital Level Angle Gauge Fluxgate 10Hz Single Axis Protractor

    Features:

    ★ User can set the alarm value by himself

    ★ Data store function

    ★ Absolute/Relative measurement can switch

    ★ Both sides and bottom can measure

    ★ Double benchmark strong magnet installation

    ★ Working Temperature : -10°~ +70℃

    ★ Auto-angle interleaved compensation function

    ★ Auto temperature drift compensation

    ★ User can calibrate ZERO by himself

    ★ Built-in rechargable industry batteries

    ★ Night vision fours colors screen

    ★ °/mm/m Dual units switch function

    ★ Three kinds of measurement mode selectable (radian, angle, mm)

    Application :

    • Building construction
    • Automobile four-wheel testing
    • Road slope
    • Machinery installation
    • Piping installation
    • Industrial platform
    • Turntable testing
    • Pan unit angle detection
    • Production jig


    Technical data


    PARAMETERDMI810DMI820UNIT
    Meausre AxisSingle AxisDaul AxisAxis
    Angle Measure Range±15 °±30 °±15 °±30 °°
    Angle Measurement Accuracy(Full Range)<0.005<0.01<0.005<0.01°
    Angle Measure Resolution0.0010.0010.0010.001°
    Mm/m Measure Range267577267577mm/m
    Mm/m Measure Accuracy0.10.20.10.2mm/m
    Mm/m Measure Resolution0.020.020.020.02mm/m
    Repeatability0.0030.0030.0030.003°
    Measurement ModeAngle,Degree/Minute/Second,Mm/m Three modes can be set
    Working Temperature-10°~ +70℃
    Working Humidity85%RH
    Power Supply3.7V Charging Lithium Battery
    Ideal Charging Time5h
    Battery Continuous Working Time11h
    Equipped With Pc SoftwareVc Software
    Data Output SignalUSB2.0 (Virtual Serial Device)
    Connect Plug InStandard Usb Connector, Rechargeable
    Shock Resistance10g@11ms,3 Axial Direction (Half Sinusoid)
    Shock Impact10grms,10~100Hz
    Waterproof GradeIP54
    MaterialAluminum Alloy Anodizing
    Lcd64 True Colors Night Vision Display Screen
    Lcd Visible Area SizeL57.6*W43.2mm

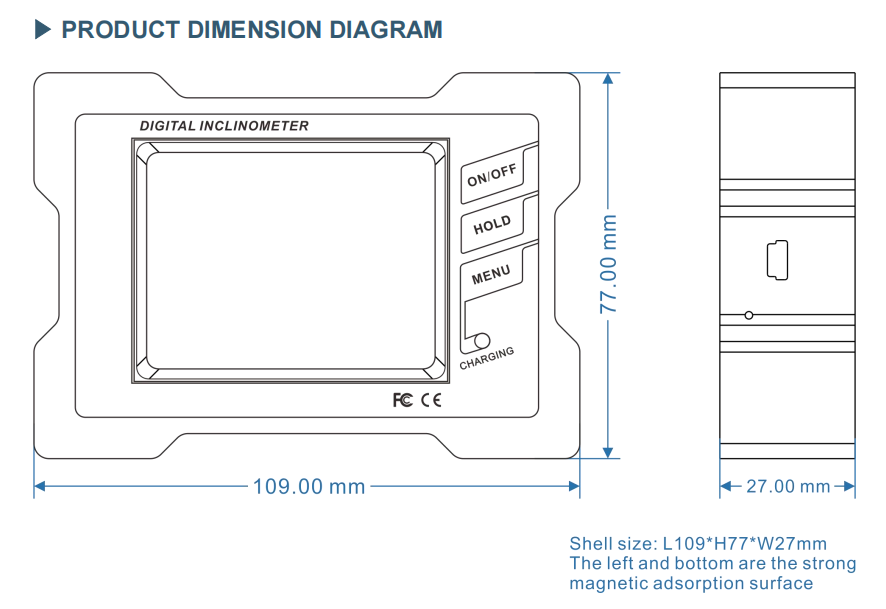

    SizeL109*W77*H27mm
    Weight≤350g
