    HDA4367T-C2 MEMS dynamic tilt sensor for measurement in motion

    Ask Lasest Price
    Brand Name : RION
    Model Number : HDA4367T-C2
    Supply Ability : 30000 Piece/Pieces per Week
    Price : $161.00/Pieces
    Certification : CE RHOS
    Payment Terms : T/T, Paypal
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    HDA4367T-C2 MEMS dynamic tilt sensor for measurement in motion


    HDA4367T-C2 MEMS dynamic tilt sensor for measurement in motion


    Key Features

    • Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)
    • Resolution 0.01°
    • Dynamic accuracy: ±0.1°
    • DC 9~36V wide voltage input
    • Wide temperature operation -40℃~+85℃
    • CAN2.0A/CAN2.0B output Optional
    • High anti-vibration performance> 2000g
    • IP67/IP67 Protection level Optional

    Application

    • High vibration impact crushing equipment

    • Satellite antenna star search

    • Underground drilling rig attitude navigation

    • Railway locomotive monitoring

    • Geological equipment tilt monitoring

    • Oil drilling equipment

    • Ship navigation attitude measurement

    • Shield pipe jacking application

    • Satellite communication vehicle attitude detection


    Specification

    HDA436T/HDA437T-C2/C3ConditionIndex
    Measure range

    Roll ±180°, pitch ±90°, azimuth ±180°

    (initial value at power-down is 0°)

    Measure axis

    X axis / Y axis / Z axis
    Resolution1)

    0.01°

    Static accuracy2)

    @25℃± 0.05°
    Dynamic accuracy@25℃± 0.1°

    Gyro


    range-±250°/s
    Zero bias stability (10s mean)-8.5°/h
    Zero Bias Instability(allan)-4.5°/h
    Angle random walk coefficient(allan)-0.25°/sqrt(h)

    Acceleration


    range-±8g
    Bias stability(10s mean)-0.02mg
    Bias instability(allan)-0.005mg
    Speed random walk coefficient(allan)-0.005m/s/sqrt(h)
    Zero point temp. Coefficient3)-40~85℃±0.01°/℃
    Sensitivity temp. Coefficient4)-40~85℃≤100ppm/℃
    Power-on startup time1S
    Response time0.01S

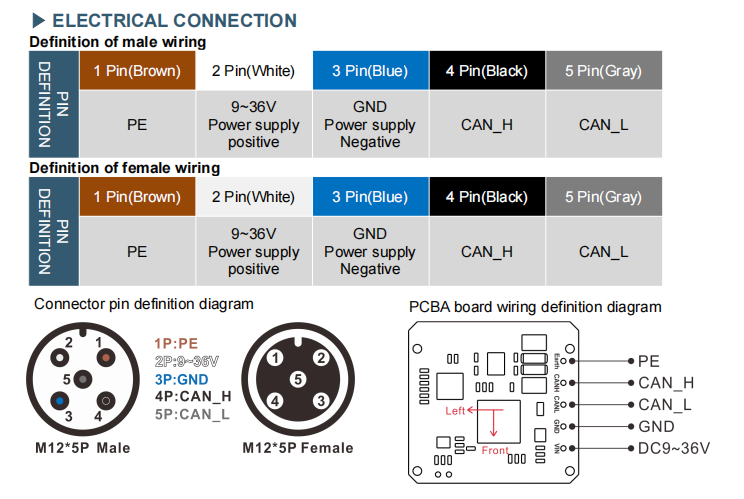

    Output signalCAN2.0A/CAN2.0B
    Electromagnetic compatibilityAccording to EN61000 and GBT17626
    MTBF≥ 98000 hours / time
    Insulation resistance≥100 Megohm
    Impact resistance100g @ 11ms, 3 axial direction (half sinusoid)
    Anti-vibration10grms / 10~1000Hz
    Waterproof level

    Standard IP67,

    optional IP68 and corrosion-resistant IP68 protection level

    Cable

    Standard without wiring,

    optional 2m M12 aviation plug with PVC unshielded cable

    Weight

    Single connector ≤165g /

    double connector ≤180g (Without cable)

    1)Resolution : It refers to the smallest change in the measured value that can be detected and resolved by the sensor within the measurement range.

    2)Accuracy: refers to the root mean square difference between the measured and actual angle value by multiple measurements (>16 times) under normal temperature.

    3)Zero temp. drift coefficient: the change rate of the indication value relative to normal temperature within the rated operating temperature range of the sensor at the zero degree.

    4)Sensitivity temp. drift coefficient: The percentage change rate with temperature of the full-scale indication relative to the full-scale indication at room temperature of the sensor in its rated operating temperature range.
