DMI815 3.7V ISO High Accuracy Digital Inclinometer Screw Mounting
Angle Finder
General Description
DMI815 is a digital display inclinometer which took RION company
three years to develop professional for various industry angle
controling and measuring.The core of this product is using the
micro-mechanical control principle, dual-core measurement unit, can
use the Y-axis to compensate X-axis during the measurement
process,and then to use RION patent interleaved and temperature
compensation model algorithm to play absolute operation advantages
of the micro-mechanical electronic principles,to ensure that the
instruments measurement with the long-term stability and

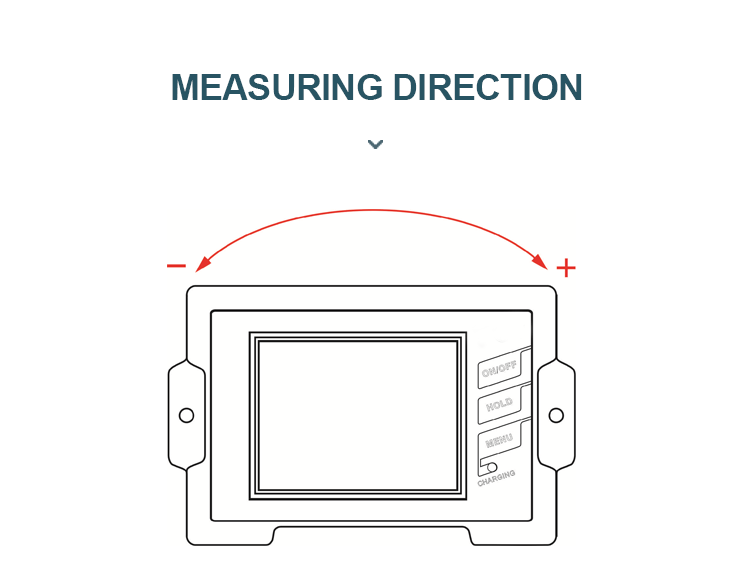

repeatability. DMI815 is a single axis 90deg measurement,
resolution 0.001 °,the highest accuracy <0.005 degree
full-scale,fast response, stable data, products specially designed
for the sides and bottom with magnetic adsorption installation,
both sides of the benchmark can be measured and using normally,very
convenient to use, In addition, supporting the selection of DMI815
(SMI815) with the use of separate measurement, used in combination
with the Division HCA series tilt sensor, the transmission mode
wireless or wired optional, wireless using one-to-one band
transmission, transmission straight line distance> 10m, the
cable transmission standard 1 meter (can be customized long
distance), DMI815 series has strong scalability, convenient &
practical application and industrial reliability, has absolute cost
advantage and has an absolute competitive advantage in the
international market !
Features:
●Best accuracy:<0.003°
●Repeatability:0.003°
●Angle resolution:0.001°
●Maximum measuring range:±90°
●User can set the alarm value by himself
● Data store function
●Absolute/Relative measurement can switch
●Both sides and bottom can measure
●Working Temperature : -10°～ +70℃
●Auto temperature drift compensation
●User can calibrate ZERO by himself
●°/mm/m Dual units switch function
●Building construction
●Automobile four-wheel testing
Specification table
| Angle Measuring range | DMI815:±15 ° ; | DMI815:±30 ° ; | ° |
| MM measuring range | 267 | 577 | mm/m |
| Meausring axis | Single axis | Single axis | |
| The highest meausring accuracy | <0.005 (Full measuring range) | <0.01 (Full measuring range) | ° |
| Angle Measuring resolution | 0.001 | 0.001 | ° |
| MM measuring accuracy | 0.1 | 0.2 | mm/m |
| Three measurement mode selectable | radian, angle, mm measuring can be selected | |
| MM measuring res | 0.02 | mm/m |
| LCD | 64 true colors night vision display screen |
| LCD visible area size | L57.6*W43.2 | mm |
| Working temperature | -10°～ +70℃ | °/℃ |
| Working humidity | 85 | %RH |
| Equipped with PC software | VC software |
| Data output signal | RS485/RS232 |
| Connect plug in | Standard 5Pin USB connector |
| Shock resistance | 10g@11ms,3Times/Axis(half sinusoid) | g |
| Shock impact | 10grms,10～100Hz | g |
| Weight | 300 | g |
| Waterproof grade | IP54 |
| Material | Metal |

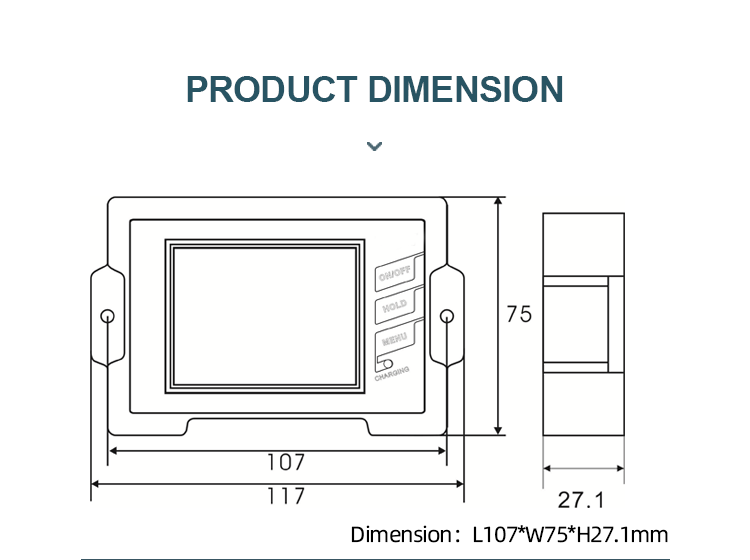

| Size | L117*W75*H27.1mm | mm |
FAQ
How long is the delivery time of the products?
A: Usually we have stock for every type of products, if the product
that you selected we have in stock, then we only need to re-test it
before leaving the factory, so the delivery time is around 2~4 days; if we don’t have them in stock, then we need to arrange the
production, the delivery time will be around 2 weeks. For the
customer-oriented design products, our engineers will give the
approximate delivery time according to the technical requirements.
Q: How about the payment conditions?
A: we accept 40% prepayment in advance, and the balance 60% payment before the delivery. For the customer-oriented design
product, the payment will be discussed together.
Q: How will we do if the product has the quality problem?
A: Our products have passed very strict tests before delivery, so
it is very low probability to have quality problem. If our products
have quality problem (not caused by man-made factors) in the
warranty period, our factory will arrange the free repair. If the
product can’t repair well, we will arrange to provide a new one. If
the product is out of warranty time, we will provide the repair
only charging the material cost.
