OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell

Shenzhen Rion Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell from wholesalers

    Buy cheap OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell from wholesalers
    • Buy cheap OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell from wholesalers
    • Buy cheap OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell from wholesalers
    • Buy cheap OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell from wholesalers

    OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell

    Ask Lasest Price
    Brand Name : RION
    Model Number : DMI820-30
    Price : $438.00/Pieces
    Certification : CE
    Payment Terms : T/T, Paypal
    Supply Ability : 3000/month
    Delivery Time : 5 days for sample
    • Product Details
    • Company Profile

    OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell

    DMI820 New Touch screen Inclinometer Data Store Digital Inclinometer Wide Measuring range Inclinometer Factory

    Production implementation standard reference

    ● Enterprise quality system standards: ISO9001: 2008 standard (certification number: 128101) ● Tilt sensor production standards: GB / T 191 SJ 20873-2003 inclinometer general specification of Level ●The Academy of metrology and quality inspection Calibrated in accordance to: JJF1119-2004 Electronic Level calibration Specification ● Software development reference standard: GJB 2786A-2009 military software development General requirements ● Product environmental testing standards: GJB150 ● Electromagnetic anti-interference test standards: GB / T 17626 ● Version:Ver.09 ● Date:2014.4.17
    DMI820 New Touch screen Inclinometer Data Store Digital Inclinometer Wide Measuring range Inclinometer Factory

    General Description

    DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI820 is a uniaxial 90deg measurement, resolution 0.001 °,the highest accuracy <0.005 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI820 (SMI820) with the use of separate measurement, used in combination with the Division HCA series tilt sensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI820 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

    Key Features

    ●Best accuracy:<0.003°
    ●Repeatability:0.003°
    ●Angle resolution:0.001° ●Maximum measuring range:±90°
    ●User can set the alarm value by himself
    ● Data store function ●Absolute/Relative measurement can switch
    ●Both sides and bottom can measure ●Double benchmark strong magnet installation
    ●Working Temperature : -10°~ +70℃ ●Auto-angle interleaved compensation function
    ●Auto temperature drift compensation ●User can calibrate ZERO by himself
    ●Built-in rechargable industry batteries ●Night vision fours colors screen
    ●IP54 protection class ●°/mm/m Dual units switch function
    ● Filter frequency optional ●Three kinds of measurement mode selectable (radian, angle, mm)

    Application

    ●Building construction
    ●Automobile four-wheel testing ●Road slope
    ●Machinery installation
    ●Piping installation
    ●Industrial platform ●Turntable testing
    ●Pan unit angle detection
    ●Production jig
    ●Medical instruments
    Specification
    Parameters
    DMI820-15
    DMI820-30
    DMI820-30
    Angle measuring range
    DMI820:±15 °
    DMI820:±30 °
    MM measuring range
    267mm
    577mm
    Measuring aixs
    Dual axis
    Dual axis
    Best angle accuacy
    <0.005 °(Full measuring range)
    <0.01° (Full measuring range)
    Resolution
    0.001°
    0.001°
    MM measuring accuracy
    0.1mm
    0.2mm
    Three measuring mode
    radian, angle, mm measuring can be selected
    MM measuring resolution
    0.02mm
    LCD
    64 true colors night vision display screen
    LCD visible area size
    L57.6*W43.2mm
    Working temperature
    -10°~ +70℃
    Working humidity
    85%RH
    Power supply
    3.7VCharging Lithium battery
    Ideal charging time
    3~4 hours
    Battery sustainable charging times
    11 hours
    Equipped with PC software
    RION software
    Data output signal
    USB1.0
    Connector plug in
    Standard 5Pin USB connector
    Shock resitance
    10g@11ms,3Times/Axis(half sinusoid)
    Shock impact
    10grms,10~100Hz
    Weight
    300g
    Protection
    IP54
    Enclosure material
    Metal
    Size
    L107*W75*H27.1mm

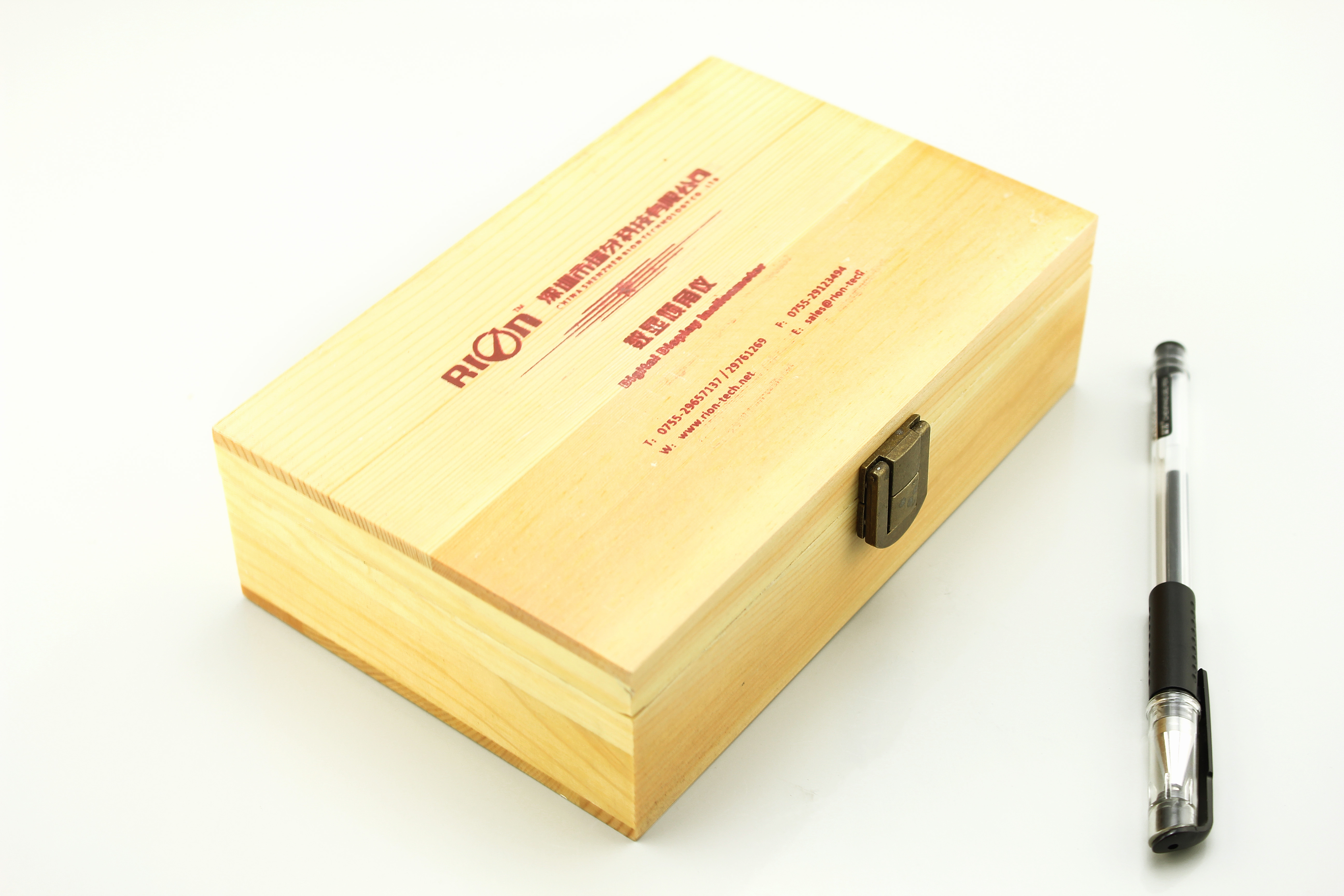

    Packing & Delivery
    OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell
    OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell
    Order information
    Item No.
    Description
    DMI820-15
    Standard dual-axis digital display inclinometer ±15°
    DMI820-30
    Standard dual-axis digital display inclinometer ±30°
    OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell
    OEM 267mm High Accuracy Digital Inclinometer 2 Axis Lithium Cell
    Company Profie
    Shenzhen RION Technology, located in Shenzhen, a city overflowing with charms and miracles, is a high-tech enterprise specializing in developing, research, manufacture and sales of inclinometer, tilt switch, accelerometer, electronic compass, inertial attitude instrument etc. Based on the philosophy of specialization and marketization, RION engages itself in providing reliable service of sensor developing, sensor solution and customized developing&test solution. ISO9001 Quality Assurance System involves fully in factory production and management and ensures the best products and solution to be offered, winning satisfaction and reputation from customer. RION’s main products include inclinometer, digital inclinometer, tit switch, 3D electronic compass, accelerometer, inertial measurement unit(IMU) etc. And RION’s products could find suitable application in automobile, ship, plane, machinery, metallurgy, electric power, textile, railway, dam monitoring, armarium, petroleum drilling, coal mining, offshore exploration, precise surveying and mapping etc. Taking the opportunity of Chinese reform and open, RIONer, propelled by the Spirit of dedication, innovation and determination, turn RION into a leading manufacturer of position sensor out fo nothing. In 2008, RION set foot in international market, promoted its own brand toward the whole world and is becoming a flagship against many Chinese sensor companies on the way to globalization. In next 10 years, RION will always pivot at the trinity-design, quality and market-orientation, and develop itself into a creative, reliable and reputable sensor brand for the world.
    FAQ
    Q: How to choose suitable products before ordering? A: According to your application, select the measurement axis , the appropriate measuring range, the main parameters of the output, or not sure, please contact us as soon as possible, our staff will be the first time to get in touch with you and provide the best solution and the most preferential price. Q: What's kind of payment methods ? A: We support T/T and Paypal methods, you can choose any one, after payment, please inform us in time, so that we can arrange your order and deliver the goods as soon as possible. Q: How about lead time for order ? A: After we receive your payment, the samples will be sent in 3-7 working days. If mass order please confirm the delivery schedule with our sales staff in advance so as to avoid unnecessary delay. Q: How about quality inspection before shipment ? We have several testing departments will be in strict accordance with the requirements of inspection of goods quality and functions, to ensure the quality of each with 100% qualified product, and the products will be inspected /tested again to ensure no any problem before shipment . Q: What's the transportation methods ? A: You can arrange courier to pick up goods from our company, or provide your international express account number to pay for your local courier after goods reach to your hands, but also can delivery by DHL, FEDEX, UPS, TNT, EMS... Etc through our shipping forwarder . Q: How about after-sale service ? A: Please check the package status in time after receipt of the goods as soon as possible, and product performance test, if any quality problem please contact us first, we will deal with your problems and feedback as soon as possible. Q: How about product warranty and repair service? A: Warranty for one year, In general, we can provide the repaired service in free charge if non damaged within one year , and individual cases can be extended to 3 years or more. If over a certain warranty period or damage caused by user , we will charge a rea
