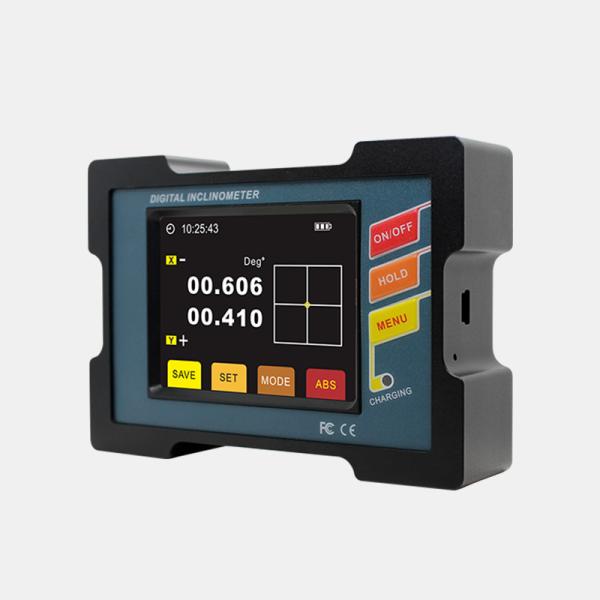

DMI820 Dual Units Switch 2 Axis Digital Inclinometer High Accuracy
0.005deg And Big Measuring Range Inclinomerer
▶ GENERAL DESCRIPTION
DMI810/DMI820 is a digital display inclinometer which took RION
company three years to develop professional for various industry
angle controling and measuring.The core of this product is using
the micro-mechanical control principle, dual-core measurement unit,
can use the Y-axis to compensate X-axis during the measurement
process,and then to use RION patent interleaved and temperature
compensation model algorithm to play absolute operation advantages
of the micro-mechanical electronic principles,to ensure that the
instruments measurement with the long-term stability and
repeatability. Single and double axis measurement, measurement
range ±30° measurement, resolution 0.001°, highest accuracy
<0.005° full value,fast response, stable data, products
specially designed for the sides and bottom with magnetic
adsorption installation, both sides of the benchmark can be
measured and using normally,very convenient to use, DMI810 series
has strong scalability, convenient & practical application and
industrial reliability, has absolute cost advantage and has an
absolute competitive advantage in the international market !
▶FEATURES
★ Best accuracy:<0.005°
★ Repeatability:0.003°
★ Angle resolution:0.001°
★ Maximum measure range:±30°
★ User can set the alarm value by himself
★ Data store function
★ Absolute/Relative measurement can switch
★ Both sides and bottom can measure
★ Double benchmark strong magnet installation
★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function
★ Auto temperature drift compensation
★ User can calibrate ZERO by himself
★ Built-in rechargable industry batteries
★ Night vision fours colors screen
★ IP54 protection class
★ °/mm/m Dual units switch function
★ Filter frequency optional
★ Three kinds of measurement mode selectable (radian, angle, mm)
▶APPLICATION
★ Building construction
★ Automobile four-wheel testing
★ Road slope
★ Machinery installation
★ Piping installation
★ Industrial platform
★ Turntable testing
★ Pan unit angle detection
★ Production jig
▶TECHNICAL DATA
PARAMETER
DMI810
DMI820
UNIT
Meausre Axis
Single Axis
Daul Axis
Axis
Angle Measure Range
±15 °
±30 °
±15 °
±30 °
°
Angle Measurement Accuracy(Full Range)
<0.005
<0.01
<0.005
<0.01
°
Angle Measure Resolution
0.001
0.001
0.001
0.001
°
Mm/m Measure Range
267
577
267
577
mm/m
Mm/m Measure Accuracy
0.1
0.2
0.1
0.2
mm/m
Mm/m Measure Resolution
0.02
0.02
0.02
0.02
mm/m
Repeatability
0.003
0.003
0.003
0.003
°
Measurement Mode
Angle,Degree/Minute/Second,Mm/m Three modes can be set
Working Temperature
-10°~ +70℃
Working Humidity
85%RH
Power Supply
3.7V Charging Lithium Battery
Ideal Charging Time
5h
Battery Continuous Working Time
11h
Equipped With Pc Software
Vc Software
Data Output Signal
USB2.0 (Virtual Serial Device)
Connect Plug In
Standard Usb Connector, Rechargeable
Shock Resistance
10g@11ms,3 Axial Direction (Half Sinusoid)
Shock Impact
10grms,10~100Hz
Waterproof Grade
IP54
Material
Aluminum Alloy Anodizing
Lcd
64 True Colors Night Vision Display Screen
Lcd Visible Area Size
L57.6*W43.2mm
Size
L109*W77*H27mm
Weight
≤350g
Order Process :
Before order pls contact us for confirm detailed informaiton such
as model ,price ,lead time ...etc .
