    DMI420 LCD Rechargeable 2 Axis Digital Inclinometer Magnetic Adsorption

    Ask Lasest Price
    Brand Name : RION
    Model Number : DMI420/410
    Supply Ability : 1000 Piece/Pieces per Week digital inclinometer in warehouse
    Price : $217.00/Pieces >=1 Pieces
    Certification : CE
    Delivery Time : 5-10 work days
    Payment Terms : T/T, Paypal
    • Product Details
    • Company Profile

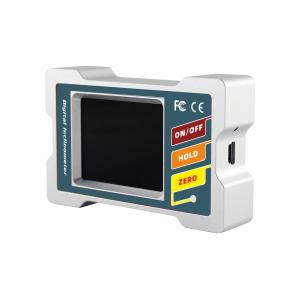

    DMI420 LCD Rechargeable 2 Axis Digital Inclinometer Magnetic Adsorption

    DMI420 LCD Rechargeable 2 Axis Digital Inclinometer Magnetic Adsorption

    DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industy angle controling and measuring.Thecore of this product is using the micro-mechanical control principle, dual-core measurement unit,can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI420 is a uniaxial 360deg measurement, resolution 0.01 °,accuracy <0.1 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI420 (SMI420) with the use of separate measurement, used in combination with the Division LCA series tiltsensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI420 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !


    Features:

    • Accuracy:0.05°
    • Repeatability:0.05° Resolution:0.01°
    • Measuring range:±180°
    • Fast response
    • Data hold on function
    • Absolute/Relative measurement can switch
    • Both sides and bottom can measure
    • Double benchmark strong magnet installation
    • Working Temperature : -20°~ +65°C
    • Auto-angle interleaved compensation function
    • Auto temperature drift compensation
    • User can calibrate by himself
    • Built-in rechargable industy battaries
    • Night vision fours colors screen
    • IP54protection class
    • °/mm Dual units switch funciton
    • 100g High anti-impact

    Application :

    • Road slope
    • Machinery installation
    • Piping installation
    • Industrial platform
    • Turntable testing
    • Cloud deck angle detection
    • Production jig
    • Medical instruments
    • Building construction Automobile four-wheel testing
    PARAMETERSDMI410 DMI420
    Angle measure range±180 °±90 °
    Length measure range0~±999.9mm/m0~±999.9mm/m
    Measure axisSingle axisDual axis
    Angle measure accuracy0.05 °(full range)0.05 °(full range)
    Angle measure resolution0.01°0.01°
    Length measure accuracy0.9mm/m(full range)0.17mm/m(full range)
    Length measure resolution0.17mm/m0.1mm/m
    LCD visible area sizeL40*W32mm
    Working temperature-10℃~ +70℃
    Working humidity85℃
    Power supply3.7V Charging Lithium battery
    Ideal charging time3h
    Battery continuous working time8h(±0.5)
    Data output signalStandard 5Pin USB connector
    Anti-vibration10g@11ms,3 Axial Direction (Half Sinusoid)
    Impact resistance10grms,10~100Hz
    Weight125g
    Waterproof levelIP54
    MaterialMetal aluminum
    SizeL83*W53*H19.2mm

    DMI420 LCD Rechargeable 2 Axis Digital Inclinometer Magnetic Adsorption
