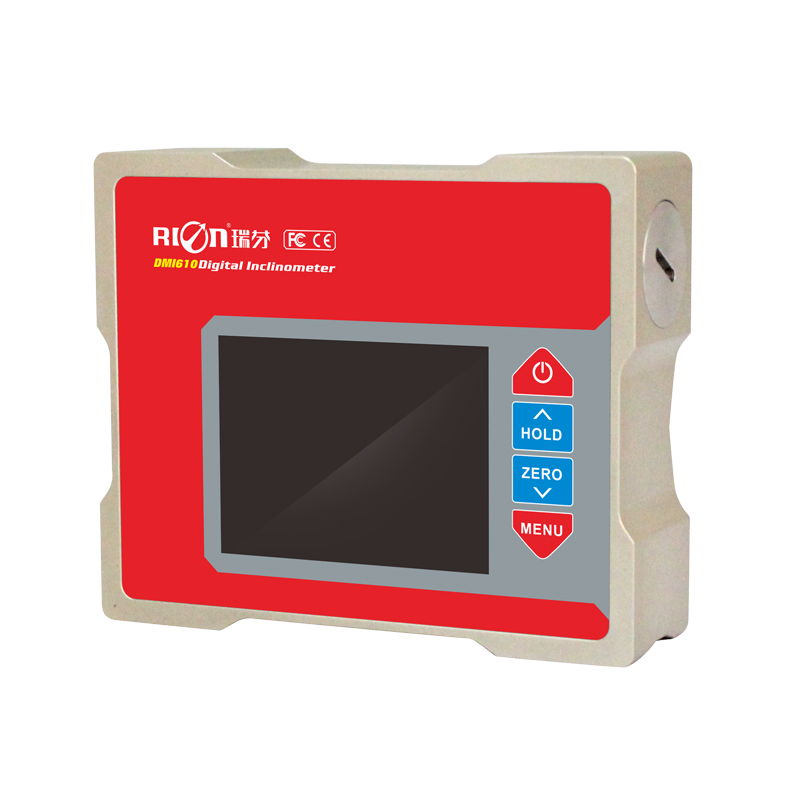

DMI610 1.5V High Accuracy Digital Inclinometer Angle Position Level Angle Finder

Shenzhen Rion Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap DMI610 1.5V High Accuracy Digital Inclinometer Angle Position Level Angle Finder from wholesalers

    Buy cheap DMI610 1.5V High Accuracy Digital Inclinometer Angle Position Level Angle Finder from wholesalers
    • Buy cheap DMI610 1.5V High Accuracy Digital Inclinometer Angle Position Level Angle Finder from wholesalers
    • Buy cheap DMI610 1.5V High Accuracy Digital Inclinometer Angle Position Level Angle Finder from wholesalers
    • Buy cheap DMI610 1.5V High Accuracy Digital Inclinometer Angle Position Level Angle Finder from wholesalers

    DMI610 1.5V High Accuracy Digital Inclinometer Angle Position Level Angle Finder

    Ask Lasest Price
    Model Number : DMI610-30
    Brand Name : RION
    Supply Ability : 30000 Set/Sets per Month
    Price : $547.00/Sets
    Certification : CE, RHOS
    Payment Terms : T/T, Paypal
    Delivery Time : 7 days for samples
    • Product Details
    • Company Profile

    DMI610 1.5V High Accuracy Digital Inclinometer Angle Position Level Angle Finder

    DMI610 1.5V High Accuracy Digital Inclinometer Angle Position Level Angle Finder​

    Product Description

    Features:


    ★ Best accuracy:<0.02°

    ★ Data store function

    ★ Repeatability:0.004°

    ★ Maximum measure range:±90°

    ★ Angle resolution:0.001°

    ★ Absolute/Relative measurement can switch

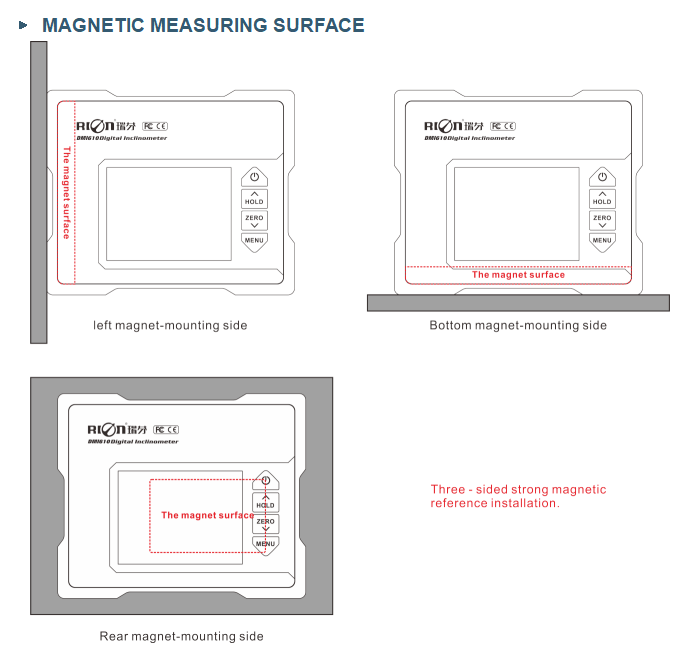

    ★ Both sides and bottom can measure

    ★ User can calibrate ZERO by himself

    ★ Night vision fours colors screen

    ★ Three kinds of measurement mode selectable (radian, angle, mm/m)

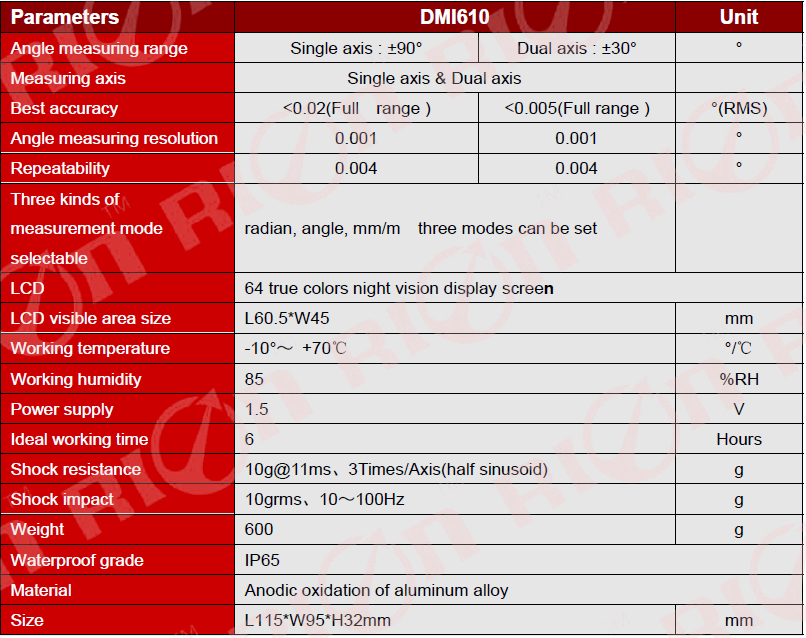

    TECHNICAL DATA

    DMI610

    PARAMETERS
    Angle measure range±90°±30°
    Measure axisSingle axisDual axis
    Best accuracy(RMS)<0.02°(Full range)<0.005°(Full range)
    Angle measure resolution0.001°0.001°
    Repeatability0.004°0.004°
    Measurement moderadian, angle, mm/m three modes can be set
    LCD64 true colors night vision display screen
    LCD visible area sizeL60.5*W45mm
    Working temperature-10℃~+70℃
    Working humidity85%RH
    Power supplyOne 2A AA battery or AA NiMH rechargeable battery
    Ideal working time6Hours
    Shock resistance10g@11ms,3 Axial Direction (Half Sinusoid)
    Shock impact10grms,10~100Hz
    Weight600g
    Waterproof gradeIP65
    MaterialAnodic oxidation of aluminum alloy
    SizeL115*W95*H32mm
    PrecautionsIn order to achieve the highest measurement accuracy, please set the latitude information of the local city, and it will be automatically saved after setting. (Refer to the third point of the third point in the main interface function introduction of this specification)





    Packaging & Shipping

    • Packaging: carton with sponge
    • Delivery time: within 7 business days for common order after we receive the full payment
    • Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.
      Our Services

    Pre-sale service

    • Evaluate your application, recommend the most suitable item;
    • Make you fully understand the products, usage and maitenance;
    • Answer all your questions, and let you have no doubt before make any decision;
    • Adjust, revise or redesign our products to consist with the application(for customized service);

    Sales service

    • Recommend the best payment term and shipping term for you;
    • Make official quotation and PI with company Stamp;
    • Keep you posted about the products producing;
    • Send exactly requried products on time;
    • Provide tracking NO. and inform you when products leave factory and arrive destination;

    Post-sale service

    • Instruct products connection, installation and application;
    • if anything happen to products(barely will), engineer will evaluate the problem, solve the problem or exchange malfunction item for free, make sure you get the best solution and service.
    • Keep tracking the products usage and ask for suggestion and advice.
      FAQ
    • How to choose suitable item: bowse our webiste and choose products by catalog, or contact us directly by email, skype, TM.
    • How to buy: We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
    • How to ship: by DHL, Fedex, UPS, EMS, TNT and ARAMEX Express mainly, we have long term and reliable logistic cooperator to ensure the safety and cost-saving
    • How to apply: We provide instruction manual, software and online service to instuct you to connect, install, use and maintain our products.
    • What if anything happen to products: contact us, we will evaluate the problem and instruct you, exchange the wrongly purchased item or fix the malfunction item for free...till you get the best solution.
    • What if no suitable item to be found: customerized service is available.
    • How to cooperate: we offer technical support, products info, samples, favorable terms&condition and sales support in concerned region.
