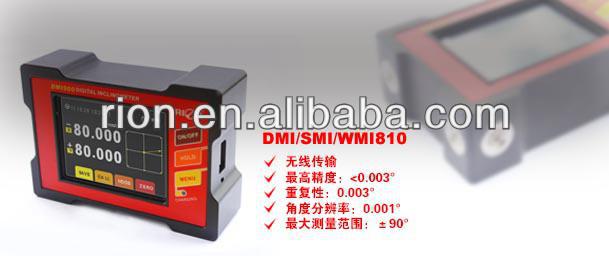

DMI810 Multi Axis 0.1mm Magnetic Digital Level And Angle Finder 100Hz 4H Scalability

Technical data

General Description

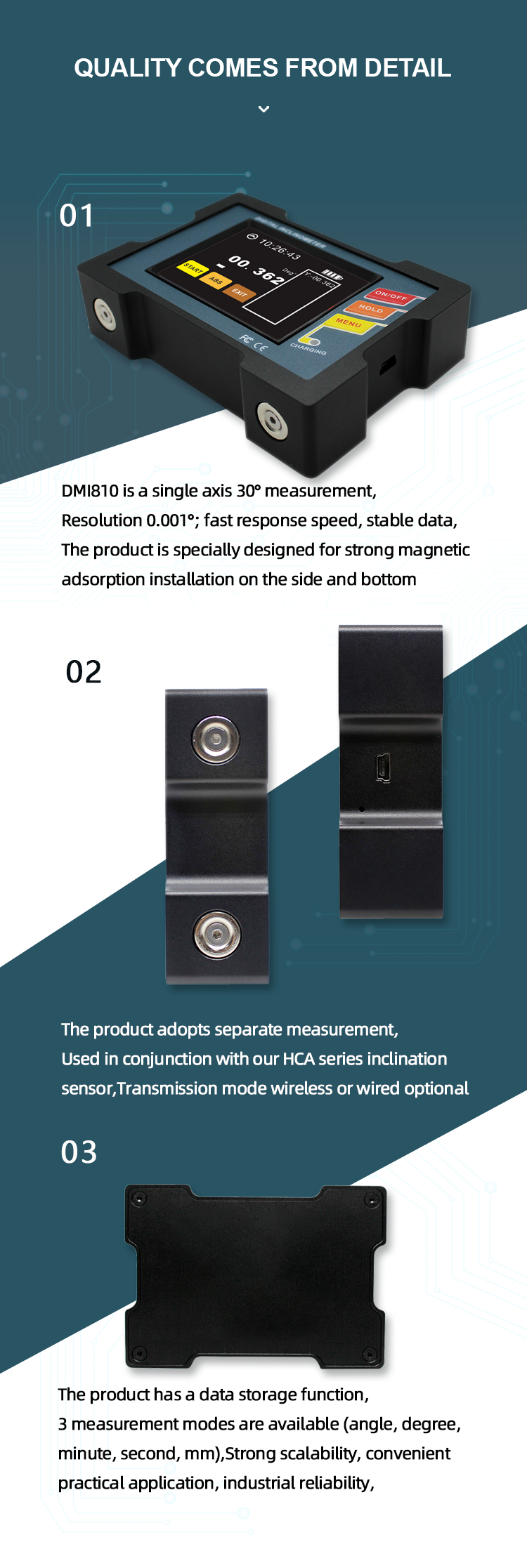

DMI820 is a digital display inclinometer which took RION company three years to develop professional for various industry angle controling and measuring.The core of this product is using the micro-mechanical control principle, dual-core measurement unit, can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI820 is a uniaxial 90deg measurement, resolution 0.001 °,the highest accuracy <0.005 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI820 (SMI820) with the use of separate measurement, used in combination with the Division HCA series tilt sensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI820 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market.

Features:

• Best accuracy:<0.005°
• Repeatability:0.003°
• Angle resolution:0.001°
• Maximum measure range:±30°
• User can set the alarm value by himself
• Data store function
• Absolute/Relative measurement can switch
• Both sides and bottom can measure
• Double benchmark strong magnet installation
• Working Temperature : -10°～ +70℃
• Auto-angle interleaved compensation function
• Auto temperature drift compensation

Application :

• Building construction
• Automobile four-wheel testing
• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Pan unit angle detection
• Production jig
• Medical instruments

• Packaging: carton with sponge
• Delivery time: within 7 business days for common order after we receive the full payment
• Shipping time: 3-5 work days by DHL/UPS/FEDEX/TNT; 5-7 work days by EMS.

Pre-sale service

• Evaluate your application, recommend the most suitable item;
• Make you fully understand the products, usage and maitenance;
• Answer all your questions, and let you have no doubt before make any decision;
• Adjust, revise or redesign our products to consist with the application(for customized service);

Sales service

• Recommend the best payment term and shipping term for you;
• Make official quotation and PI with company Stamp;
• Keep you posted about the products producing;
• Send exactly requried products on time;
• Provide tracking NO. and inform you when products leave factory and arrive destination;

Post-sale service

• Instruct products connection, installation and application;
• if anything happen to products(barely will), engineer will evaluate the problem, solve the problem or exchange malfunction item for free, make sure you get the best solution and service.
• Keep tracking the products usage and ask for suggestion and advice.

• How to choose suitable item: bowse our webiste and choose products by catalog, or contact us directly by email, skype, TM.
• How to buy: We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
• How to ship: by DHL, Fedex, UPS, EMS, TNT and ARAMEX Express mainly, we have long term and reliable logistic cooperator to ensure the safety and cost-saving
• How to apply: We provide instruction manual, software and online service to instuct you to connect, install, use and maintain our products.
• What if anything happen to products: contact us, we will evaluate the problem and instruct you, exchange the wrongly purchased item or fix the malfunction item for free...till you get the best solution.
• What if no suitable item to be found: customerized service is available.
• How to cooperate: we offer technical support, products info, samples, favorable terms&condition and sales support in concerned region.
